The YY10 is a solid body electric guitar model introduced by Ibanez for 2020. It is produced in Indonesia and is also referred to as the YYM10.

The YY10 is the first signature guitar model for Yvette Young, frontwoman of the American math rock band Covet. Young is just the second female artist with a signature Ibanez guitar, joining Nita Strauss.

The YY10 features an alder Talman body bolted to a U-shaped maple neck with a 22-fret maple fingerboard with black dot position markers and luminescent side dots. Components include a vintage-style six-screw Wilkinson WV6-SB, a set of three Seymour Duncan Five-Two single coil pickups mounted in a white pickguard, a bone nut, and Gotoh locking tuning machines.

The neck style was renamed from "U" to "YY" for 2021, but the dimensions are unchanged.

The guitar comes with a set of decals designed by Young.

Specifications

Specifications for YY10
Model name: YY10
Year(s) produced: 2020–2021
Sold in: Asia & Africa / China / Europe / Japan / North & South America and Oceania / USA
Made in: Indonesia
Finish(es): Slime Green Sparkle (SGS)
Body
Body type:
Solid body
Body material:
Alder
Neck joint:
AANJ
Bridge:
Wilkinson WV6-SB tremolo (10.8mm string spacing)
Pickguard:
3-ply: white/ black/ white
Knob style:
Plastic top hat (white)
Hardware color:
Chrome
Neck
Neck type:
2020: U (YY)
2021: YY
Neck material:
1-piece maple
Scale length:
648mm/ 25½"
Fingerboard material:
Maple
Fingerboard inlays:
Black dot
Luminescent side dots
Frets:
22 / medium
Nut:
Bone (41mm)
Machine heads:
Gotoh SG381 MG-T locking
Electronics/ Strings
Pickup configuration:
SSS
Bridge pickup:
Seymour Duncan Five Two bridge (S) passive
Middle pickup:
Seymour Duncan Five Two middle (S) passive
Neck pickup:
Seymour Duncan Five Two neck (S) passive
Controls:
Master volume / master tone / 3-way toggle pickup selector
String gauge (factory):
.011/.014/.018/.030/.042/.052 (D'Addario EXL116)

Images

Additional details
SSS 5-way switching.png

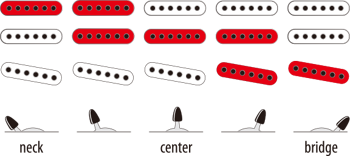

Pickup switching diagram
Controls VT5.png
Control layout
2021 YY10 SGS 1P 01 back.jpg

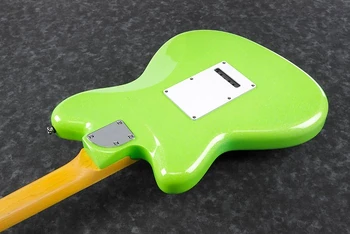

Rear of body
YY10 sticker.png
Included decal set
