XPT750 RD

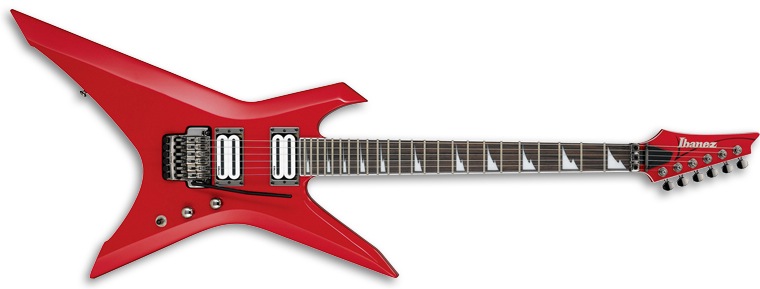

XPT750 Red Red copyright sprite

The XPT750 is a Xiphos series solid body electric guitar model introduced by Ibanez in 2009. It is part of the X series and was made in Indonesia.

The XPT750 features a neck through body construction with mahogany body wings attached to a maple and walnut neck with a 24-fret rosewood fingerboard with binding and reversed sharktooth position markers. Components include a pair of white DiMarzio D Activator-X pickups and an Edge III double locking tremolo bridge.

The XPT700 is a similar model with black pickups and different finishes.

The XPT750 was sold exclusively by US retailer Sam Ash and was discontinued after one year.

Specifications

Specifications for XPT750
Year(s) produced: 2009
Sold in: USA
Made in: Indonesia
Finish(es): Red (RD)
Body
Body type:
Solid body
Body material:
Mahogany wings
Neck joint:
Neck-thru
Bridge:
Edge III tremolo
Knob style:
Knurled metal dome
Hardware color:
Cosmo black
Neck
Neck type:
Wizard II
Neck material:
5-piece maple/ walnut
Scale length:
648mm/ 25½"
Fingerboard material:
Rosewood w/ binding
Fingerboard inlays:
Reversed sharktooth
Frets:
24 / jumbo
Nut:
Locking
Machine heads:
Ibanez die-cast
Electronics/ Strings
Pickup configuration:
HH
Bridge pickup:
DiMarzio D Activator-X (H) white
Neck pickup:
DiMarzio D Activator-X (H) white
Controls:
Master volume / master tone / 3-way toggle
String gauge (factory):
.009–.042

Images

Additional details
HH 3-way toggle
Pickup switching diagram
Controls VT3 inline
Control layout
