XPT700 09 RCM.gif

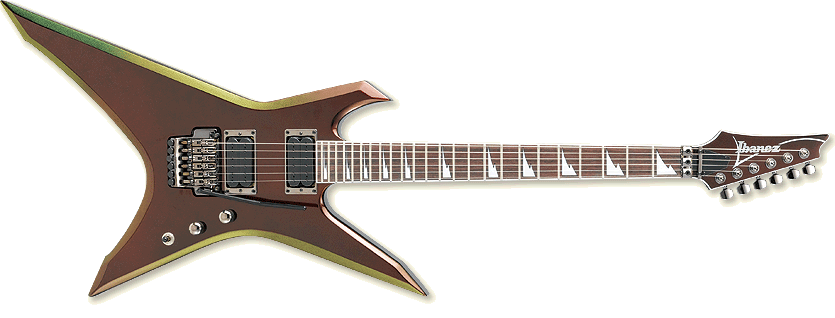

XPT700 Red Chameleon 2009–2011 (more images) Red copyright sprite.png

The XPT700 is a Xiphos series solid body electric guitar model introduced by Ibanez in 2007. It is a part of the Ibanez X series and the first model in the Xiphos sub-series. It was made in Indonesia

The XPT700 features a neck through body construction with mahogany body wings attached to a maple and walnut neck with a 24-fret rosewood fingerboard with binding and reversed sharktooth position markers. Components include a pair of DiMarzio D Activator pickups and an Edge III double locking tremolo bridge.

For 2009, the entire Xiphos line was visually updated with broader body bevels and new finishes. For 2011, the Wizard II neck was changed to a Wizard III.

Various new Xiphos models have been issued since 2007, including a hard-tail, a seven-string, a 27-fret model and a more affordable model. In 2009, a limited edition variant with DiMarzio D Activator-X pickups, the XPT750, was produced.

Specifications

Specifications for XPT700
Year(s) produced: 2007–2011
Sold in: Worldwide
Made in: Indonesia
Finish(es): Blue Chameleon (BCM) 2007–2008 / Black (BK) 2007–2009; 2011 / Iron Pewter (IPT) 2008 / White (WH) 2009–2010
Body
Body type:
Solid body
Body material:
Mahogany
Neck joint:
Neck-thru
Bridge:
Edge III tremolo
Knob style:
Knurled metal dome
Hardware color:
Cosmo black
Neck
Neck type:
2007–2010: Wizard II
2011: Wizard III
Neck material:
5-piece maple/ walnut
Scale length:
648mm/ 25½"
Fingerboard material:
Rosewood w/ binding
Fingerboard inlays:
Reversed sharktooth
Frets:
24 / jumbo
Nut:
Locking
Machine heads:
Ibanez die-cast
Electronics/ Strings
Pickup configuration:
HH
Bridge pickup:
DiMarzio D Activator (H)
Neck pickup:
DiMarzio D Activator (H)
Controls:
Master volume / master tone / 3-way toggle pickup selector
String gauge (factory):
.009–.042

Images

Additional finishes/ details

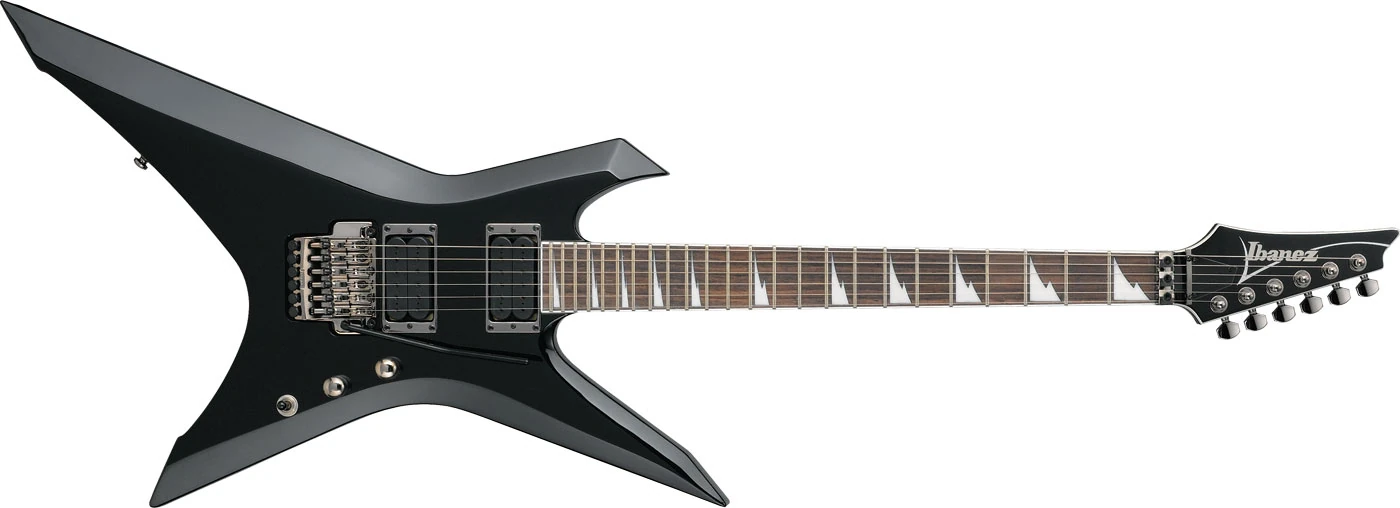

XPT700 BK.jpg
Black (2007–2008)

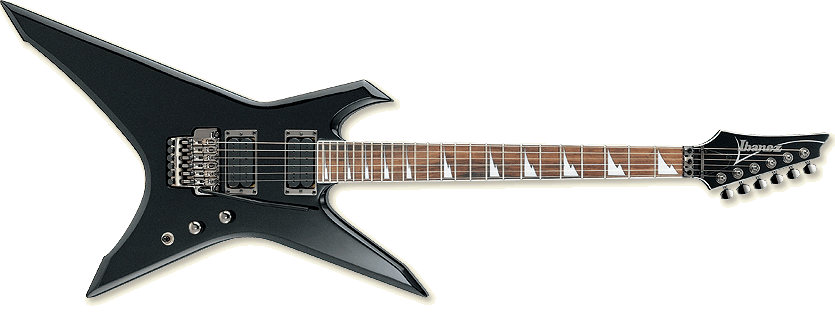

XPT700 BK 09.jpg
Black (2009 – 2011)
XPT700 BCM.jpg
Blue Chameleon (2007–2008)
XPT700 IPT.gif
Iron Pewter (2008)

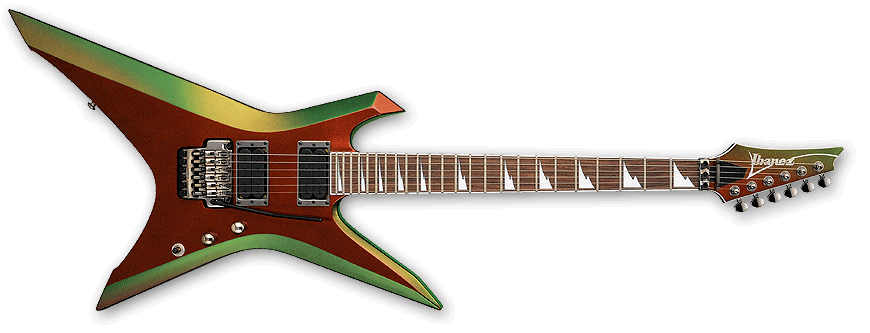

XPT700 RCM.gif
Red Chameleon (2007–2008)

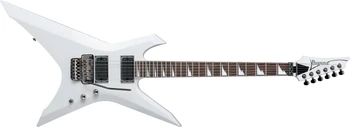

XPT700 WH.jpg
White (2009–2010)
HH 3-way toggle.png
Pickup switching diagram
Controls VT3 inline.png
Control layout

Video

Ibanez XPT700 Blue Chameleon 2007
