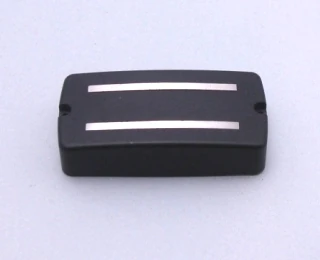

The VK pickups on the ADX120

VK pickups are a series of magnetic guitar pickups designed by Ibanez and produced by Ibanez and their suppliers.

These pickups were launched with the Arondite series in 2007. Another version was introduced in 2010 for the RGD series, these were replaced for 2011 with the similar "CAP-VK pickups".

List of VK pickups[]

VK1[]

VK1
Brand: Ibanez
Part no.: 3PU1HJH2
Year introduced: 2007
Discontinued after: 2007
Type: Passive
Construction: Humbucker
Position: Neck
Magnet: Alnico
Wiring: 2-conductor
Used in: ADC120, ADD120, ADX120
Description: The VK1 neck pickup is paired with the VK2 bridge. They feature alnico bar magnets rather than individual pole pieces. They "provide full lows and enhanced highs for metal and heavier rock styles"[1] and are described as "high output, yet with clarity in high end."[2] Non-standard size.


VK2[]

VK2
Brand: Ibanez
Part no.: 3PU1HJH1
Year introduced: 2007
Discontinued after: 2007
Type: Passive
Construction: Humbucker
Position: Bridge
Magnet: Alnico
Wiring: 2-conductor
Used in: ADC120, ADD120, ADX120
Description: The VK2 bridge pickup is paired with the VK1 neck. See VK1 for further description.


VK1-DT[]

VK1-DT Down Tunz
Brand: Ibanez
Part no.: 3PU3PA0017
Year introduced: 2010
Discontinued after: 2010
Type: Passive
Construction: Humbucker
Position: Neck
Magnet: Alnico V
Wiring: 4-conductor
Used in: RGD320
Description: The VK1-DT neck pickup is paired with the VK2-DT bridge. They are also referred to as VK-Down Tunz as they are specially designed for the long scale RGD series which is tuned a full step down. They feature alnico V bar magnets rather than individual pole pieces for "high output with high-end clarity".[3]


VK2-DT[]

VK2-DT Down Tunz
Brand: Ibanez
Part no.: 3PU3PA0018
Year introduced: 2010
Discontinued after: 2010
Type: Passive
Construction: Humbucker
Position: Bridge
Magnet: Alnico V
Wiring: 4-conductor
Used in: RGD320
Description: The VK2-DT neck pickup is paired with the VK1-DT bridge. They are also referred to as VK-Down Tunz as they are specially designed for the long scale RGD series which is tuned a full step down. See VK1-DT for additional details.


See also[]


Sources[]

  1. 2007 USA catalog (p. 25)
  2. ADC120 product page, Ibanez USA, archived October 2007
  3. RGD320 product page, Ibanez USA, archived February 2010
