1982 Ibanez V390-NT
V390 Natural "1982" (more images) Red copyright sprite

The V390 is a Vintage series acoustic guitar model introduced by Ibanez for 1978. It was hand-made in Japan. It s part of the Vintage Deluxe line.

The V390 features a dreadnought body with solid spruce top on rosewood back and sides. The round soundhole is trimmed with black and white multi-line rosette and a tortoise pickguard. The mahogany neck with adjustable truss rod has a 20-fret ebonized rosewood fingerboard with vine inlay position markers and a rosewood headstock. Components include a Tru-Tune saddle in an rosewood bridge, a bone nut, and chrome plated machine heads.

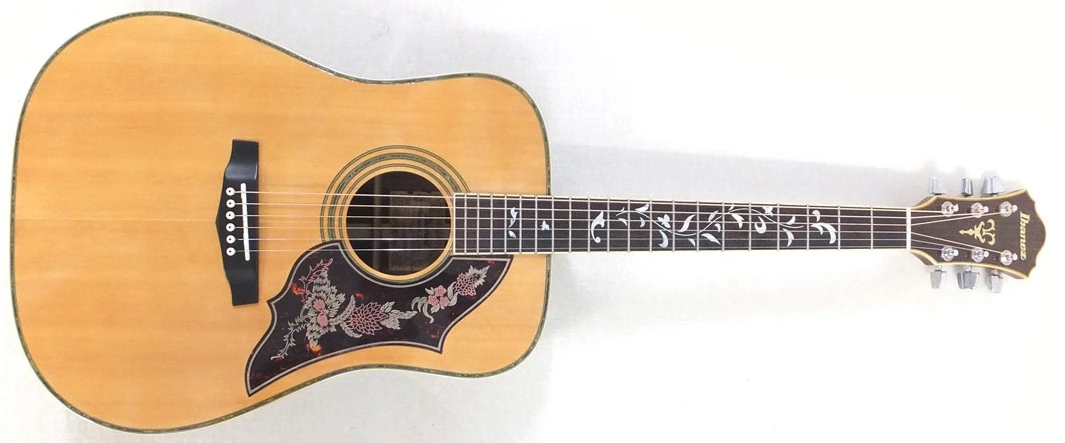

For 1982 the pickguard changed to a tortoise with floral ornate inlays.

The V360 is a similar model with pearloid soundhole rosettte and pearl dot fingerboard inlays. The V380 is a similar model with pearl-abalone rosette and pearl-abalone block fingerboard inlays.

The V390 was discontinued after 1982.

Specifications[]

Related content: Vintage Deluxe series | Vintage series | Models-icon
Specifications for V390
Name: V390
Year(s) offered: 1978-1982
Sold in: Europe / USA
Made in: Japan
Price: MSRP: US$:350 (1978) / US$:375 (1979) / US$:315 (1980)
Finishes: Natural (NT)
Body
Body type:
Acoustic
Body shape:
Dreadnought
Dimensions:
  Body length: 19¾"
  Width: 16"
  Depth: 4½"
Top:
  Material: Solid spruce
  Finish: Natural gloss
  Binding: black and white multi-line
Back/sides:
  Material: Rosewood
  Strip inlay: center black and white stripe
  Finish: laminated
Soundhole shape:
Round
Soundhole rosette:
Pearl/ abalone multi-line
Neck
Neck profile:
hand-shaped
Neck material:
1-piece mahogany
Neck joint:
dovetail
Scale length:
648mm/ 25½"
Fingerboard:
Ebonized rosewood
Inlays:
Vine
Frets:
20 / medium
Nut:
Bone (43mm)
Machine heads:
Die-Cast
Factory tuning:
1E,2B,3G,4D,5A,6E (E Std.)
Components
Bridge:
Rosewood
Bridge pins:
white w/ black dots
Saddle:
Tru-Tune (11mm string spacing)
Hardware color:
Chrome
Pickguard:
"1978-1981": tortoise
"1982": tortoise w/ floral ornate

Images[]

Additional details

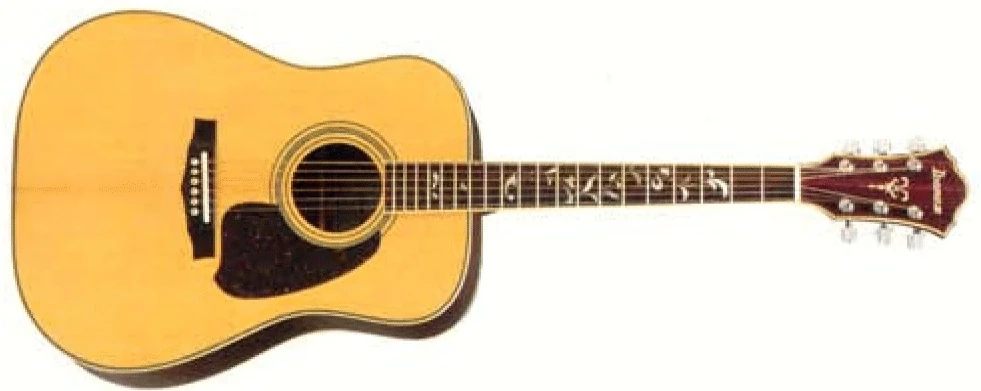

1981 V390-NT
1981-1982 (without pickguard inlays)
