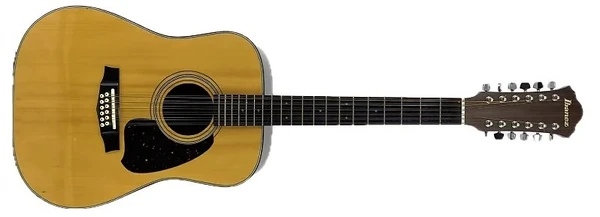

1980 V322-NT
V322 Natural Red copyright sprite

The V322 is a 12-string Vintage series acoustic guitar model introduced by Ibanez for 1978. It was hand-made in Japan.

The V322 features a dreadnought body with spruce top on rosewood back and sides. The round soundhole is trimmed with black and white multi-line rosette and a tortoise pickguard. The mahogany neck has a 20-fret ebonized rosewood fingerboard with pearl dot position markers and a rosewood headstock. Components include a Tru-Tune saddle in an rosewood bridge, a bone nut, and chrome plated machine heads.

The V302 is a similar model with mahogany back and sides. The V320 is a six-string version.

The V322 was discontinued after 1980.

Specifications[]

Related content: Vintage series | Models-icon
Specifications for V322
Name: V322
Year(s) offered: 1978-1980
Sold in: Europe / USA
Made in: Japan
Price: MSRP: US$:295 (1978) / US$:310 (1979)
Finishes: Natural (NT)
Body
Body type:
Acoustic
Body shape:
Dreadnought
Dimensions:
  Body length: 19¾"
  Width: 16"
  Depth: 4½"
Top:
  Material: Laminated spruce
  Finish: High gloss
  Binding: Black and white
Back/sides:
  Material: Rosewood
  Strip inlay: center black stripe
  Finish: High gloss
Soundhole shape:
Round
Soundhole rosette:
Black and white multi-line
Neck
Neck profile:
hand-shaped
Neck material:
1-piece mahogany
Scale length:
648mm/ 25½"
Fingerboard:
Ebonized rosewood
Inlays:
Pearl dots w/ white side dots
Frets:
20 / medium
Nut:
Bone (43mm)
Machine heads:
chrome covered
Factory tuning:
1E,2B,3G,4D,5A,6E (E Std.)
Components
Bridge:
Rosewood
Bridge pins:
Ivory w/ black dots
Saddle:
Tru-Tune (11mm string spacing)
Hardware color:
chrome plated
Pickguard:
tortoise
