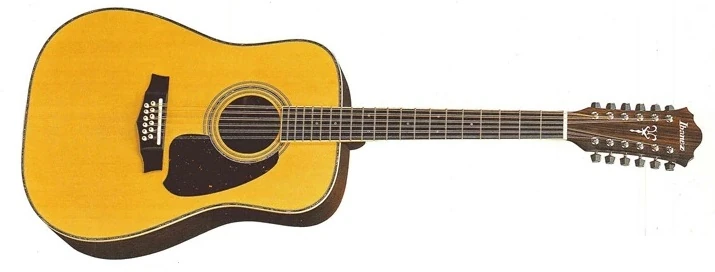

1982-83 V312-NT
V312 Natural (more images) Red copyright sprite

The V312 is an Vintage series 12-string acoustic guitar model introduced by Ibanez for 1982. It was made in Japan.

The V312 features a dreadnought body with spruce top on ovangkol or mahogany back and sides. The round soundhole is trimmed with pearloid black and white multi-line rosette and a tortoise pickguard. The mahogany neck with adjustable truss rod has a 20-fret rosewood fingerboard with pearl dot position markers and a matching headstock. Components include a True-tune saddle on a rosewood bridge, a bone nut, and chrome covered machine heads.

The V310 is a similar six-string model.

The V312 was discontinued after 1983.

Specifications[]

Related content: Vintage series | Models-icon
Specifications for V312
Name: V312
Year(s) offered: 1982—1983
Sold in: Europe / USA
Made in: Japan
Finishes: Black (BK) / Natural (NT) / Traditional Violin (TV)
Body
Body type:
Acoustic
Body shape:
Dreadnought
Dimensions:
  Body length: 19¾"
  Width: 16"
  Depth: 4½"
Top:
  Material: Spruce
  Finish: Natural gloss
  Binding: pearloid inlay
Back/sides:
  Material: "1982": Ovangkol: (NT finish only)
                "1983": 1-piece mahogany
  Strip inlay: wood marquetry stripe
  Finish: laminated
Soundhole shape:
Round
Soundhole rosette:
pearloid w/ black and white multi-line purfling
Neck
Neck profile:
hand-shaped
Neck material:
1-piece mahogany
Neck joint:
dovetail
Scale length:
648mm/ 25½"
Fingerboard:
Rosewood w/ black and white binding
Inlays:
Pearl dots w/ white side dots
Frets:
20 / medium
Nut:
Bone (43mm)
Machine heads:
chrome covered
Components
Bridge:
rosewood (11mm string spacing)
Bridge pins:
"1982": white w/ black dots
"1983": ivory w/ black dots
Saddle:
True-tune
Hardware color:
chrome
Pickguard:
tortoise
Factory tuning:
1E,2B,3G,4D,5A,6E (E Std.)

Images[]

Available finishes
1982 V312-BK
Black

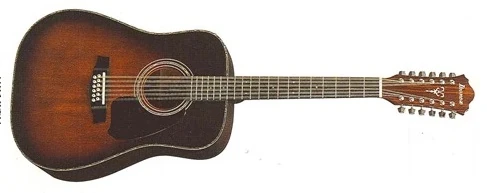

1982-83 V312-TV
Traditional Violin
