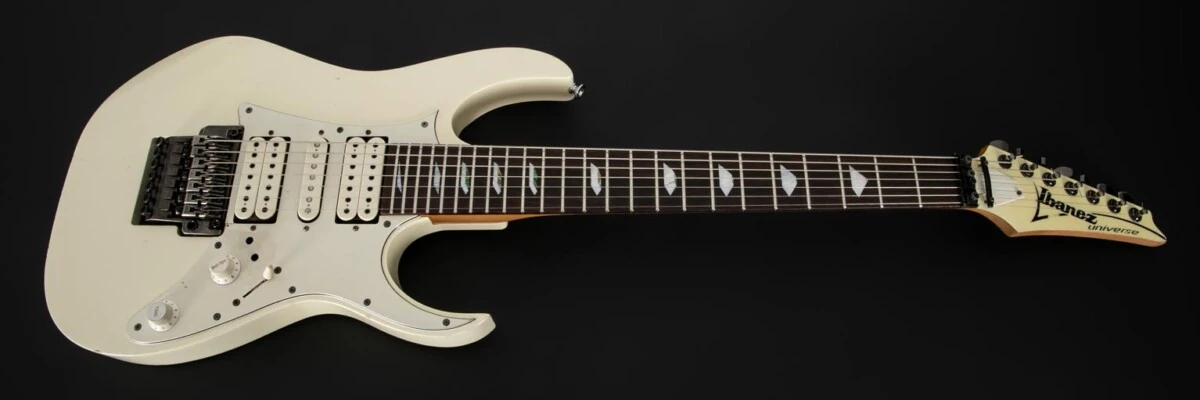

1990 Ibanez UV7P-WH
UV7P White (more images) Red copyright sprite

The UV7P is a seven string Universe series solid body electric guitar introduced by Ibanez in 1990. It is a signature model of American guitarist Steve Vai. It was made in Japan by FujiGen.

The UV7P features an American basswood body bolted to a maple neck with a 24-fret rosewood fingerboard with pearl and abalone disappearing pyramid position markers. Components include white DiMarzio Blaze II pickups mounted in a white pearloid pickguard with a pair of humbuckers flanking a single-coil, a double locking tremolo tremolo bridge, Gotoh tuning machines and white top hat knobs.

The initial UV7P models have an Edge 7 tremolo; these 1990 Universe models are the only guitars on which this tremolo has been offered. From 1991 that was replaced with the new Lo Pro Edge 7.

The UV7 is a similar model with a black finish and pickguard and green dot fretboard inlays. The UV77 is a similar model with a swirl finish and three color disappearing pyramid inlays.

The UV7P was discontinued after 1993 in all markets except Japan where it continued to be available through 1995.

Specifications[]

Related content: Universe series | Models-icon
Specifications for UV7P
Year(s) offered: 1990–1995
Sold in: Worldwide
Made in: Japan
Finish(es): White (WH)
Body
Body type:
Solid body
Body material:
American basswood
Neck joint:
Cutaway Heel
Bridge:
1990: Edge 7
1991–1995: Lo Pro Edge 7
Pickguard:
White pearloid
Knob style:
Plastic top hat (white)
Hardware color:
Cosmo black
Neck
Neck type:
UV
Neck material:
1-piece maple
Scale length:
648mm/ 25½"
Fingerboard material:
Rosewood
Fingerboard inlays:
Pearl/ abalone disappearing pyramid
Frets:
24 / Jim Dunlop #6140
Nut:
Top-Lok III
Machine heads:
Gotoh SG38
Electronics
Pickup configuration:
HSH
Bridge pickup:
DiMarzio Blaze II (H) white
Middle pickup:
DiMarzio Blaze II Single (S) white
Neck pickup:
DiMarzio Blaze II (H) white
Controls:
Master volume / master tone / 5-way lever pickup selector

Images[]

Additional details

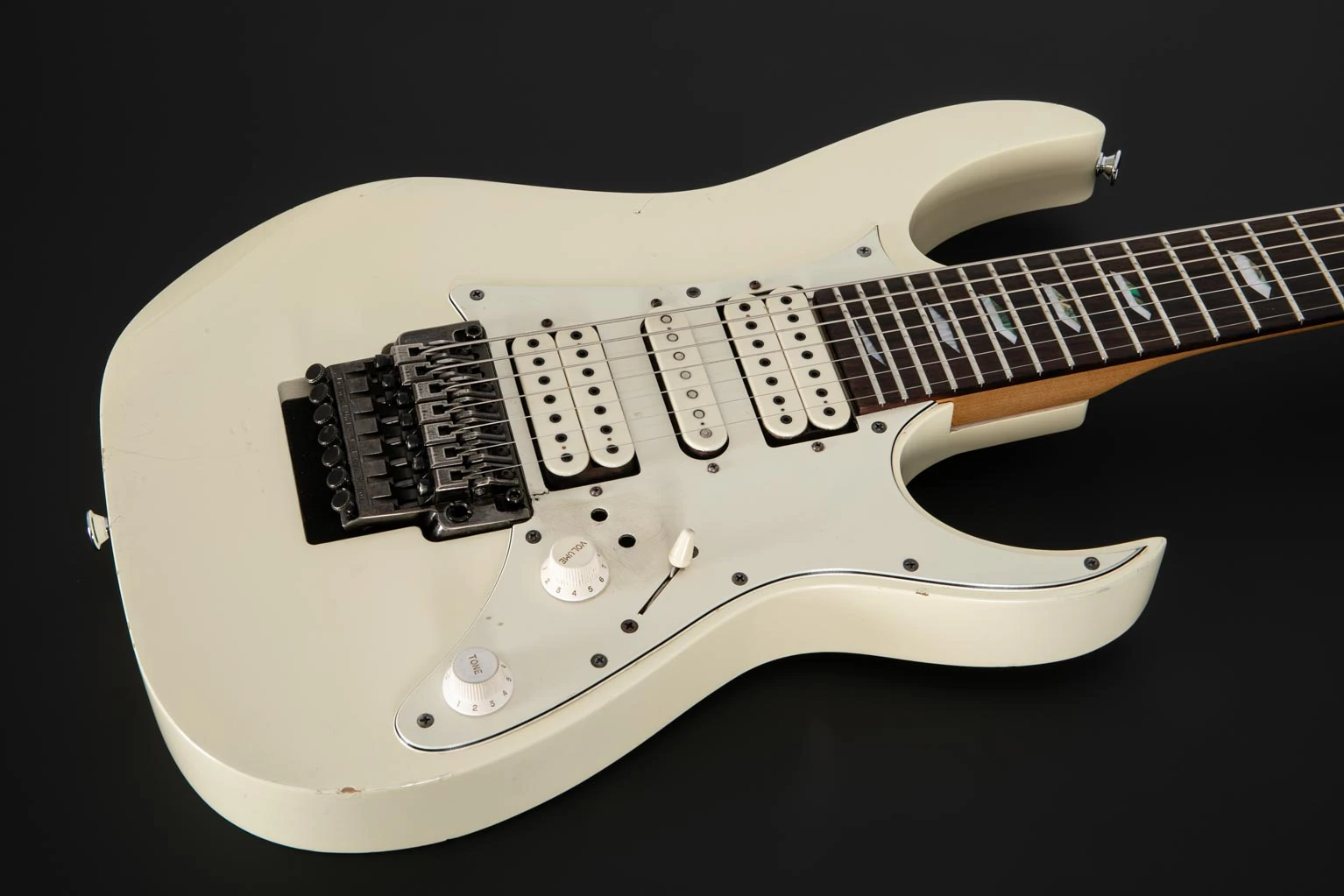

1990 Ibanez UV7P-WH front
Body (front)

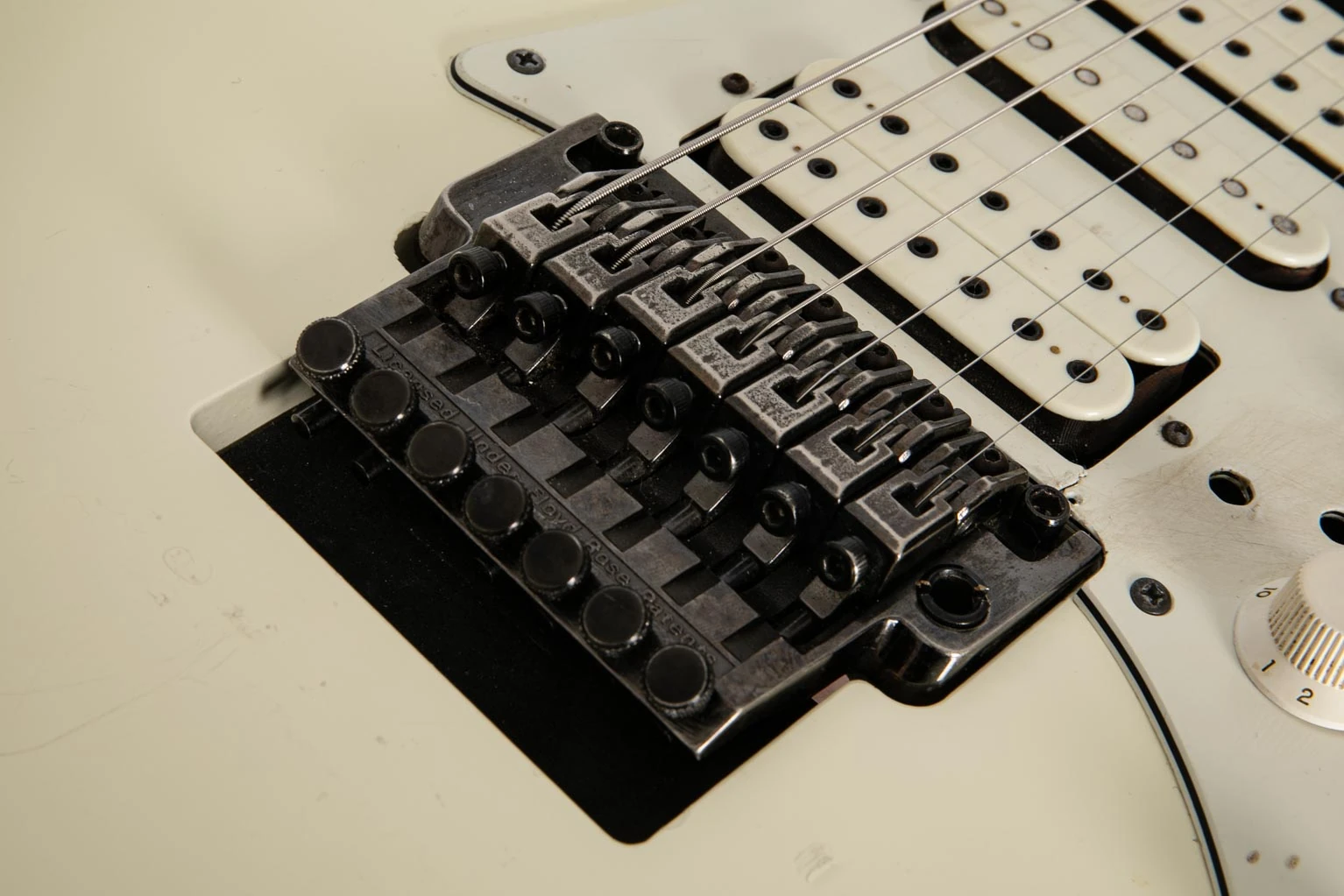

1990 Ibanez UV7P bridge
Edge 7 (bridge)

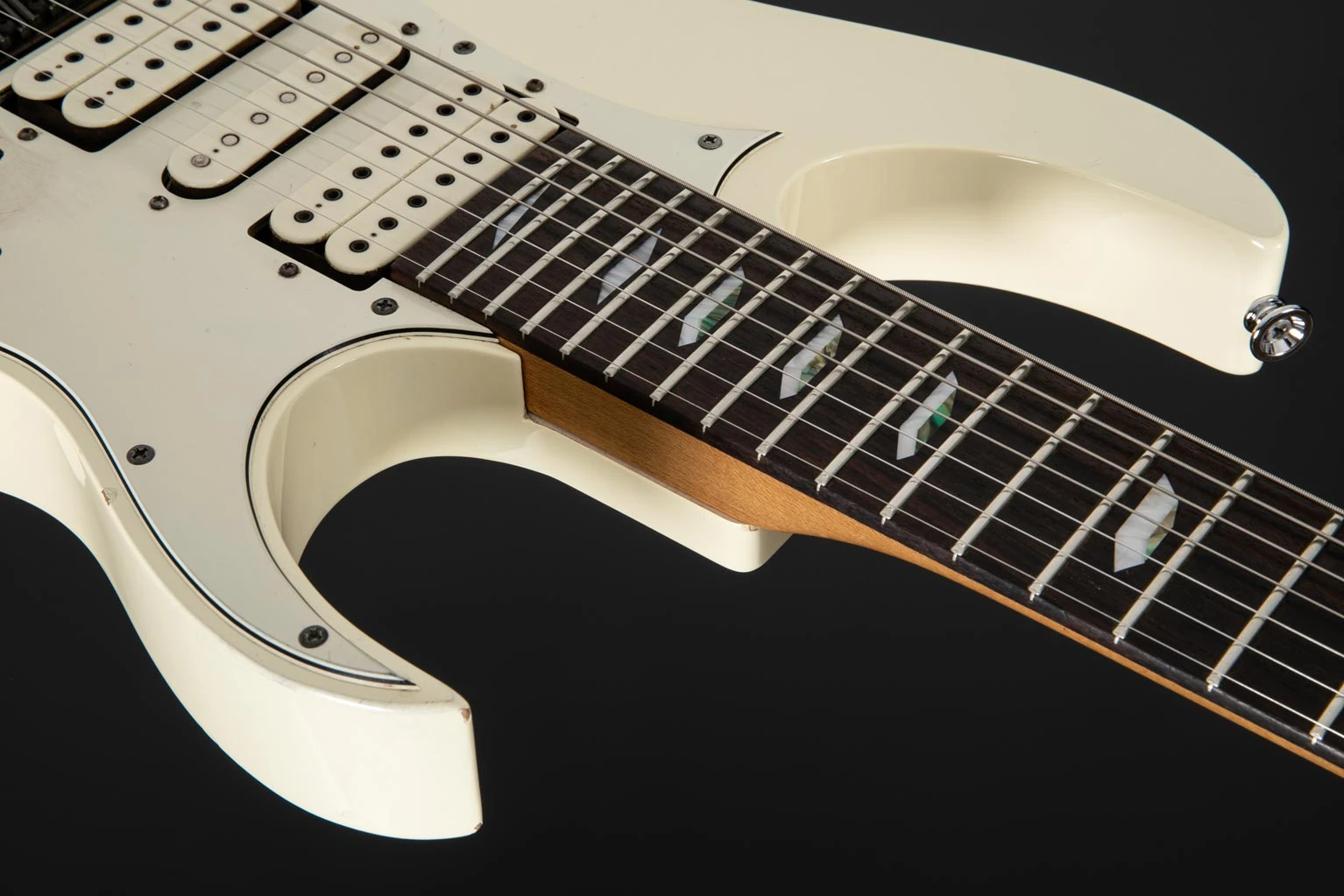

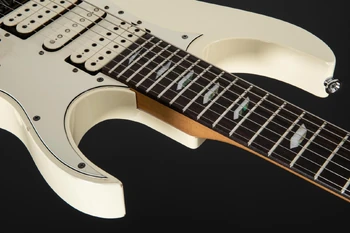

1990 Ibanez UV7P inlays
Fretboard inlays

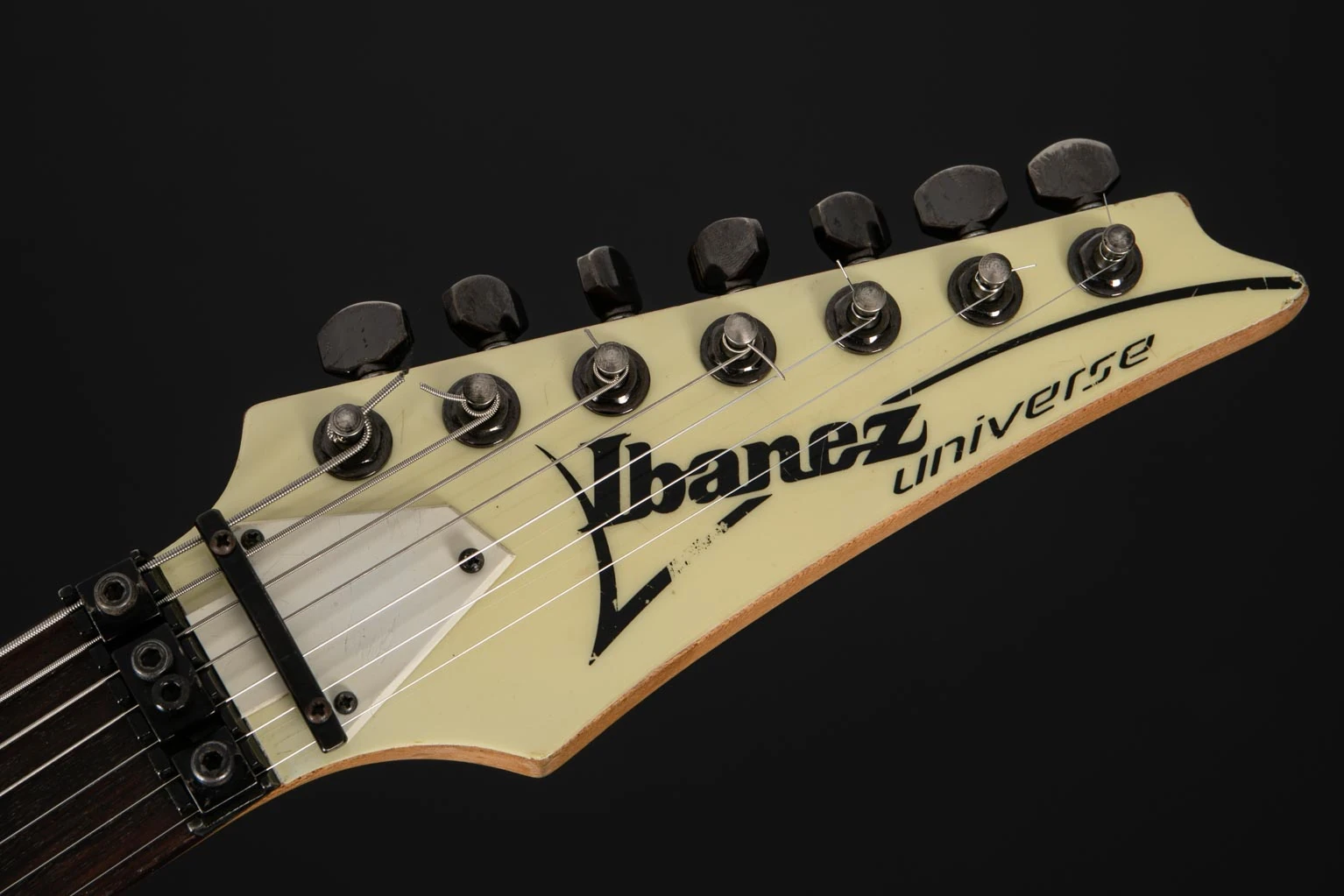

1990 Ibanez UV7P headstock
Headstock

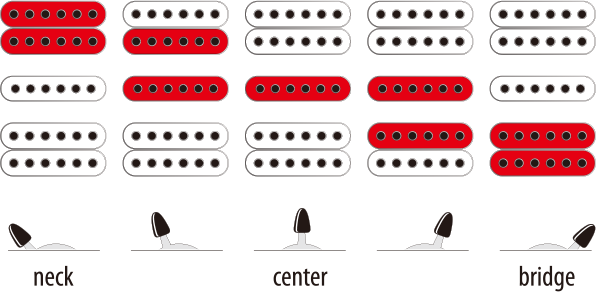

HSH 5-way both-splits
Pickup switching diagram
Controls VT5
Control layout
