2019 UEWT5E OPN 2Y 04

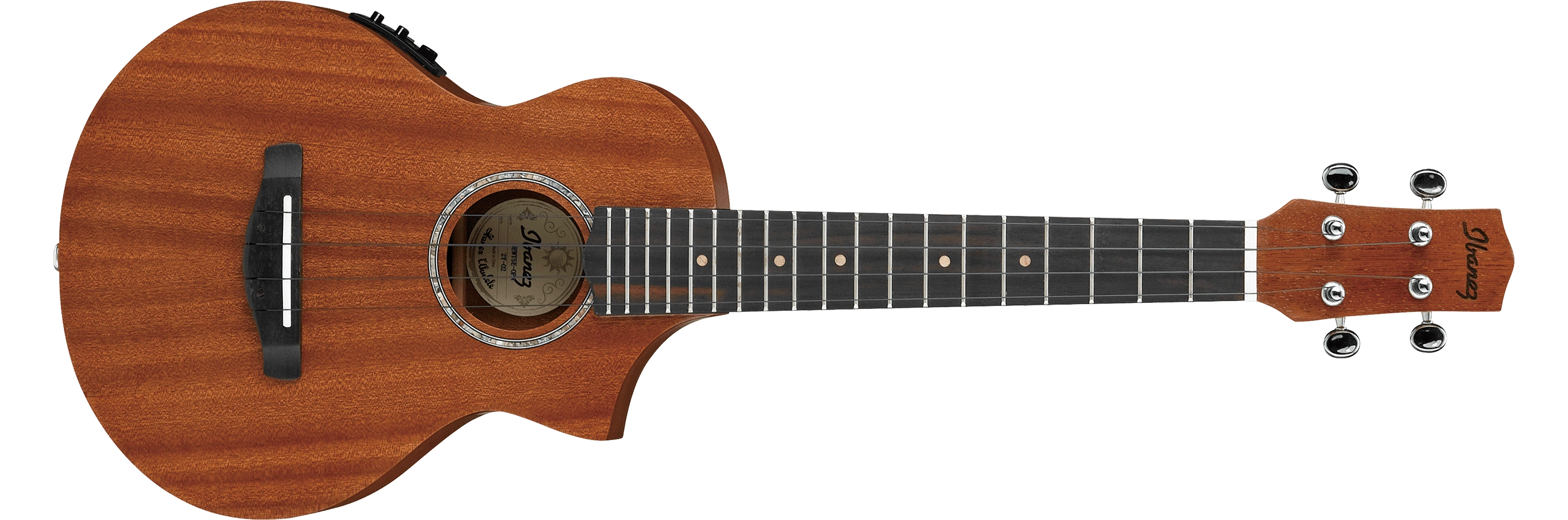

UEWT5E Open Pore Natural Red copyright sprite

The UEWT5E is an UEW series acoustic/ electric ukulele model introduced by Ibanez for 2016. It is made in China.

The UEWT5E features a compact tenor style EW body with a soft Florentine cutaway constructed of laminated mahogany top, back, and sides with an open pore finish. The round soundhole has an abalone rosette. The mahogany neck joins the body at the 14th fret and has a 19-fret rosewood fingerboard with maple dot position markers. Components include an ivory plastic saddle in a rosewood bridge, a plastic nut and chrome Ibanez open gear tuning machines.

The UEWT5E's electronics consist of an Ibanez under saddle pickup connected to a UK-300T preamp with onboard tuner powered by a pair of 2032 coin cells and feeding a ¼" endpin output jack.

For 2018 mahogany top, back and sides were changed to sapele, the rosewood fretboard and bridge were changed to purpleheart and the UK-300T preamp was replaced with the AEQ2U preamp. For 2019 the mahogany neck was replaced with okoume. The body length and depth were both very slightly increased for 2024.

The UEWT5 is a similar standard acoustic model. The UEWT14E is a similar model with ovangkol top, back and sides.

Specifications[]

Related content: UEW series | Models-icon
Specifications for UEWT5E
Name: UEWT5E
Year(s) offered: 2016–2024
Sold in: USA
Made in: China
Price: MSRP: US$239.99 (2016)[1]
Finishes: Open Pore Natural (OPN)
Body
Body type:
Acoustic
Body shape:
Compact tenor style EW body w/ soft Florentine cutaway
Dimensions:
  Body length: 2016–2023: 305mm/ 12"
                2024: 308mm/ 12⅛"
  Width: 238mm/ 9⅜"
  Depth: 2016–2023: 70mm/ 2¾" (60mm at neck joint)
                2024: 73mm/ 2⅞"
Top:
  Material:
    2016–2017: Mahogany (laminated)
    2018–2024: Sapele (laminated)
  Bracing: Fan
  Finish: Open pore
  Binding: Ivory
Back/sides:
  Material:
    2016–2017: Mahogany (laminated)
    2018–2024: Sapele (laminated)
  Finish: Open pore
Soundhole shape:
Round
Soundhole rosette:
Abalone
Neck
Neck profile:
UEWT
Neck material:
2016–2018: 1-piece mahogany
2019–2024: 1-piece okoume
Neck joint:
14th fret
Scale length:
432mm/ 17"
Fingerboard:
2016–2017: Rosewood
2018–2024: Purpleheart
Inlays:
Maple dot
Frets:
19 nickel silver
Nut:
Ivory plastic (37mm)
Machine heads:
Ibanez open gear
Electronics/ Components
Pickup:
Ibanez Under Saddle
Preamp:
2016–2017: Ibanez UK-300T w/ onboard tuner
2018–2024: Ibanez AEQ2U w/ onboard tuner
Output jack(s):
¼" endpin
Battery:
Two 2032 coin cells (3V)
Bridge:
2016–2017: Rosewood
2018–2024: Purpleheart (15mm string spacing)
Saddle:
Ivory plastic compensated
Hardware color:
Chrome
Strings (factory):
.0264/.0330/.0394/.0287 (Aquila Nylblack Tenor)
Factory tuning:
1A,2E,3C,4G

Images[]

Additional details

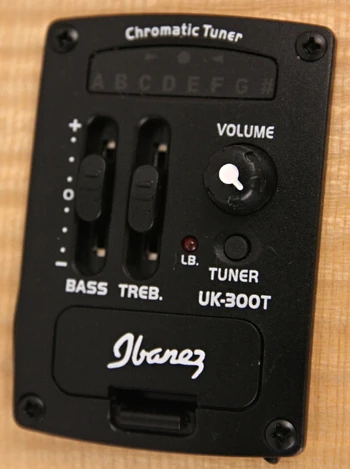

Ibanez UK-300T preamp
UK-300T preamp controls
Ibanez AEQ2U preamp diagram
AEQ2U preamp controls

Sources[]

  • 2017 USA catalog (p. 138)
  • 2018 USA catalog (p. 134)
  • UEWT5E product page 2019, Ibanez USA, archived December 2019
  • UEWT5E product page 2020, Ibanez USA, archived January 2020
  • UEWT5E product page 2021, Ibanez USA, archived January 2021
  • UEWT5E product page 2021, Ibanez USA, archived June 2022
  • UEWT5E product page 2023, Ibanez USA, archived January 2023
  • UEWT5E product page 2023, Ibanez USA, archived February 2024
