2019 UEW12E OPN 2Y 05

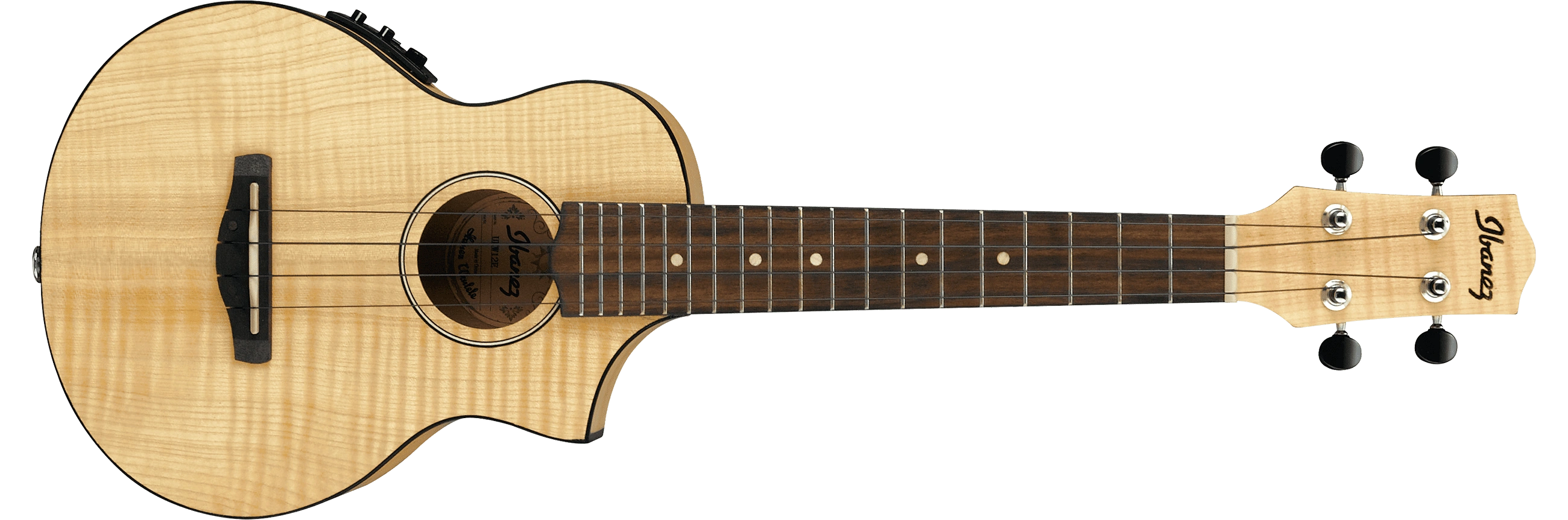

UEW12E Open Pore Natural (more images) Red copyright sprite

The UEW12E is an UEW series acoustic/ electric ukulele model introduced by Ibanez for 2015. It is produced in China.

The UEW12E features a concert style EW body with a soft Florentine cutaway constructed of laminated flamed maple top, back, and sides with an open pore finish. The round soundhole has a maple rosette. The mahogany neck joins the body at the 14th fret and has a 19-fret rosewood fingerboard with maple dot position markers. Components include an ivory plastic saddle in a rosewood bridge, a plastic nut and chrome Grover open gear tuning machines.

The UEW12E's electronics consist of an Ibanez under saddle pickup connected to a UK-300T preamp with onboard tuner powered by a pair of 2032 coin cells and feeding a ¼" endpin output jack.

For 2018 the rosewood fretboard and bridge were changed to purpleheart and the UK-300T preamp was replaced with the AEQ2U preamp. For 2019 the mahogany neck was replaced with okoume. A new Black Ice Flat finish was introduced in certain markets for 2023 and the body depth was very slightly increased.

The UEW12EJ is a similar spot model which is identical aside from its finish. Several similar models have been produced with different body materials: UEW15E (flamed mahogany), UEW14E (ovangkol), UEW13MEE (Macassar ebony), UEW13E (bocote) and UEW12ACE (acacia). The UEW36FME is a related model with abalone purfling and maple binding. The UEW5E is a related model with a mahogany or sapele body, an abalone rosette and Ibanez tuners.

Specifications[]

Related content: UEW series | Models-icon
Specifications for UEW12E
Name: UEW12E
Year(s) offered: 2015–2025
Sold in: Americas & Oceania 2015–2019, 2023–2025 / Asia & Africa 2015–2019, 2023–2025 / Europe 2015–2019, 2023–2025 / Japan 2021–2025 / USA 2015–2023
Made in: China
Price: MSRP: US$299.99 (2015)[1] / ¥ 36,000 (2024[2])
Finishes: Black Ice Flat (BIF) 2023–2025 / Open Pore Natural (OPN)
Body
Body type:
Acoustic
Body shape:
Concert style EW body w/ soft Florentine cutaway
Dimensions:
  Body length: 267mm/ 10½"
  Width: 210mm/ 8¼"
  Depth: 2015–2022: 70mm/ 2¾" (60mm at neck joint)
                2023–2025: 73mm/ 2⅞"
Top:
  Material: Flamed maple (laminated)
  Bracing: Fan
  Finish: Open pore
  Binding: Ivory
Back/sides:
  Material: Flamed maple (laminated)
  Finish: Open pore
Soundhole shape:
Round
Soundhole rosette:
Maple
Neck
Neck profile:
UEW
Neck material:
2015–2018: 1-piece mahogany
2019–2025: 1-piece okoume
Neck joint:
14th fret
Scale length:
382mm/ 15"
Fingerboard:
2015–2017: Rosewood
2018–2025: Purpleheart
Inlays:
Maple dot
Frets:
19 nickel silver
Nut:
Ivory plastic (35mm)
Machine heads:
Grover open gear w/ black knobs
Strings (factory):
2015–2023: .024/.032/.037/.026 (Ibanez/Aquila Nylblack)
2024–2025: .026/.032/.038/.027 (Ibanez/Aquila Nylblack)
Factory tuning:
1A,2E,3C,4G
Electronics/ components
Pickup:
Ibanez Under Saddle
Preamp:
2015–2017: Ibanez UK-300T w/ onboard tuner
2018–2025: Ibanez AEQ-2U w/ onboard tuner
Output jack(s):
¼" endpin
Battery:
Two 2032 coin cells (3V)
Bridge:
2015–2017: Rosewood
2018–2025: Purpleheart
Saddle:
Ivory plastic compensated (13mm string spacing)
Hardware color:
Chrome

Images[]

Other finish

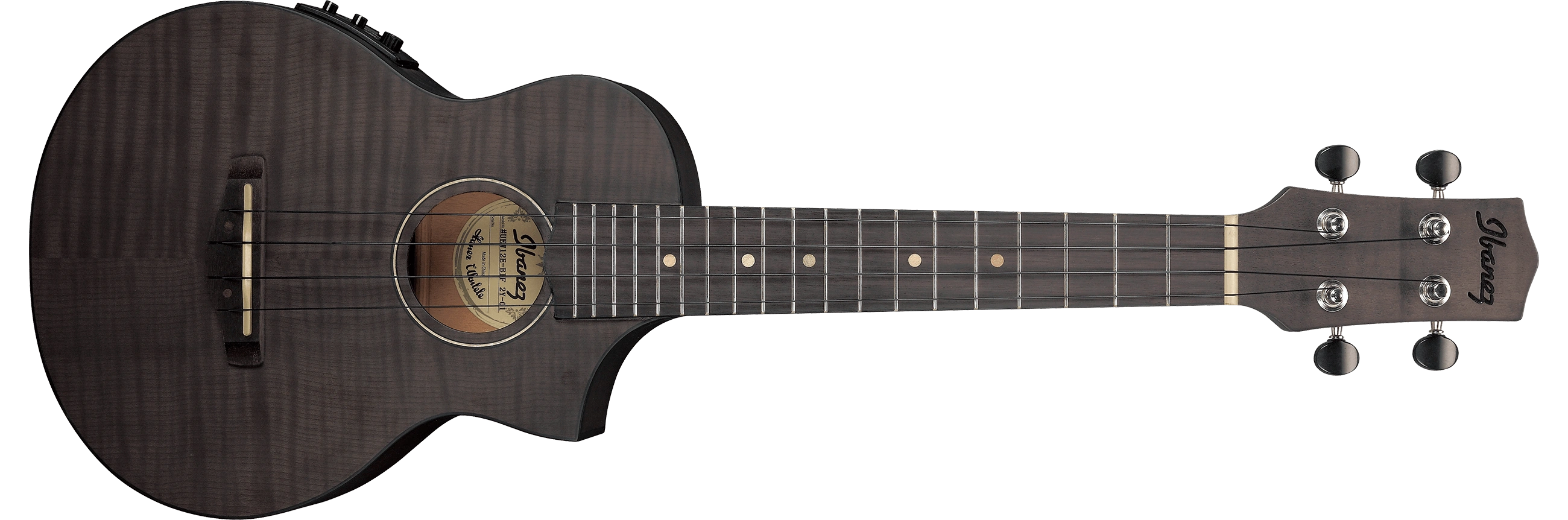

2023 UEW12E BIF 2Y 06
Black Ice Flat
Additional details

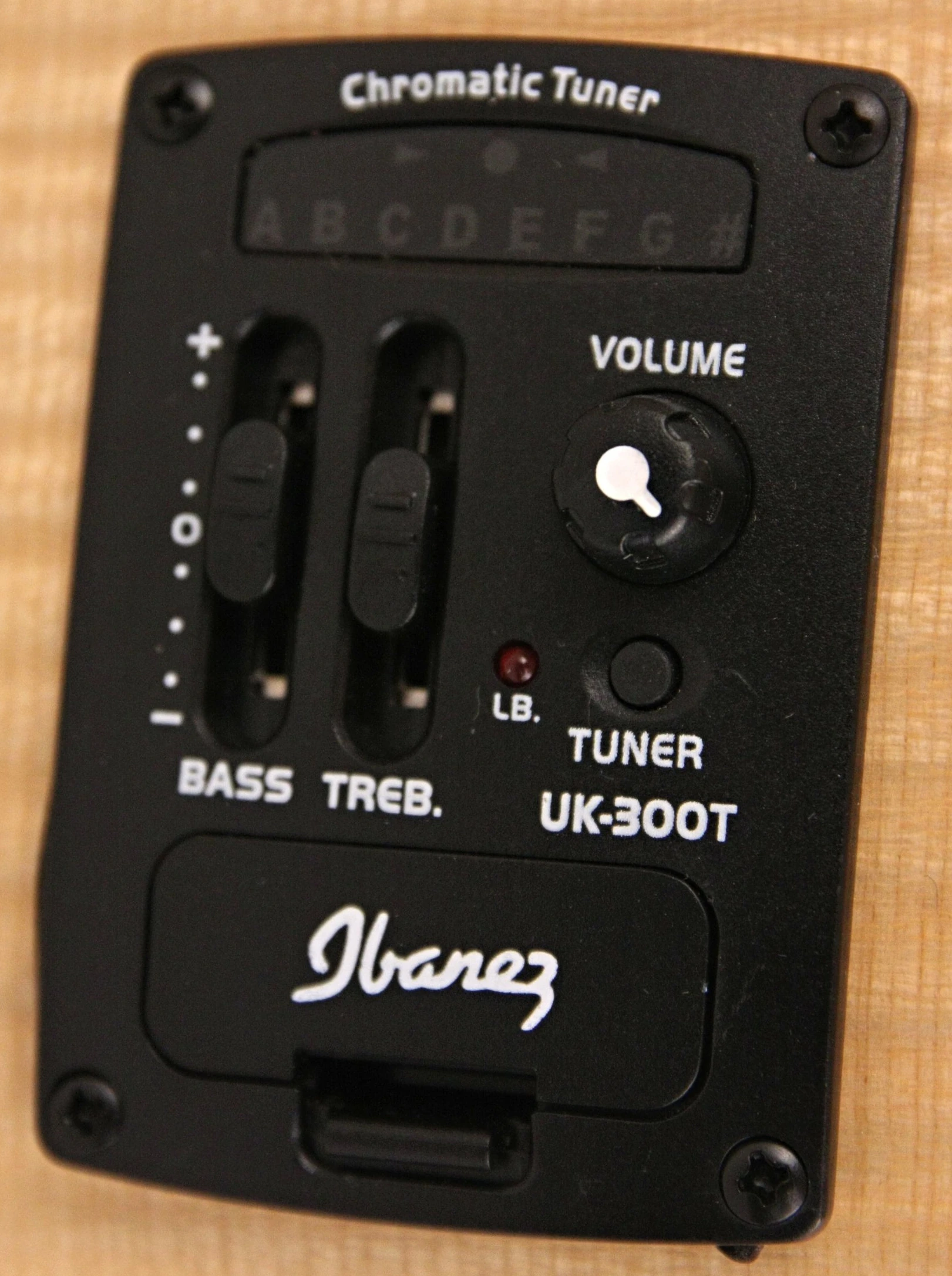

Ibanez UK-300T preamp
UK-300T preamp controls

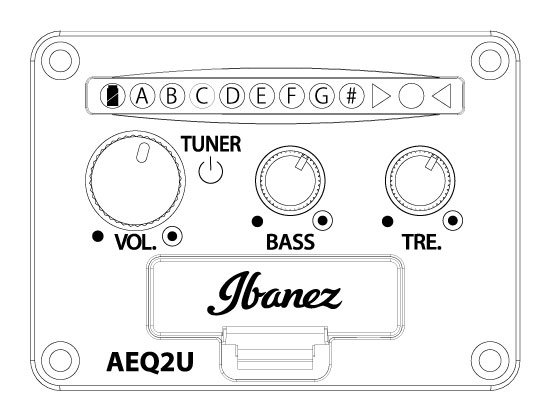

Ibanez AEQ2U preamp diagram
AEQ2U preamp controls
