2019 UEW12ACE OPN 2Y 02

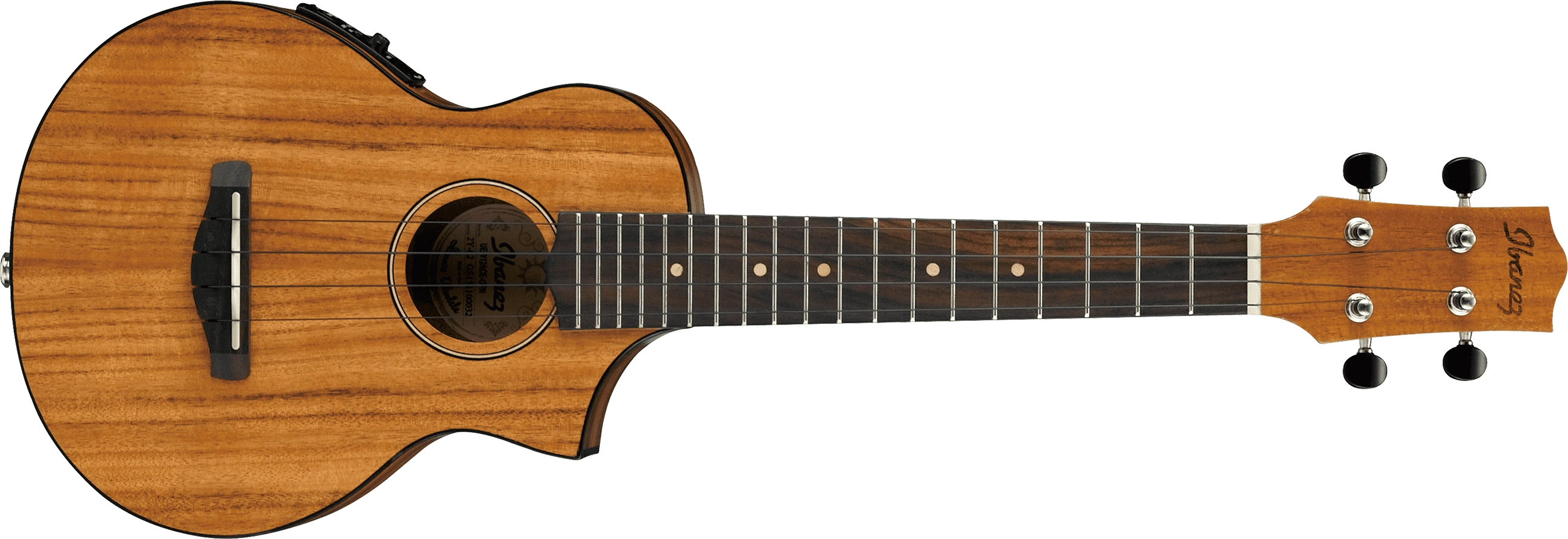

UEW12ACE Open Pore Natural Red copyright sprite

The UEW12ACE is an UEW series acoustic/ electric ukulele model introduced by Ibanez for 2015. It was made in China.

The UEW12ACE features a concert style EW body with a soft Florentine cutaway and a laminated acacia top on acacia back and sides with an open pore finish. The round soundhole has a maple rosette. It has a mahogany neck with a 19-fret rosewood fingerboard with maple dot position markers. Components include an ivory plastic saddle in a rosewood bridge, a plastic nut and chrome Grover open gear tuning machines. Electronics consist of an Ibanez under saddle pickup feeding a UK-300T preamp with onboard tuner powered by a pair of 2032 coin cells, and a ¼" endpin output jack.

For 2018 the rosewood fretboard and bridge were changed to purpleheart and the UK-300T preamp was replaced with the AEQ2U preamp. For 2019 the mahogany neck was replaced with okoume.

The UEW12EJ is a similar spot model which is identical aside from its finish. Several similar models have been produced with different body materials: UEW15E (flamed mahogany), UEW14E (ovangkol), UEW13MEE (Macassar ebony), UEW13E (bocote) and UEW12E (flamed maple). The UEW5E is a related model with a mahogany or sapele body, an abalone rosette and Ibanez tuners.

The UEW12ACE was discontinued after 2023.

Specifications[]

Related content: UEW series | Models-icon
Specifications for UEW12ACE
Name: UEW12ACE
Year(s) offered: 2015–2023
Sold in: Japan
Made in: China
Price: MSRP: ¥30,000 (2015[1]–2023[2])
Finishes: Open Pore Natural (OPN)
Body
Body type:
Acoustic
Body shape:
Concert style EW body w/ soft Florentine cutaway
Dimensions:
  Body length: 267mm/ 10½"
  Width: 222mm/ 8¾"
  Depth: 70mm/ 2¾" (60mm at neck joint)
Top:
  Material: Acacia (laminated)
  Bracing: Fan
  Finish: Open pore
  Binding: Black
Back/sides:
  Material: Acacia (laminated)
  Strip inlay: Black strip
  Finish: Open pore
Soundhole shape:
Round
Soundhole rosette:
Maple
Neck
Neck profile:
UEW
Neck material:
2015–2018: 1-piece mahogany
2019–2023: 1-piece okoume
Scale length:
382mm/ 15"
Fingerboard:
2015–2017: Rosewood
2018–2023: Purpleheart
Inlays:
Maple dot
Frets:
19
Nut:
Ivory plastic (35mm)
Machine heads:
Grover open gear w/ black knobs
Strings (factory):
.024/.032/.037/.026 (Ibanez/Aquila Nylblack)
Factory tuning:
1A,2E,3C,4G
Electronics/ components
Pickup:
Ibanez Under Saddle
Preamp:
2015–2017: Ibanez UK-300T w/ onboard tuner
2018–2023: Ibanez AEQ2U w/ onboard tuner
Output jack(s):
¼" endpin
Battery:
Two 2032 coin cells (3V)
Bridge:
2015–2017: Rosewood
2018–2023: Purpleheart
Saddle:
Ivory plastic compensated (13mm string spacing)
Hardware color:
Chrome

Images[]

Additional details
Ibanez UK-300T preamp
UK-300T preamp controls
Ibanez AEQ2U preamp diagram
AEQ2U preamp controls

Sources[]

  1. 2015 Japan catalog (p. 67)
  2. UEW12ACE product page 2023, Ibanez Japan, archived January 2023
  • 2018 Japan catalogx (p. 64)
  • UEW12ACE product page 2019, Ibanez Japan, archived December 2019
  • UEW12ACE product page 2020, Ibanez Japan, archived January 2020
  • UEW12ACE product page 2021, Ibanez Japan, archived January 2021
  • UEW12ACE product page 2022, Ibanez Japan, archived June 2022
