1991 UCMD1 ST

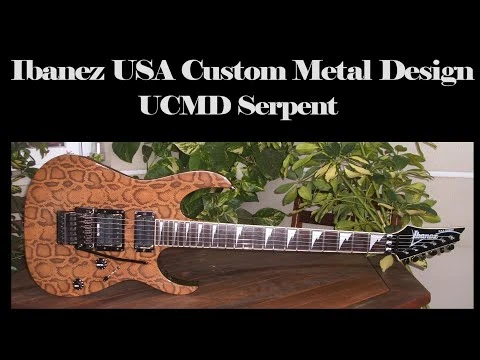

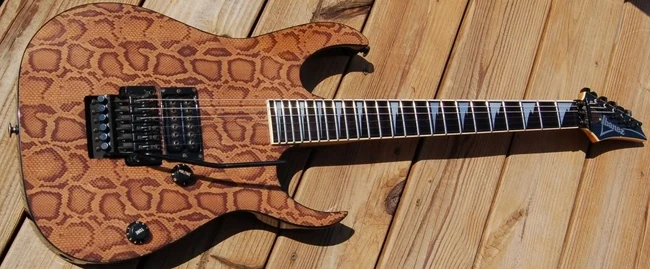

UCMD1ST Serpent (more images) Red copyright sprite

The UCMD1ST is an RG series solid body electric guitar model introduced by Ibanez in 1991. It was produced in the United States as part of the Metal Design series of the USA Custom line. The Metal Design models feature bodies which are covered in iridescent fabrics in exotic designs.[1]

The UCMD1ST features a basswood body covered in a Serpent patterned fabric bolted to a maple neck with a 24-fret maple fingerboard with dot position markers. Components include a DiMarzio Super Distortion humbucking pickup at the bridge and DiMarzio VS-1 single coil pickups in the middle and neck positions, an Edge double locking tremolo bridge, a locking nut and Gotoh tuning machines.

This represents only the "stock" configuration, as customers could customize the guitar to their own desires. The customer could select the pickup configuration and pickups, the fretboard material and inlays, the headstock, the hardware color and more.

The UCMD1ST was discontinued after 1991 along with the rest of the Metal Design series.

Specifications

Specifications for UCMD1ST
Model name: UCMD1ST
Year(s) produced: 1991
Sold in: USA
Made in: USA
Finish(es): Serpent (fabric)
Body
Body type:
Solid body
Body material:
Basswood
Neck joint:
Tilt joint
Bridge:
Edge tremolo
Hardware color:
Black
Neck
Neck type:
Ultra or Wizard
Neck material:
1-piece maple
Fingerboard material:
Maple
Fingerboard inlays:
Black dot
Frets:
24 / jumbo
Nut:
Top-Lok III
Machine heads:
Gotoh SG38
Electronics
Pickup configuration:
HSS
Bridge pickup:
DiMarzio Super Distortion (H)
Middle pickup:
DiMarzio VS-1 (S)
Neck pickup:
DiMarzio VS-1 (S)
Controls:
Master volume / master tone / 5-way lever

Sources

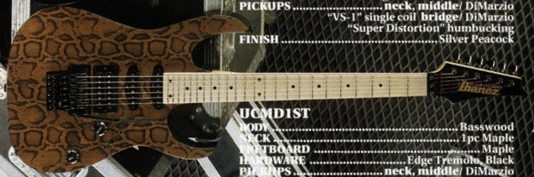

  1. 1991 USA catalog (page 22)
