1990 UCGR-Strung Out

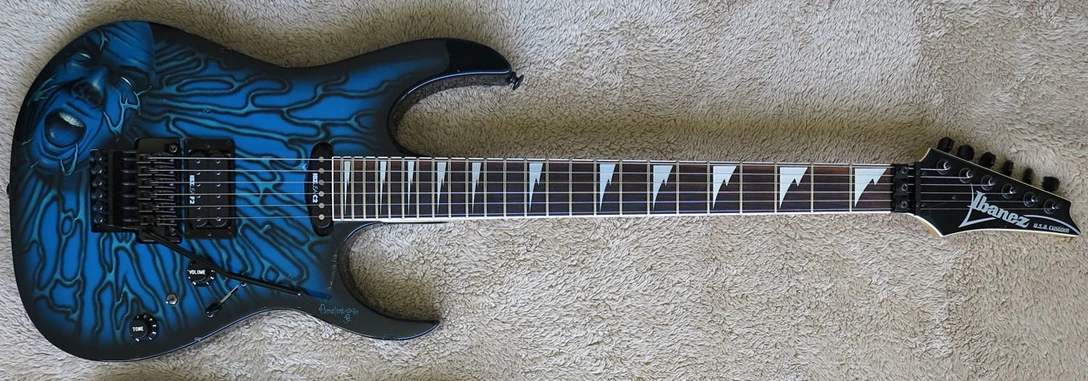

UCGR Strung Out (more images) Red copyright sprite

The UCGR Strung Out is an RG series solid body electric guitar model introduced by Ibanez in 1990. It was produced in the United States as part of the Graphic Design series of the USA Custom line.

The "UCGR Strung Out" features a basswood body bolted to a maple neck with a 24-fret bound rosewood fingerboard with sharktooth position markers. Components include a DiMarzio-made IBZ/USA F2 humbucking pickup at the bridge paired with IBZ/USA C2 single-coil at the neck position, an Edge double locking tremolo bridge, a locking nut and Gotoh tuning machines.

The image on this guitar, entitled "Strung Out" was handpainted and signed by Pamelina H.

  • This represents only the "stock" configuration, as customers could customize the guitar to their own desires. The customer could select the pickup configuration and pickups, the fretboard material and inlays, the headstock, the hardware color and more.

Specifications[]

Related content: USA Custom series | RG series | Models-icon
Specifications for UCGR Strung Out
Model name: UCGR Strung Out
Year(s) offered: 1990
Sold in: USA
Made in: USA
Finish(es): Strung Out Graphic
Body
Body type:
Solid body
Body material:
Basswood
Neck joint:
Tilt joint
Bridge:
Edge tremolo (10.8mm string spacing)
Hardware color:
Cosmo Black
Neck
Neck type:
UCGR
Neck material:
1-piece maple
Scale length:
648mm/ 25½"
Fingerboard material:
Rosewood w/ binding
Fingerboard inlays:
Sharktooth
Frets:
24 / jumbo
Nut:
Top-Lok III (43mm)
Machine heads:
Gotoh SG38
Electronics/ Strings
Pickup configuration:
HS
Bridge pickup:
IBZ/USA F2 (H)
Neck pickup:
IBZ/USA C2 (S)
Controls:
Master volume / master tone / 5-way lever pickup selector / push-pull high pass filter on volume
String gauge (factory):
.009/.011/.016/.024/.032/.042 (D'Addario EXL120)
Factory tuning:
1E,2B,3G,4D,5A,6E (E Std.)

Images[]

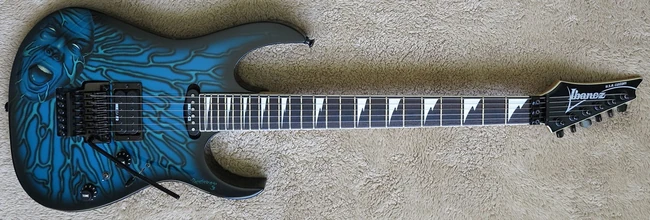

1990 UCGR Strung Out - Reverse
1990 Ibanez UCGR Strung Out ( with Reverse headstock ) Red copyright sprite
Additional details

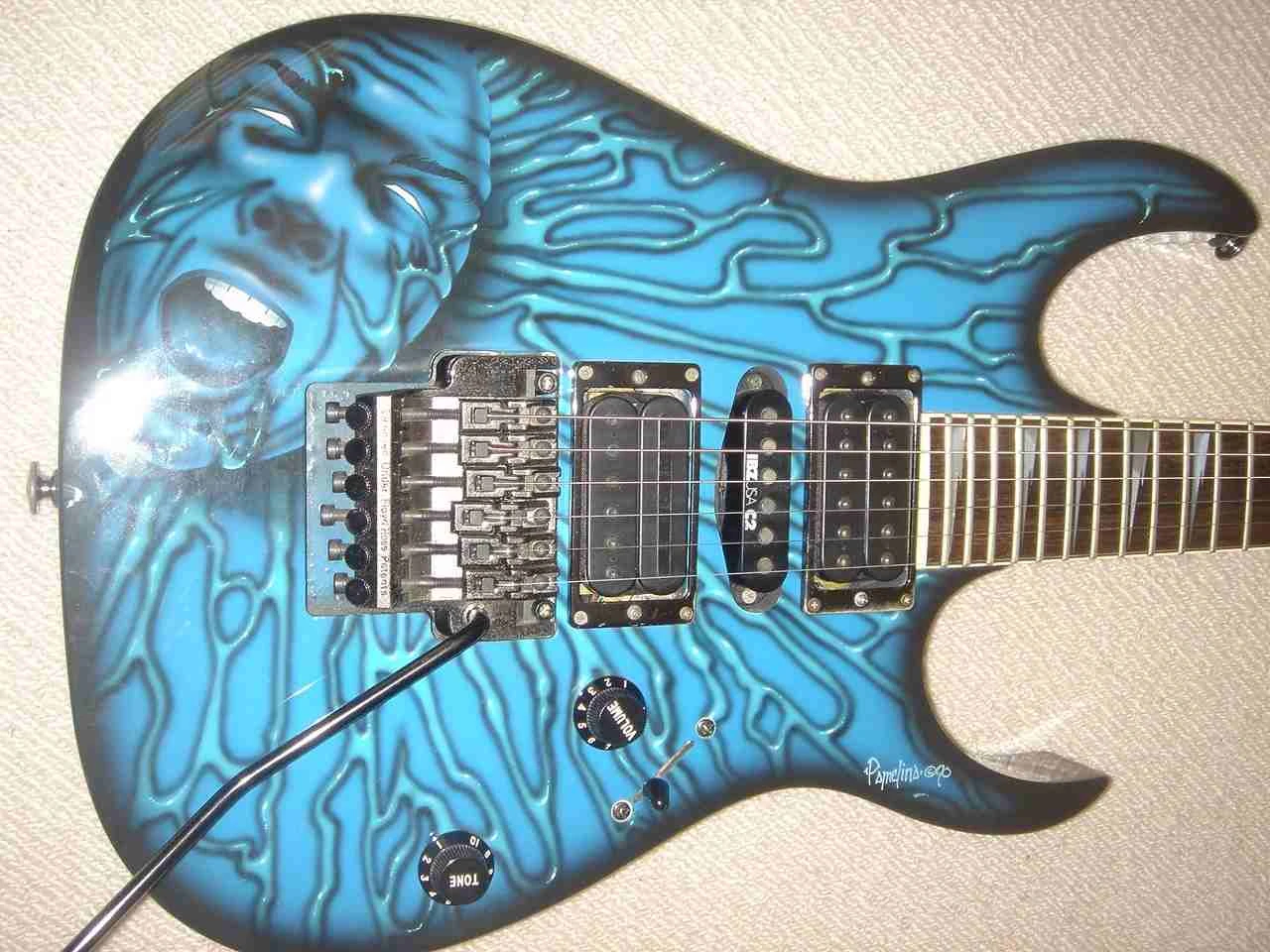

1990 UCGR-Strung Out body
HSH configuration

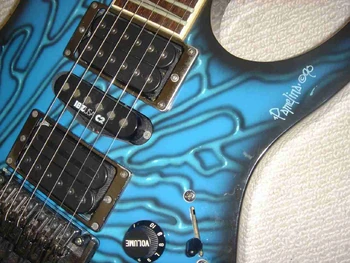

1990 UCGR-Strung Out HSH
Up close

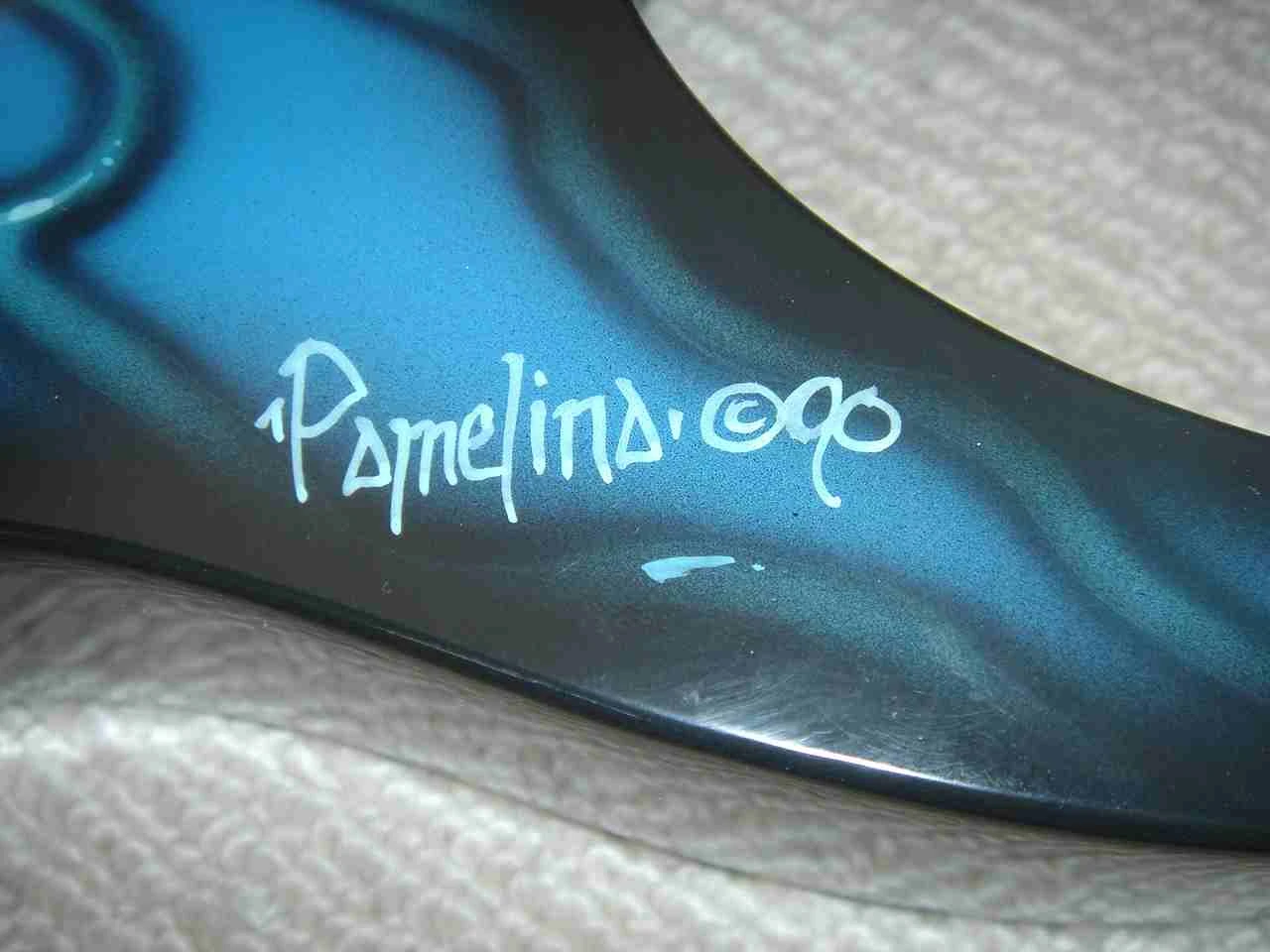

1990 UCGR-Strung Out signature
Artist signature
