1990 UCGR Southbound
UCGR Southbound (more images) Red copyright sprite

The UCGR Southbound is an RG series solid body electric guitar model introduced by Ibanez in 1990. It was produced in the United States as part of the Graphic Design series of the USA Custom line. The Graphic Design models feature bodies which are handpainted by "some of the most skilled and imaginative artists in America".[1]

The "UCGR Southbound" features a basswood body bolted to a maple neck with a 24-fret bound rosewood fingerboard with white dots position markers. Components include a DiMarzio-made IBZ/USA F1 humbucking pickup at the bridge paired with IBZ/USA C2 single-coil at the middle and a IBZ/USA C2 single-coil in the neck position, an Edge double locking tremolo bridge, a locking nut and Gotoh tuning machines.

The image on this guitar, entitled "Southbound" was handpainted by Rick Klemann.

  • This represents only the "stock" configuration, as customers could customize the guitar to their own desires. The customer could select the pickup configuration and pickups, the fretboard material and inlays, the headstock, the hardware color and more.

Specifications[]

Related content: USA Custom series | RG series | Models-icon
Specifications for UCGR Southbound
Model name: UCGR Southbound
Year(s) offered: 1990
Sold in: USA
Made in: USA
Finish(es): Southbound (handpainted)
Body
Body type:
Solid body
Body material:
Basswood
Neck joint:
Tilt joint
Bridge:
Edge tremolo
Hardware color:
Cosmo black
Neck
Neck type:
UCGR
Neck material:
1-piece maple
Fingerboard material:
Rosewood
Fingerboard inlays:
Dot
Frets:
24 / jumbo
Nut:
Top-Lok III
Machine heads:
Gotoh
Electronics
Pickup configuration:
HSS
Bridge pickup:
IBZ/USA F1 (H)
Middle pickup:
IBZ/USA C2 (S)
Neck pickup:
IBZ/USA C2 (S)
Controls:
Master volume / master tone / 5-way lever pickup selector

Images[]

Additional details

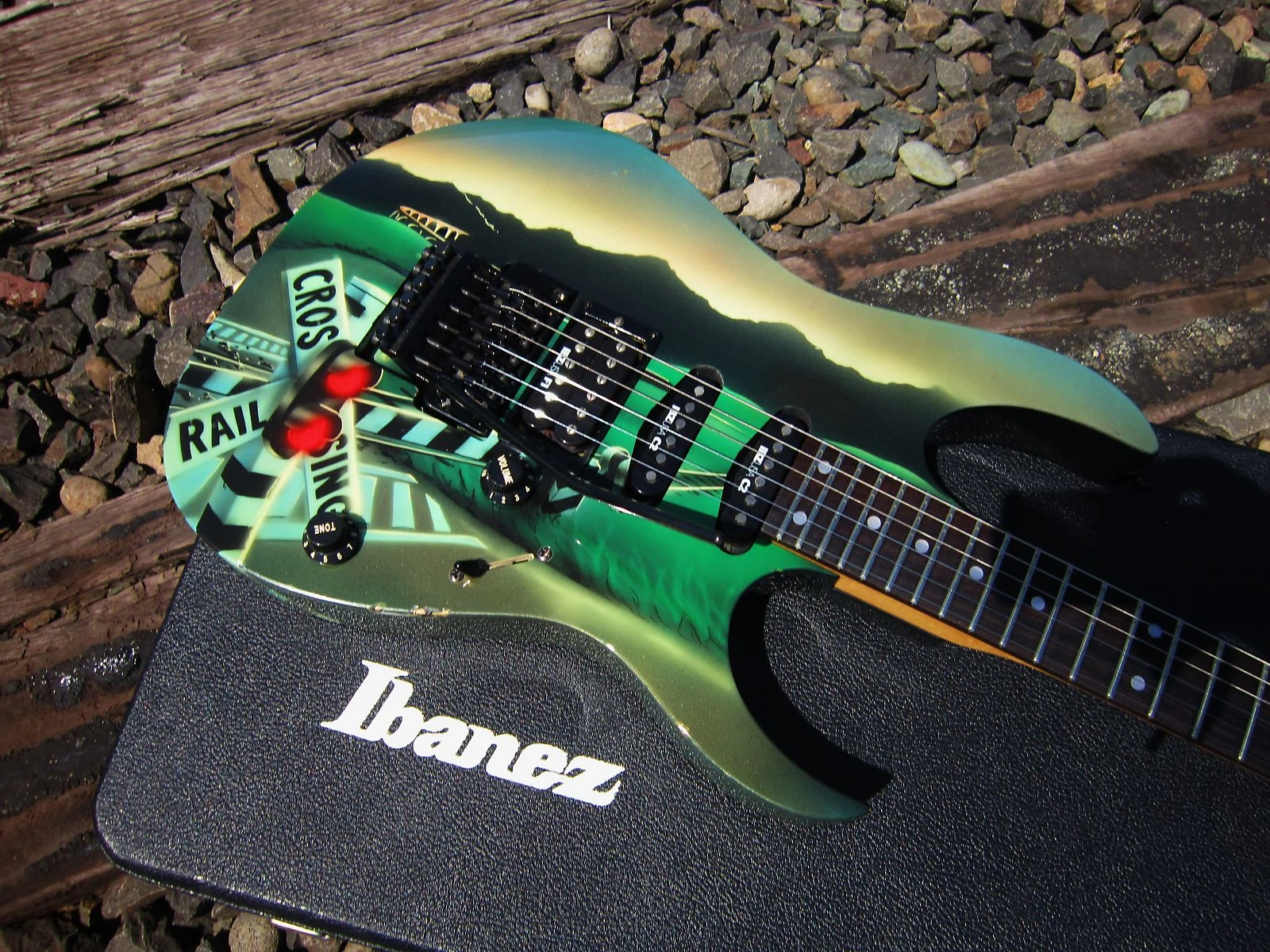

UCGR Southbound front
Front of body
UCGR Southbound joint
Metal plate

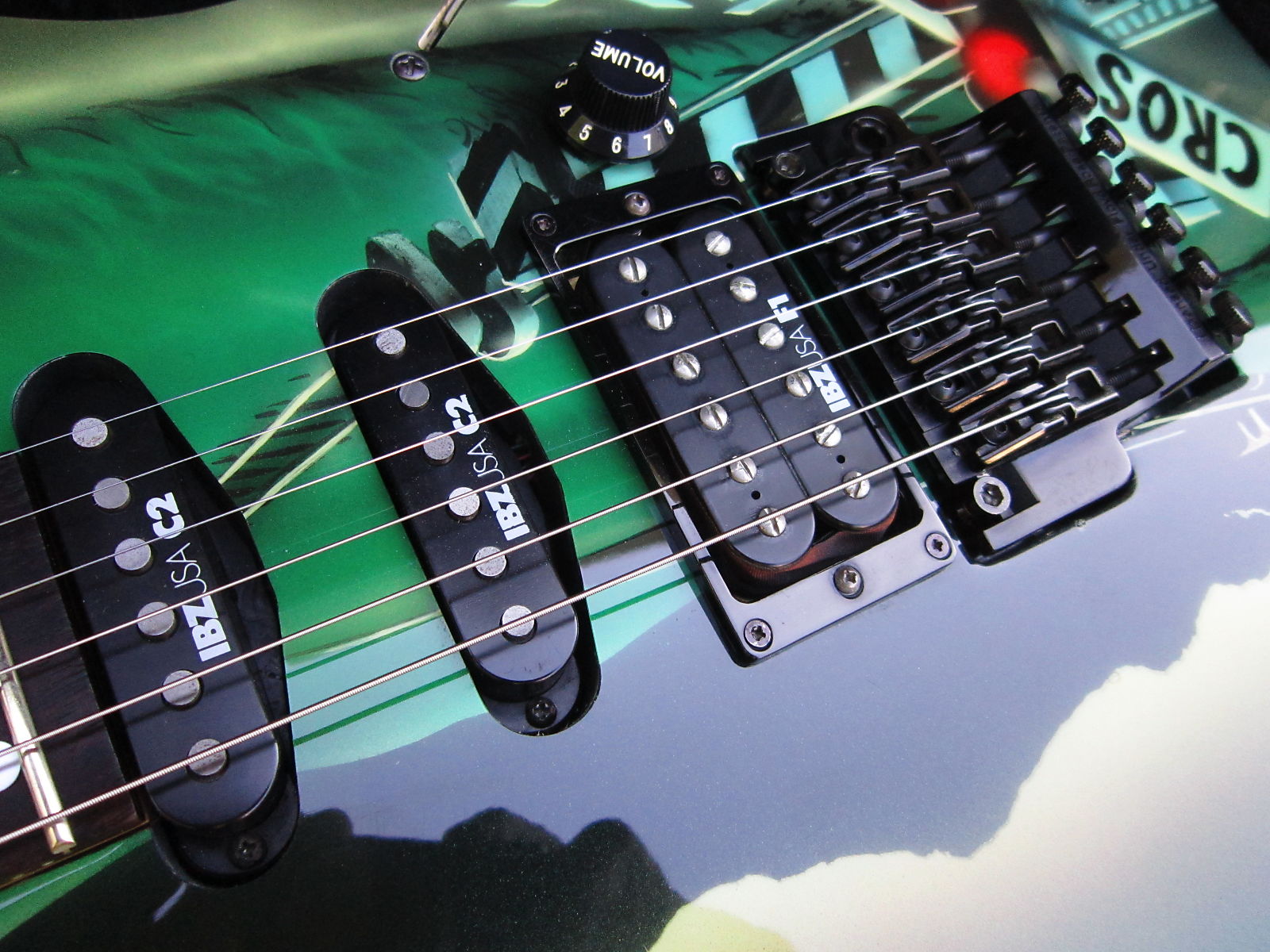

UCGR Southbound HSS
IBZ/USA pickups

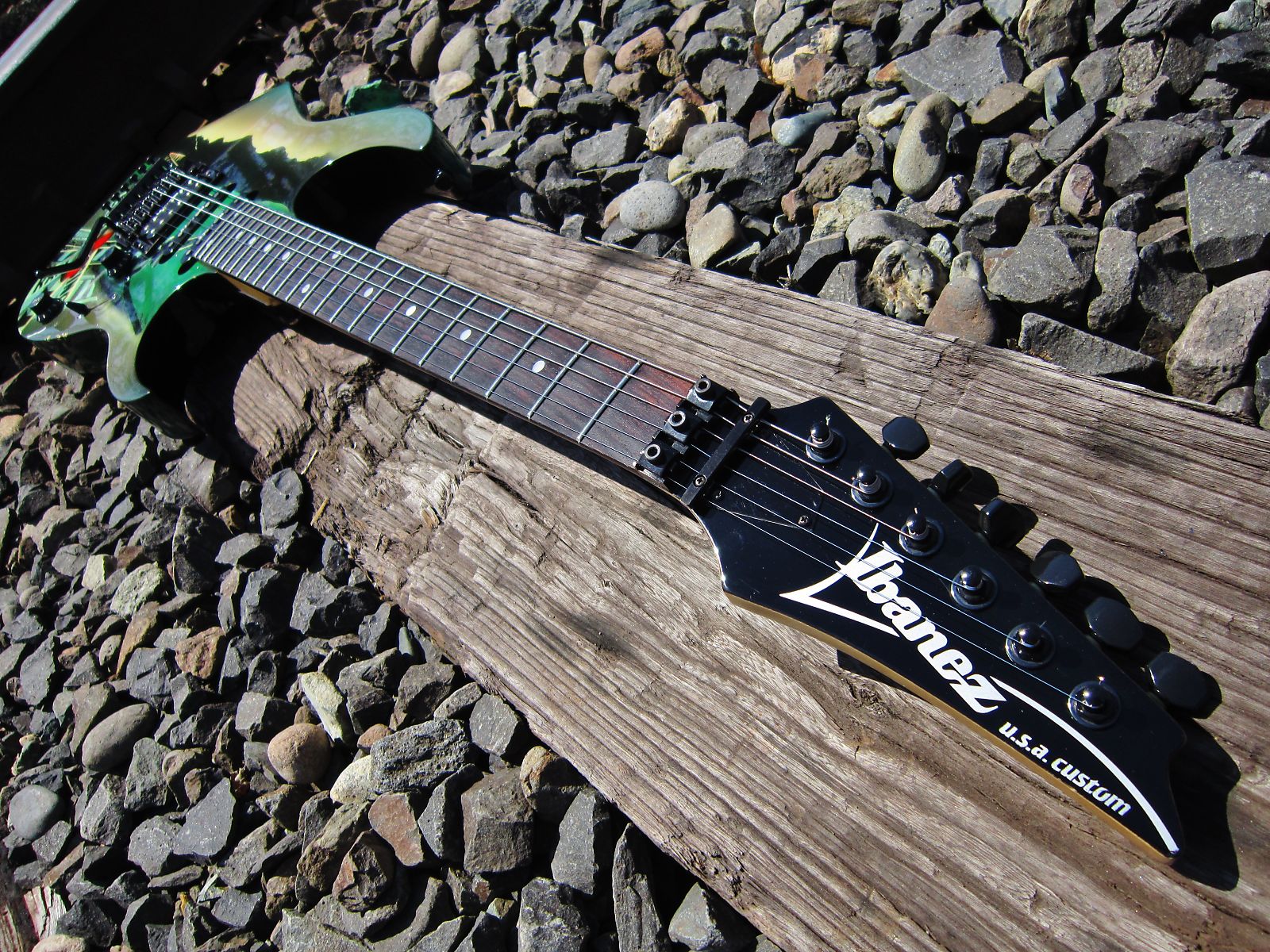

UCGR Southbound fret
Rosewood fretboard

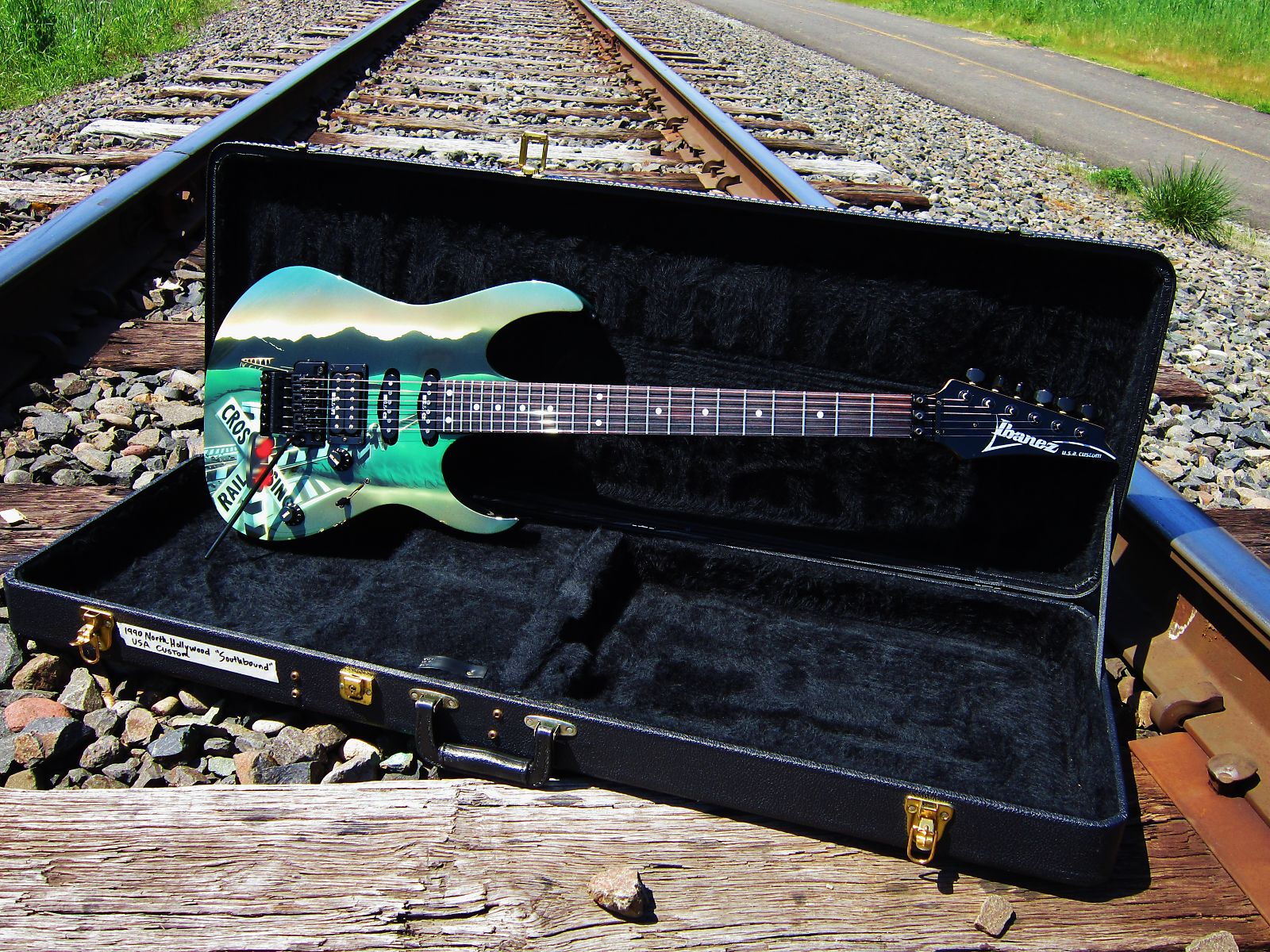

UCGR Southbound case
Southbound & case
