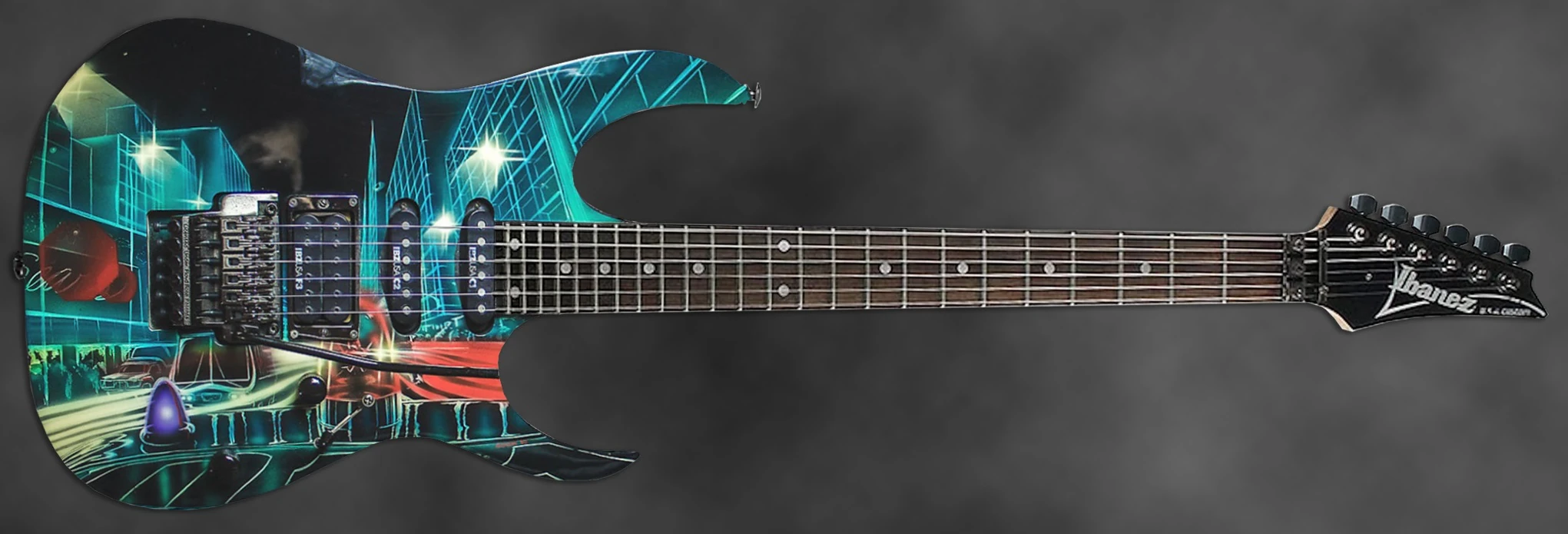

1991 UCGR Streetwise
UCGR Streetwise (more images) Red copyright sprite

The UCGR Streetwise is an RG series solid body electric guitar model introduced by Ibanez in 1990. It was produced in the United States as part of the Graphic Design series of the USA Custom line. The Graphic Design models feature bodies which are handpainted by "some of the most skilled and imaginative artists in America".[1]

The UCGR Streetwise features a basswood body bolted to a maple neck with a 24-fret bound rosewood fingerboard with white dots ( or "sharktooths" ) position markers. Components include a DiMarzio-made IBZ/USA F3 humbucking pickup at the bridge paired with IBZ/USA C2 single-coil at the middle and a IBZ/USA C2 single-coil at the neck positions, an Edge double locking tremolo bridge, a locking nut and Gotoh tuning machines.

The image on this guitar, entitled "Streetwise" was handpainted and signed by Artist: Rick Klemann.

( The UCGR "Streetwise" can be found with the following pick up configurations: HSS, HSH, HH & you can find it with reverse headstock as well. )

The UCGR "Streetwise" was discontinued in 1991 after two years of production.

Specifications[]

Related content: USA Custom series | RG series | Models-icon
Specifications for UCGR Streetwise
Model name: UCGR Streetwise
Year(s) offered: 1990-1991
Sold in: USA
Made in: USA
Finish(es): Streetwise Graphic
Body
Body type:
Solid body
Body material:
Basswood
Neck joint:
Tilt Joint
Bridge:
Edgetremolo
Hardware color:
Cosmo black
Neck
Neck type:
UCGR
Neck material:
1-piece maple Wizard
Scale length:
648mm/ 25½"
Fingerboard material:
Rosewood w/ binding
Fingerboard inlays:
Dots
Frets:
24 / jumbo
Nut:
Top-Lok III (43mm)
Machine heads:
Gotoh SG38
Electronics/ Strings
Pickup configuration:
HSS
Bridge pickup:
IBZ/USA F3 (H)
Middle pickup:
IBZ/USA C2 (S)
Neck pickup:
IBZ/USA C1 (S)
Controls:
Master volume / Master tone / 5-way lever pickup selector
Factory tuning:
1E,2B,3G,4D,5A,6E (E Std.)

Images[]

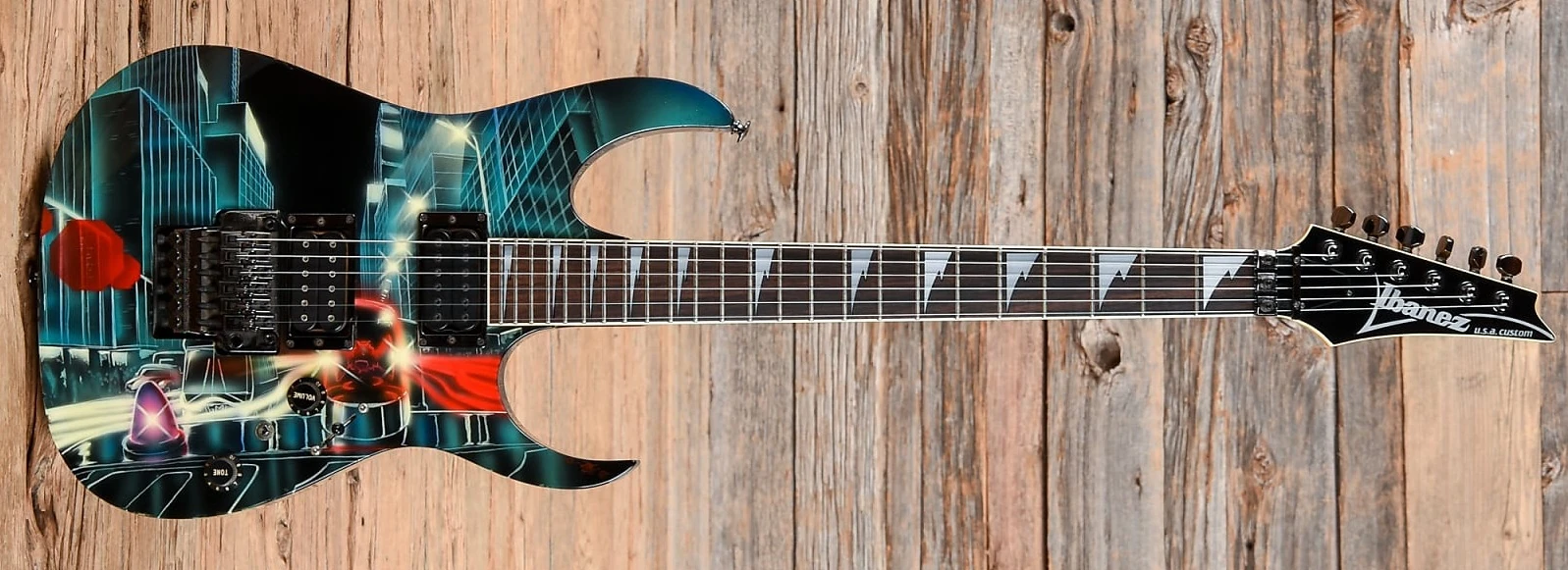

UCGR Streetwise top
1991 Ibanez UCGR Streetwise ( with HH Configuration ) Red copyright sprite

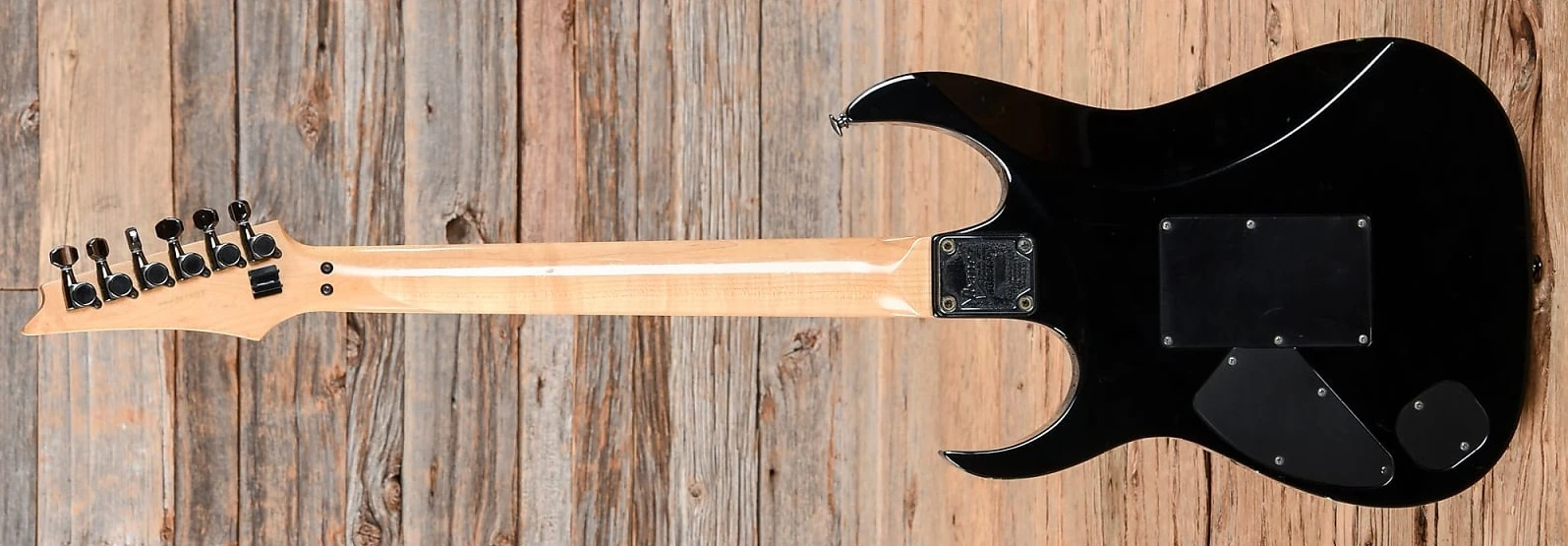

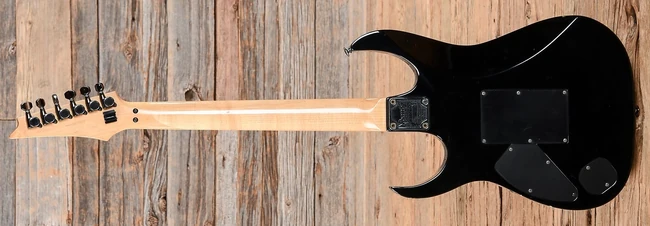

UCGR Streetwise back
1991 Ibanez UCGR Streetwise ( Rear: Basswood body bolted to a 1-piece maple UCGR neck & Gotoh SG38 machine heads ) Red copyright sprite
Additional details

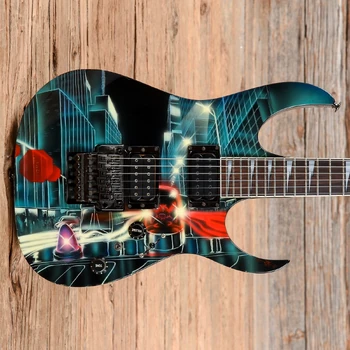

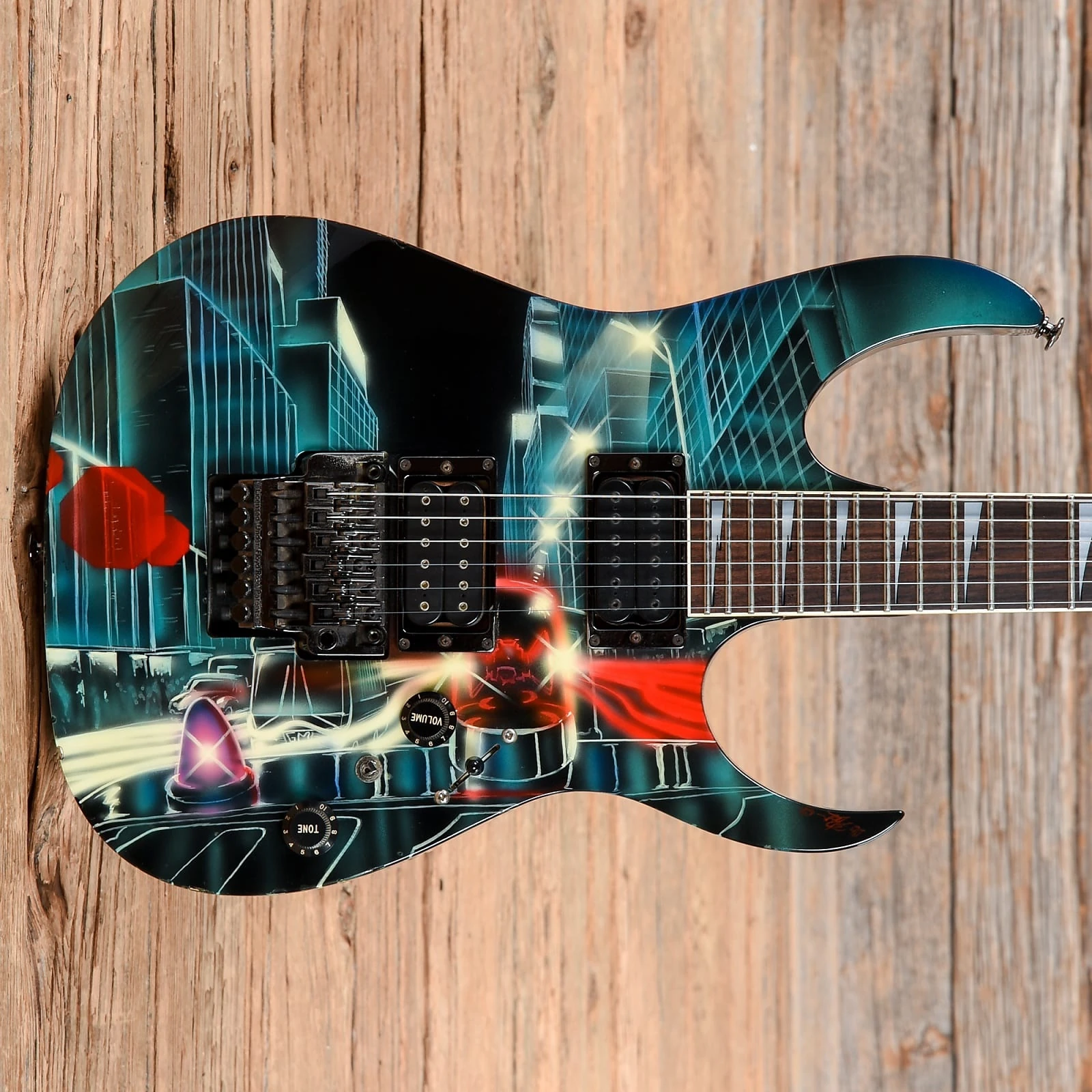

UCGR Streetwise front
Body Up close

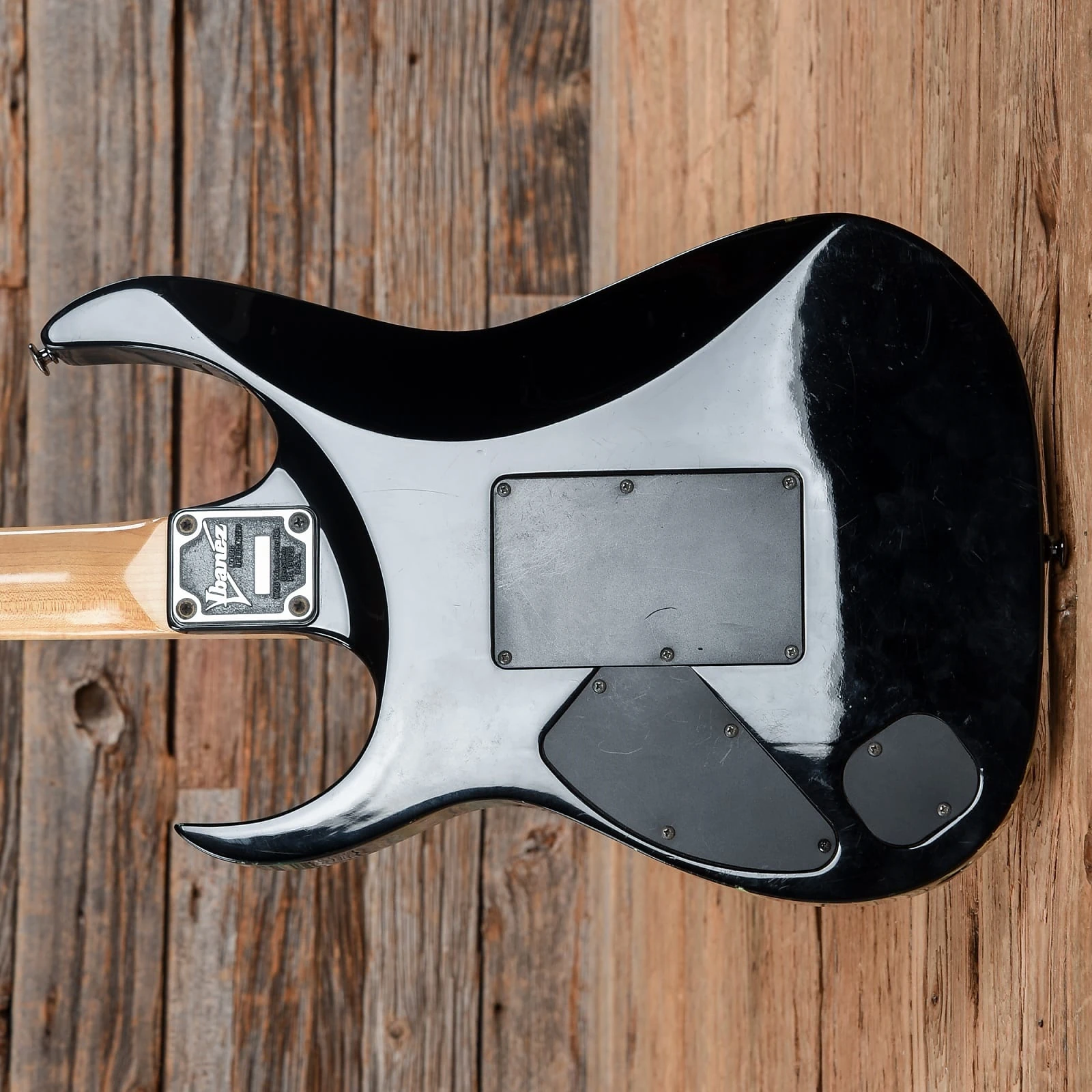

UCGR Streetwise back close
Rear Up close

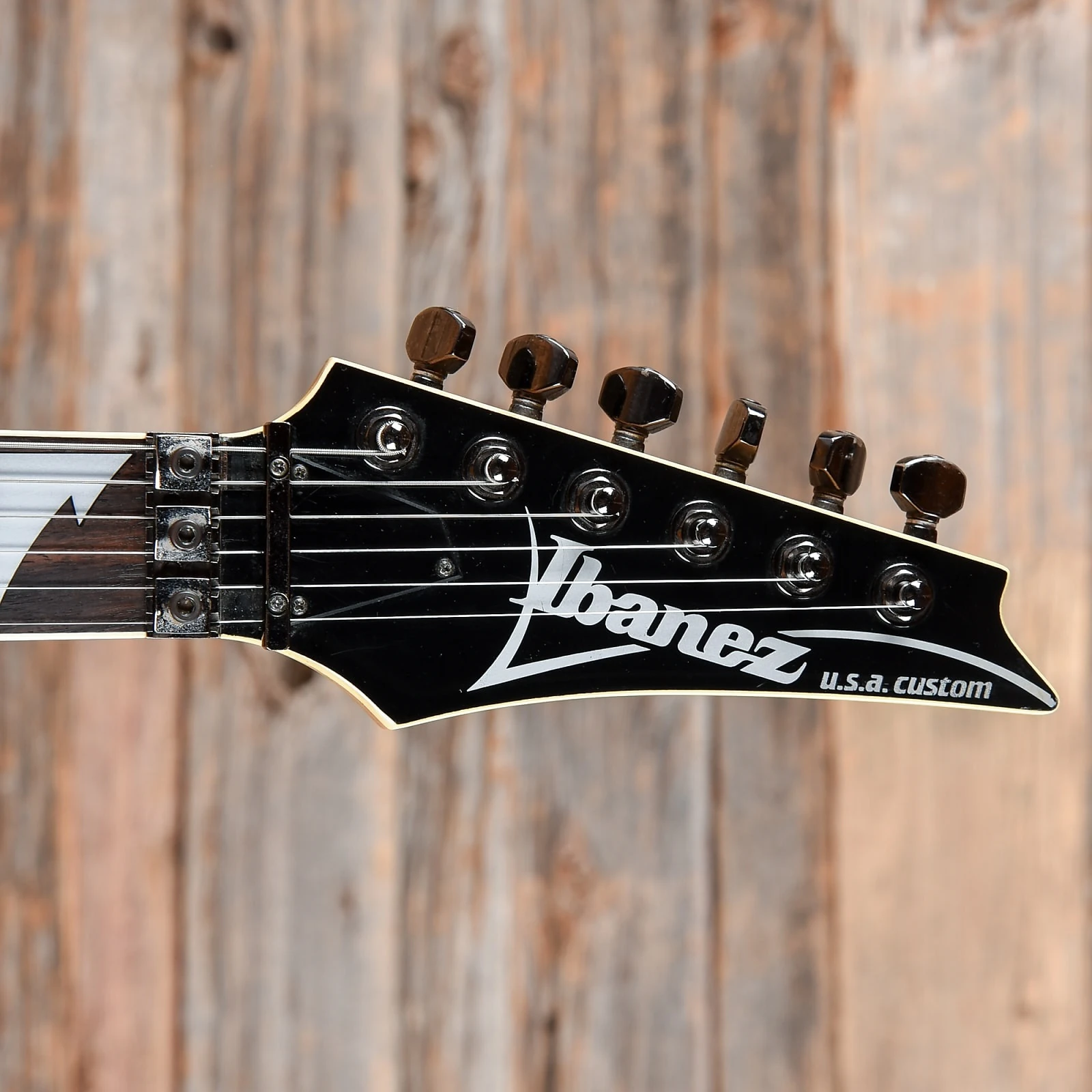

UCGR Streetwise Headstock
Headstock

Videos[]

Ibanez UCGR Streetwise ( Demo )


Ibanez UCGR Streetwise ( Review )
