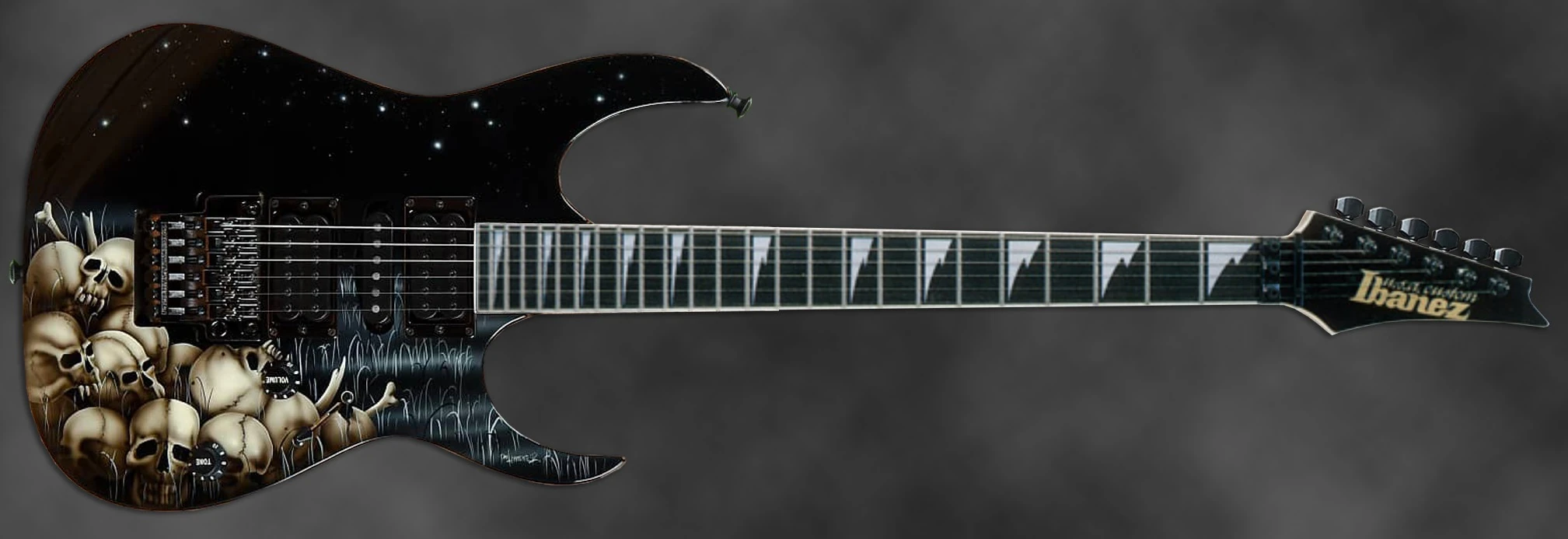

1991 UCGR11 No Bones About It
UCGR11 No Bones About It (more images) Red copyright sprite

The UCGR11 is an RG series solid body electric guitar model introduced by Ibanez in 1991. It was produced in the United States as part of the Graphic Design series of the USA Custom line. The Graphic Design models feature bodies which are handpainted by "some of the most skilled and imaginative artists in America".[1]

The UCGR11 features a basswood body bolted to a maple neck with a reverse headstock and a 24-fret bound rosewood fingerboard with sharktooth position markers. Components include a DiMarzio Double Whammy humbucking pickup at the bridge with a DiMarzio PAF Pro humbucker at the neck with a DiMarzio-made IBZ/USA C3 single coil pickup between them, an Edge double locking tremolo bridge, a locking nut and Gotoh tuning machines.

The image on this guitar, entitled "No Bones About It", features a pile of human skulls in the foreground under a night sky. It was handpainted and signed by Dan Lawrence.

This represents only the "stock" configuration, as customers could customize the guitar to their own desires. The customer could select the pickup configuration and pickups, the fretboard material and inlays, the headstock, the hardware color and more.

The UCGR11 was discontinued after 1991 although a similar Custom Graphics series was offered in 1992. The 92UCGR2 has a similar image.

Specifications

Specifications for UCGR11
Model name: UCGR11
Year(s) produced: 1991
Sold in: USA
Made in: USA
Finish(es): No Bones About It
Body
Body type:
Solid body
Body material:
Basswood
Neck joint:
Tilt joint
Bridge:
Edge tremolo
Hardware color:
Cosmo black
Neck
Neck type:
UCGR
Neck material:
1-piece maple
Fingerboard material:
Rosewood w/ binding
Fingerboard inlays:
Sharktooth
Frets:
24 / jumbo
Nut:
Top-Lok III
Machine heads:
Gotoh SG38
Electronics
Pickup configuration:
HSH
Bridge pickup:
DiMarzio Double Whammy (H)
Middle pickup:
IBZ/USA C3 (S)
Neck pickup:
DiMarzio PAF Pro (H)
Controls:
Master volume / master tone / 5-way lever

Images

1991 UCGR11 No Bones About It closeup
UCGR11 No Bones About It by Dan Lawrence Red copyright sprite

Sources

  1. 1991 USA catalog (pages 20–21)
