1992 UCEWQM TE

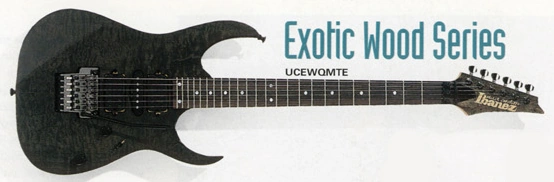

UCEWQM Transparent Ebony (more images) Red copyright sprite

The UCEWQM is an RG series solid body electric guitar model introduced by Ibanez in 1992. It was produced in the United States as part of the Exotic Wood series of the USA Custom line. It replaced the UCEW1QM.

The UCEWQM features a mahogany body with a quilted maple top bolted to a birdseye maple neck with a 24-fret rosewood fingerboard with dot position markers. Components include dual DiMarzio PAF Pro humbucking pickups flanking a DiMarzio-made IBZ/USA single-coil, a low profile double locking tremolo bridge and a locking nut.

The UCEWFM is a similar model with a flame maple top.

The UCEWQM was discontinued after just one year in production.

Specifications[]

Related content: USA Custom series | RG series | Models-icon
Specifications for UCEWQM
Model name: UCEWQM
Year(s) offered: 1992
Sold in: Europe / USA
Made in: USA
Finish(es): Natural (NT) / Transparent Blue (TB) / Transparent Ebony (TE) / Transparent Purple (TP)
Body
Body type:
Solid body
Body material:
Mahogany w/ quilted maple top
Neck joint:
AANJ
Bridge:
Lo-Pro Edge tremolo
Hardware color:
Cosmo black
Neck
Neck type:
UCEW
Neck material:
Birdseye maple
Scale length:
648mm/ 25½"
Fingerboard material:
Rosewood
Fingerboard inlays:
Pearl dot
Frets:
24 / jumbo
Nut:
Top-Lok III (43mm)
Electronics
Pickup configuration:
HSH
Bridge pickup:
DiMarzio PAF Pro (H)
Middle pickup:
IBZ/USA C3 (S)
Neck pickup:
DiMarzio PAF Pro (H)
Controls:
Master volume / master tone / 5-way lever pickup selector

Images[]

Other available finishes
1992 UCEWQM NT
Natural
Transparent Blue

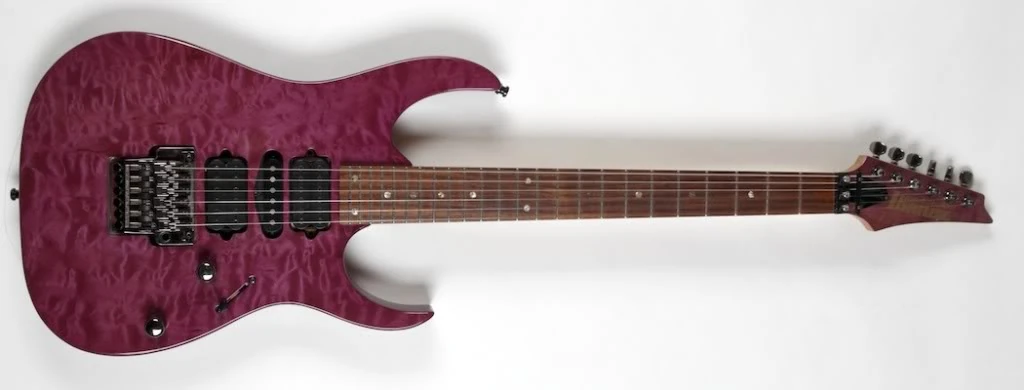

UCEWQM - TP
Transparent Purple
Wimage An image for this article is missing!
An image of the UCEWQM Transparent Blue (TB) is wanted for this article. You can help by finding, uploading and adding it!
