1992 UCEWFM TB

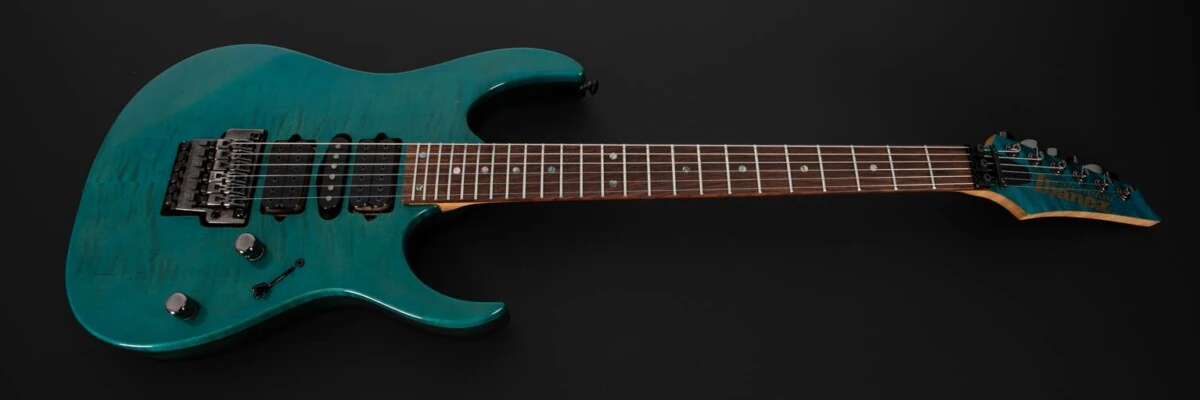

UCEWFM Transparent Blue (more images) Red copyright sprite

The UCEWFM is an RG series solid body electric guitar model introduced by Ibanez in 1992. It was produced in the United States as part of the Exotic Wood series of the USA Custom line. It replaced the UCEW1FM.

The UCEWFM features a mahogany body with a flame maple top bolted to a birdseye maple neck with a 24-fret rosewood fingerboard with dot position markers. Components include dual DiMarzio PAF Pro humbucking pickups flanking a DiMarzio-made IBZ/USA single-coil, a low profile double locking tremolo bridge and a locking nut.

The UCEWQM is a similar model with a quilted maple top.

The UCEWFM was discontinued after just one year in production.

Specifications

Specifications for UCEWFM
Model name: UCEWFM
Year(s) produced: 1992
Sold in: Europe / USA
Made in: USA
Finish(es): NT (Natural) / TB (Transparent Blue) / TE (Transparent Ebony) / TP (Transparent Purple)
Body
Body type:
Solid body
Body material:
Mahogany w/ flame maple top
Neck joint:
AANJ
Bridge:

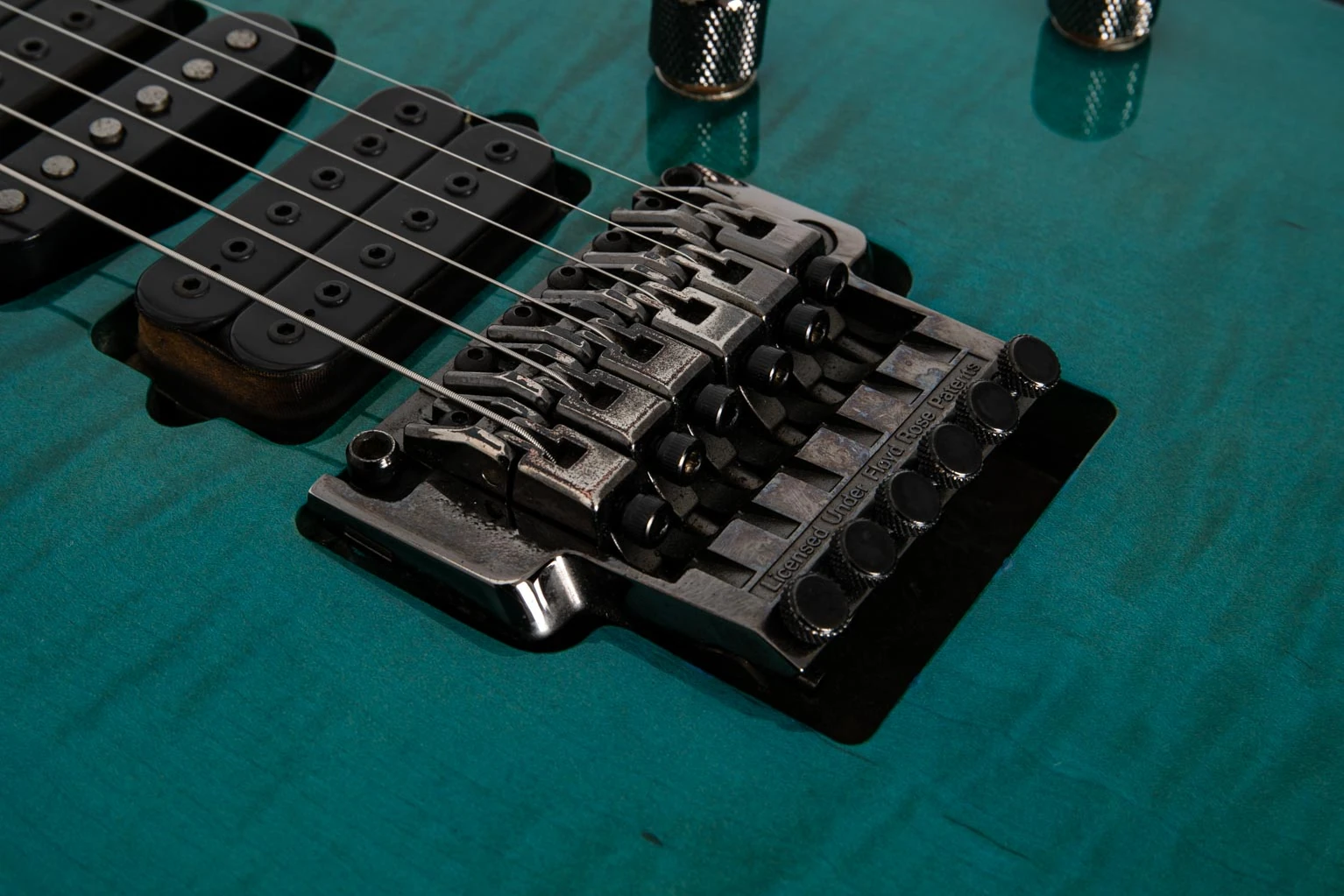

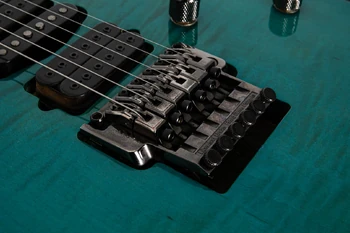

Lo-Pro Edge tremolo
Hardware color:
Cosmo black
Neck
Neck type:
UCEW
Neck material:
Birdseye maple

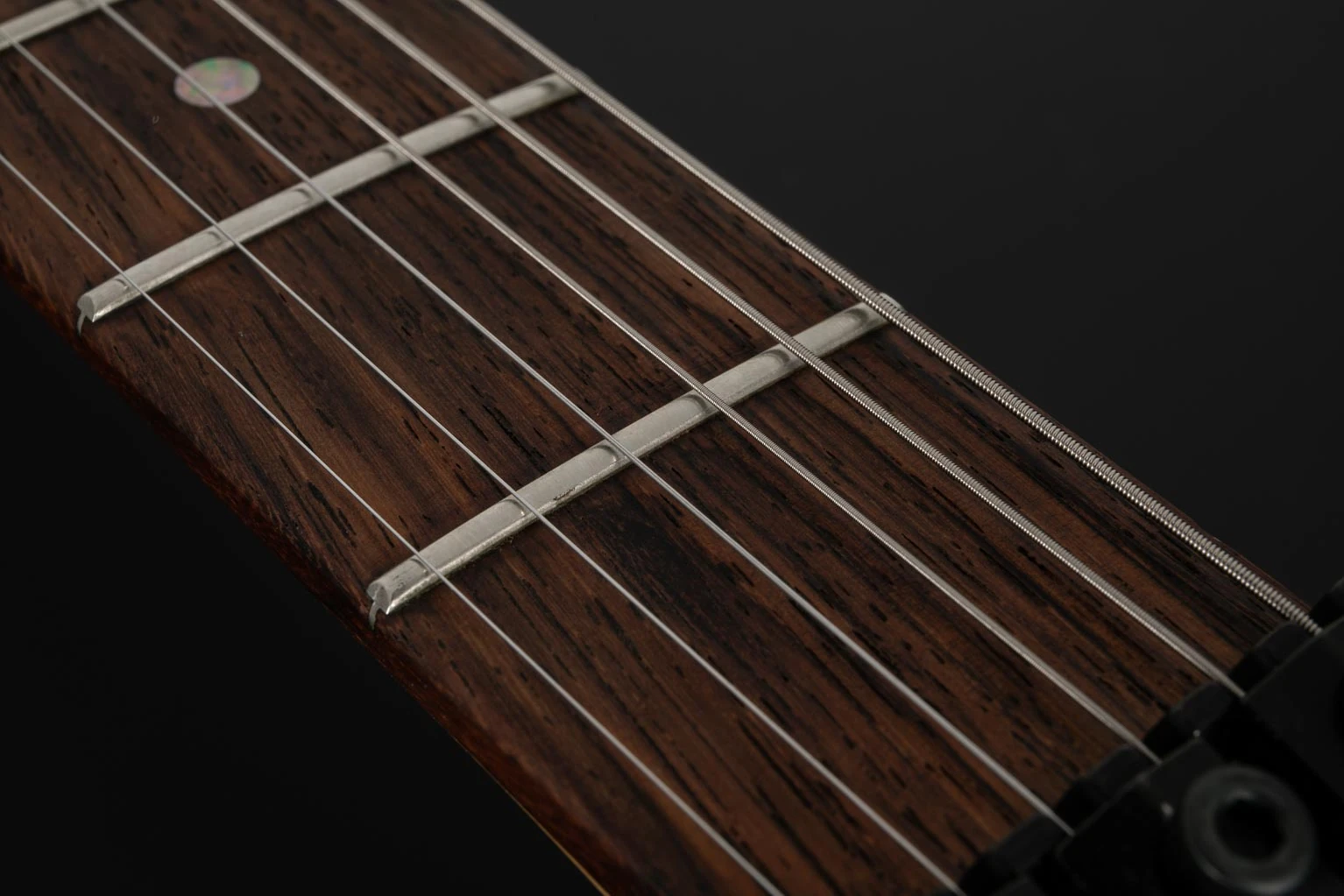

Fingerboard material:
Rosewood
Fingerboard inlays:
Pearl dot
Frets:
24 / jumbo
Nut:
Top-Lok III
Electronics
Pickup configuration:
HSH
Bridge pickup:
DiMarzio PAF Pro (H)
Middle pickup:
IBZ/USA C3 (S)
Neck pickup:
DiMarzio PAF Pro (H)
Controls:
Master volume / master tone / 5-way lever

Images

Other available finishes
Natural

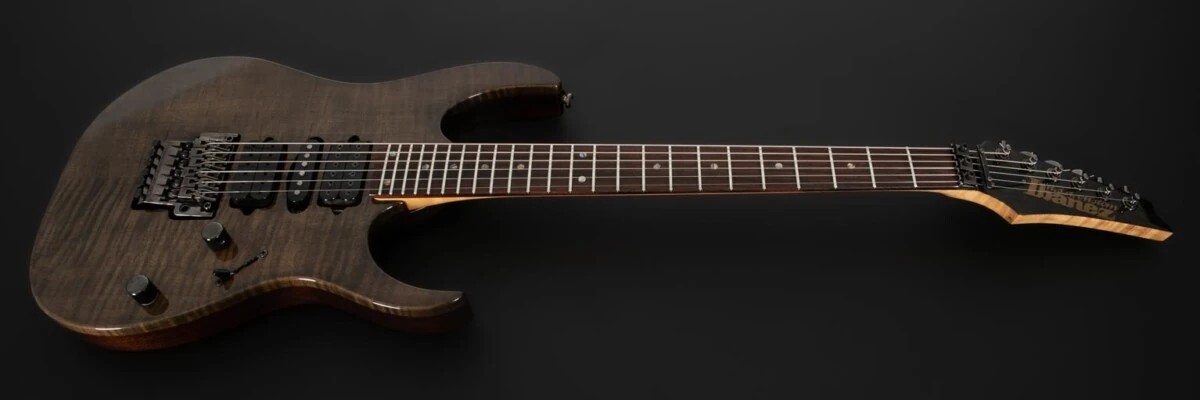

1992 UCEWFM TE
Transparent Ebony
Transparent Purple
Wimage An image for this article is missing!
An image of the UCEWFM Natural (NT) and Transparent Purple (TP) is wanted for this article. You can help by finding, uploading and adding it!
