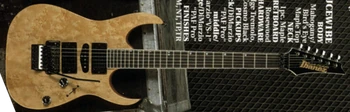

1991 UCEW1BE NT.png
UCEW1BE Natural Red copyright sprite.png

The UCEW1BE is an RG series solid body electric guitar model introduced by Ibanez in 1991. It was produced in the United States as part of the Exotic Wood series of the USA Custom line.

The UCEW1BE features a mahogany body with a birdseye maple top bolted to a maple neck with a 24-fret bound rosewood fingerboard with offset dot position markers. Components include dual DiMarzio PAF Pro humbucking pickups flanking a DiMarzio VS-1 single-coil, an Edge double locking tremolo bridge and a locking nut.

This represents only the "stock" configuration, as customers could customize the guitar to their own desires.

The UCEW1FM, UCEW1QM and UCEW1LC are similar models with, respectively, flame maple, quilted maple and lacewood tops in place of this model's birdseye maple.

The UCEW1BE was discontinued after 1991.

Specifications

Specifications for UCEW1BE
Model name: UCEW1BE
Year(s) produced: 1991
Sold in: USA
Made in: USA
Finish(es): AM (Amber) / NT (Natural) / TP (Transparent Purple) / TR (Transparent Red)
Body
Body type:
Solid body
Body material:
Mahogany w/ birdseye maple top
Neck joint:
AANJ
Bridge:
Edge tremolo
Hardware color:
Cosmo black
Neck
Neck type:
UCEW
Neck material:
1-piece maple
Fingerboard material:
Rosewood w/ binding
Fingerboard inlays:
Offset pearloid dot
Frets:
24 / jumbo
Nut:
Top-Lok III
Electronics
Pickup configuration:
HSH
Bridge pickup:
DiMarzio PAF Pro (H)
Middle pickup:
DiMarzio VS-1 (S)
Neck pickup:
DiMarzio PAF Pro (H)
Controls:
Master volume / master tone / 5-way lever pickup selector

Images

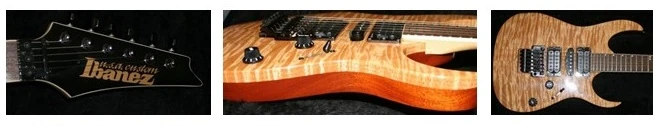

Ibanez 1991 UCEW1BE-AM ( Up close pictures ) Red copyright sprite.png
Other available finishes

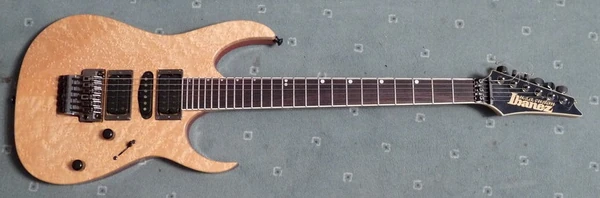

UCEW1BE Amber.jpg
Amber
Transparent Purple
Transparent Red
Wimage.jpg An image for this article is missing!
An image of the 'Transparent Purple (TP) and Transparent Red (TR) is wanted for this article. You can help by finding, uploading and adding it!
