TTR35B

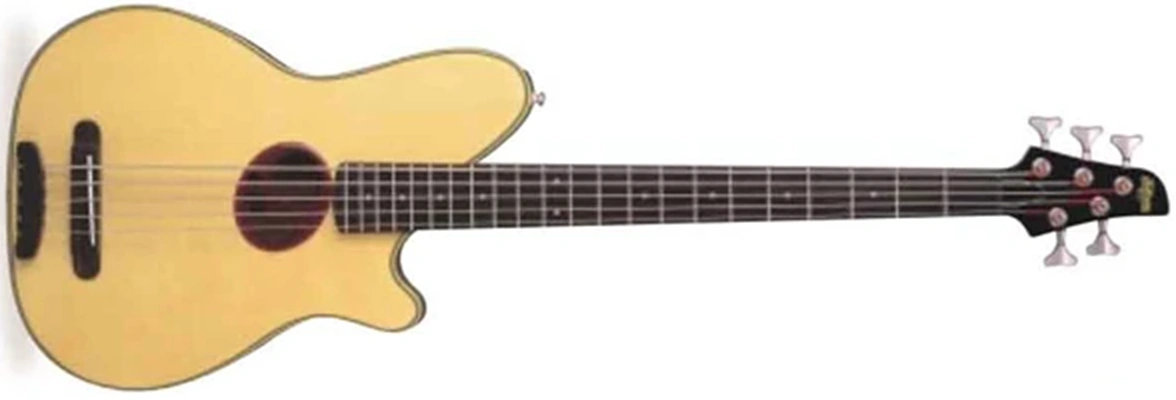

TTR35B Natural

The TTR35B is a five-string Talman Bass series solid body, electric bass model introduced by Ibanez for 1999. It was produced in South Korea as part of the Intertuor line.

The TTR35B features an hollow body asymmetric double-cutaway mahogany body with spruce top and a special TTR soundhole bolted to a maple neck with a 22-fret rosewood fingerboard with white dot position markers. Components include a rosewood bridge with 19mm string spacing, a plastic nut and Ibanez Die-cast tuning machines.

Electronics consist of an EMF B-Band pickuop with an AEQ2C preamp with 2-band EQ with volume and tone controls

The TTR34B is the four-string version.

The TTR35B was discontinued after 2000.

Specifications[]

Related content: Intertour series | Talman Bass series | Talman series |

Specifications for TTR35B

Name: TTR35B

Year(s) offered: 1999–2000

Sold in: Europe

Made in: South Korea

Finishes: Natural (NT)

Body

Body type:
Hollow body

Body shape:
Talman double cutaway

Dimensions:
  Body length: 505mm/ 19⅞"
  Width: 370mm/ 14⅝"
  Depth: 50mm/ 2"

Top:
  Material: Spruce
  Bracing: Fan
  Finish: high gloss
  Binding: multi-ply

Back/sides:
Material: mahogany
Finish: high gloss

Soundhole shape:
Special TTR 4 Oval

Soundhole rosette:
black and white purfling

Neck

Neck profile:
TTR5

Neck material:
3-piece maple

Neck joint:
AANJ

Scale length:
864mm / 34"

Fingerboard:
rosewood w/ natural binding

Inlays:
White dot w/ White side dots

Frets:
22 nickel silver

Nut:
Ivorex II (42mm)

Machine heads:
Ibanez die-cast

Strings (factory):
.045/.065/.085/.105/.130 nickel

Factory tuning:
1G,2D,3A,4E,5B (E Standard)

Electronics/ components

Pickup:
Ibanez EMF B-Band (under saddle)

Preamp:
Ibanez AEQ2C w/ 2-band EQ

Output jack(s):
¼" endpin stereo

Battery:
9V

Bridge:
rosewood

Saddle:
Ivorex II compensated (19mm string spacing)

Hardware color:
nickel

TTR35B
