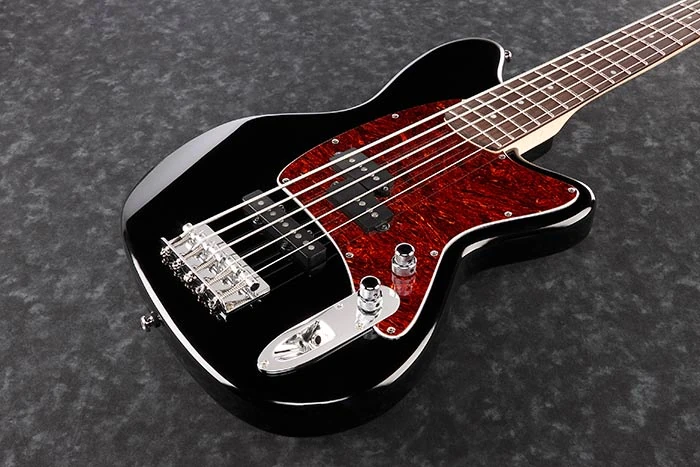

2019 TMB105 BK 1P 01

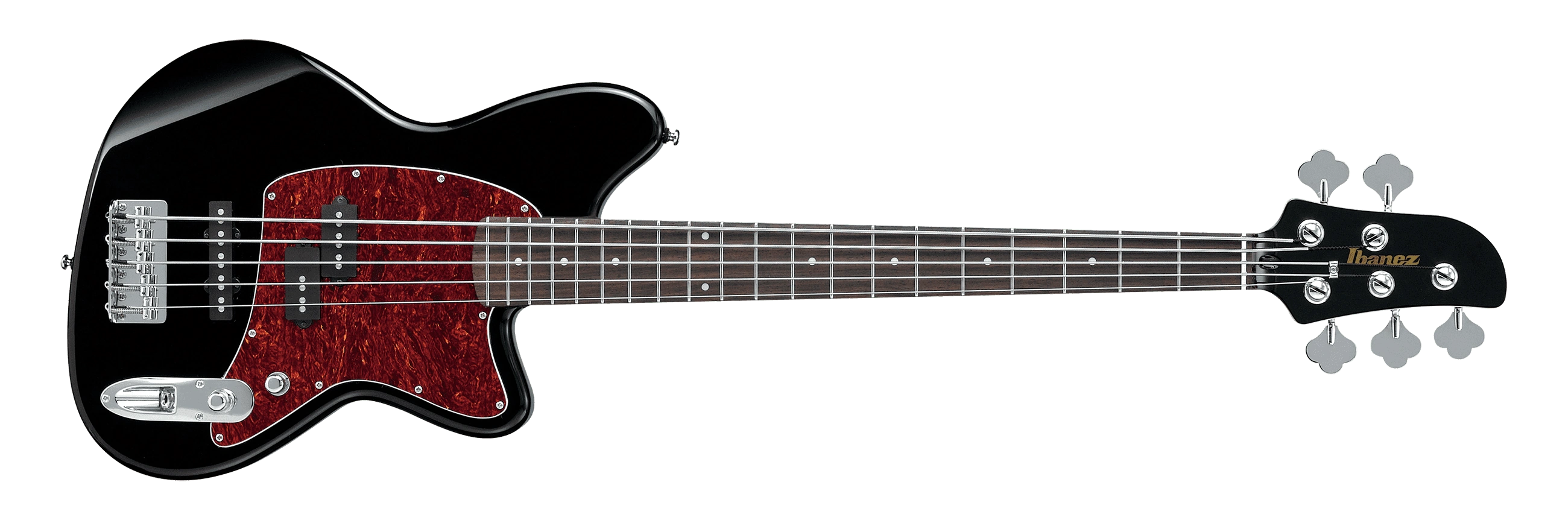

TMB105 Black Red copyright sprite

The TMB105 is a five string Talman Bass series solid body electric bass model introduced by Ibanez for 2016. It is made in Indonesia as part of the standard line.

The TMB105 features an asymmetric double-cutaway mahogany body bolted to a maple neck with a 20-fret rosewood fingerboard with white dot position markers. Components include a pair of Ibanez Dynamix passive pickups mounted in a red tortoise pickguard with a Precision pickup at the neck and a Jazz pickup at the bridge, an Ibanez custom preamp with a two-band EQ, a B15W bridge with 18mm string spacing, a plastic nut and Ibanez open tuning machines.

For 2018 the rosewood fretboard was replaced with jatoba and the body material was changed from mahogany to poplar.

The TMB100 is a similar four string model.

Specifications[]

Related content: Talman Bass series | Models-icon
Specifications for TMB105
Model name: TMB105
Year(s) offered: 2016–2024
Sold in: Americas & Oceania 2024 / Asia & Africa 2024 / China 2024 / Europe 2021, 2024 / USA
Made in: Indonesia
Price: MSRP: US$357.13 (2016)[1]
Finish(es): Black (BK)
Body
Body type:
Solid body
Body material:
2015–2017: Mahogany
2018–2024: Poplar
Neck joint:
AANJ
Bridge:
B15W (18mm string spacing)
Pickguard:
3-ply: red tortoise / white / black
Knob style:
Concentric knurled metal dome
Hardware color:
Chrome
Neck
Neck type:
TMB5
Neck material:
1-piece maple
Scale length:
864mm / 34"
Fingerboard material:
2015–2017: Rosewood
2018–2024: Jatoba
Fingerboard inlays:
White dot
Frets:
20 / medium nickel silver
Nut:
Ivory plastic (45mm)
Machine heads:
Ibanez open
Electronics/ Strings
Pickup configuration:
JP
Bridge pickup:
Ibanez Dynamix J 5 bridge (J) passive
Neck pickup:
Ibanez Dynamix P 5 neck (P) passive
Electronics:
Ibanez Custom Electronics 2-band EQ
Controls:
Concentric volume and balancer / concentric treble & bass
Battery:
9V
Output jack:
¼" stereo (angled face mount)
String gauge (factory):
2016–2023: .045/.065/.085/.105/.130
2024: .045/.065/.080/.100/.125
Factory tuning:
1G,2D,3A,4E,5B (E Standard)

Images[]

Additional details
2021 TMB105 BK 1P 03 front
Front of body

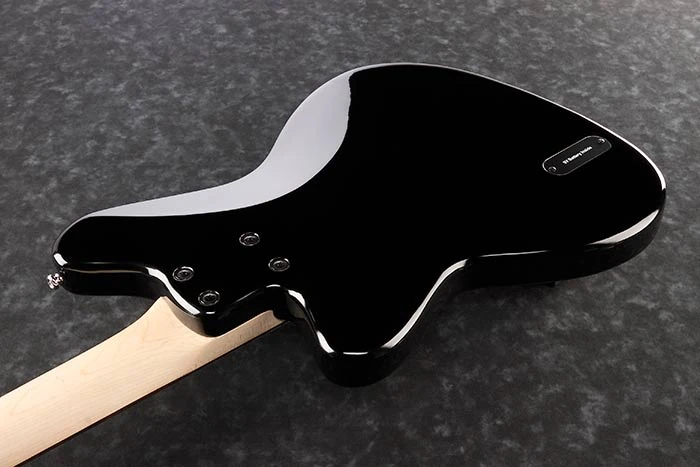

2021 TMB105 BK 1P 03 back
Rear of body

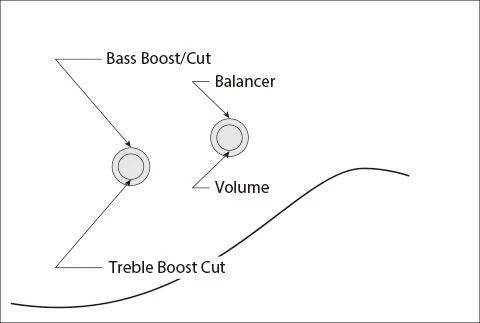

Controls TMB100
Controls layout
Frequency response SDB
EQ frequency response

Sources[]

  • TMB105 product page, Ibanez USA, archived January 2016
  • 2019 USA catalog (p. 97)
  • TMB105 product page, Ibanez USA, archived November 2019
  • TMB105 product page, Ibanez USA, archived January 2020
  • TMB105 product page, Ibanez USA, archived January 2021
  • 2021 Europe catalog (p. 99)
  • TMB105 product page, Ibanez USA, archived June 2022
  • TMB105 product page, Ibanez USA, archived January 2023
  • TMB105 product page, Ibanez Asia & Africa, archived January 2024
