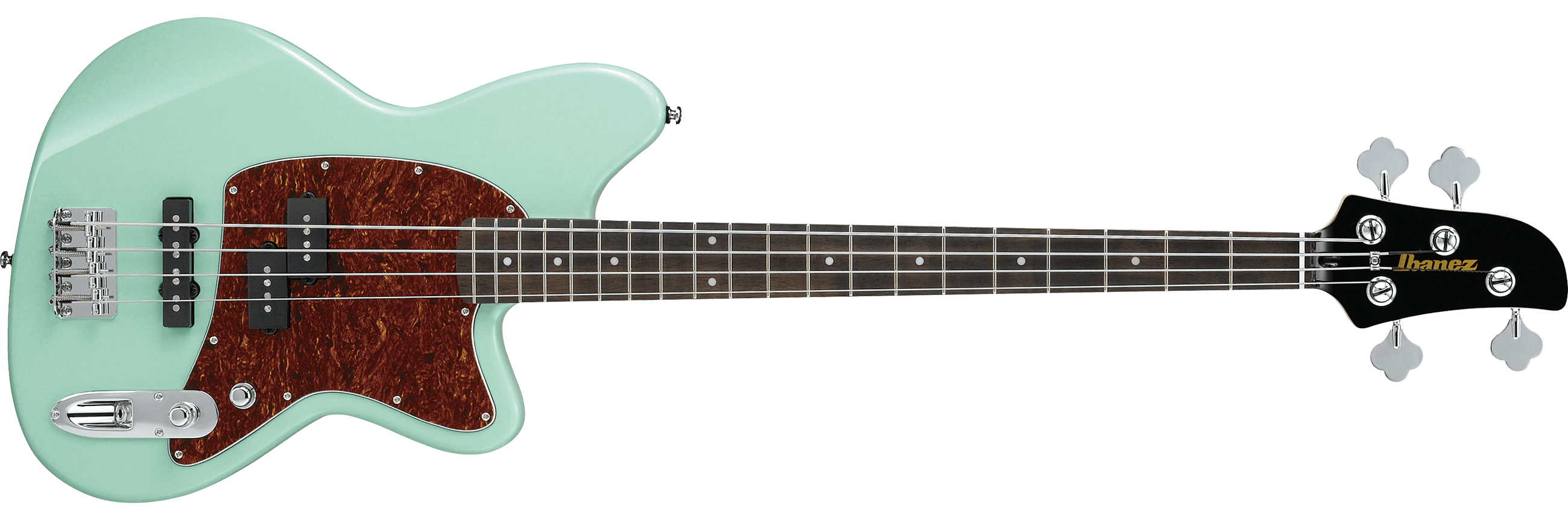

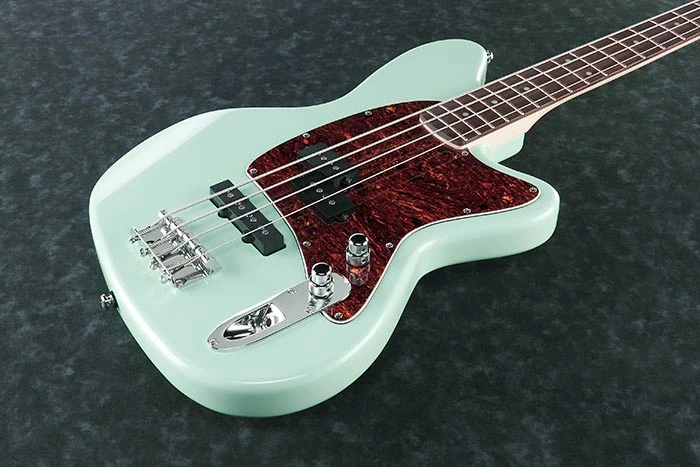

2019 TMB100 MGR 1P 03
TMB100 Mint Green (more images) Red copyright sprite

The TMB100 is a Talman Bass series solid body electric bass model introduced by Ibanez in 2015. It is made in Indonesia as part of the standard line.

The TMB100 features an asymmetric double-cutaway mahogany body bolted to a maple neck with a 20-fret rosewood fingerboard with white dot position markers. Components include a pair of Ibanez Dynamix passive pickups mounted in a tortoise pickguard with a Precision pickup at the neck and a Jazz pickup at the bridge, an Ibanez custom preamp with a two-band EQ, a B10 bridge with 19mm string spacing, a plastic nut and Ibanez open tuning machines.

For 2018 the rosewood fretboard was replaced with jatoba and the body material was changed from mahogany to poplar.

The TMB100K and TMB100P are similar models with, respectively, black and pearloid pickguards. The TMB100M is a similar model with a maple fretboard. The TMB100L is a left-handed version. The TMB105 is a similar five string model. The TMB500 is a related model with an okoume body, a roasted maple neck and fretboard and Nordstrand pickups.

Specifications

Specifications for TMB100
Year(s) produced: 2015–2020
Sold in: Asia & Africa / China / Europe / Japan / North & South America and Oceania / USA
Made in: Indonesia
Finish(es): Black (BK) / Coral Red (CRD) 2016–2018 / Ivory (IV) / Mint Green (MGR) / Soda Blue (SDL) 2016–2019 / Transparent Red (TR) 2015–2016 / Tri Fade Burst (TFB) / Walnut Flat (WNF) 2017–2019 / White (WH) 2016–2019
Body
Body type:
Solid body
Body material:
2015–2017: Mahogany
2018–2020: Poplar
Neck joint:
AANJ
Bridge:
B10 fixed (19mm string spacing)
Pickguard:
3-ply: Tortoise / white / black
Knob style:
Knurled metal dome
Hardware color:
Chrome
Neck
Neck type:
TMB4
Neck material:
1-piece maple
Scale length:
864mm / 34"
Fingerboard material:
2015–2017: Rosewood
2018–2020: Jatoba
Fingerboard inlays:
White dot
Frets:
20 / medium
Nut:
Ivory plastic (41mm)
Machine heads:
Ibanez open
Electronics/ Strings
Pickup configuration:
JP
Bridge pickup:
Ibanez Dynamix J (J) passive
Neck pickup:
Ibanez Dynamix P (P) passive
Electronics:
Ibanez Custom Electronics 2-band EQ
Controls:
Concentric volume and balancer / concentric treble & bass
Battery:
9V
Output jack:
1/4" stereo (angled top mount)
String gauge (factory):
.045/.065/.085/.105
Factory tuning:
1G,2D,3A,4E

Images

Additional finishes/ details

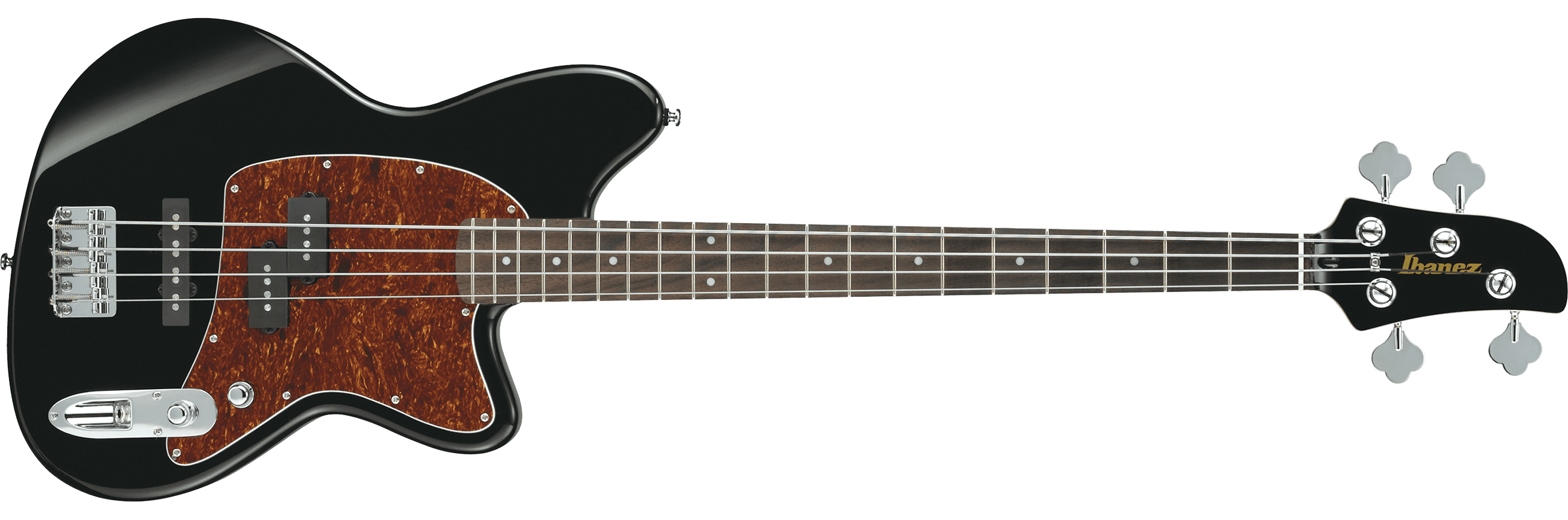

2019 TMB100 BK 1P 03
Black

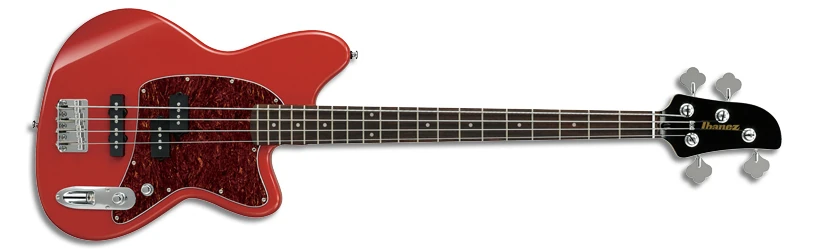

2017 TMB100 CRD 1P 03
Coral Red

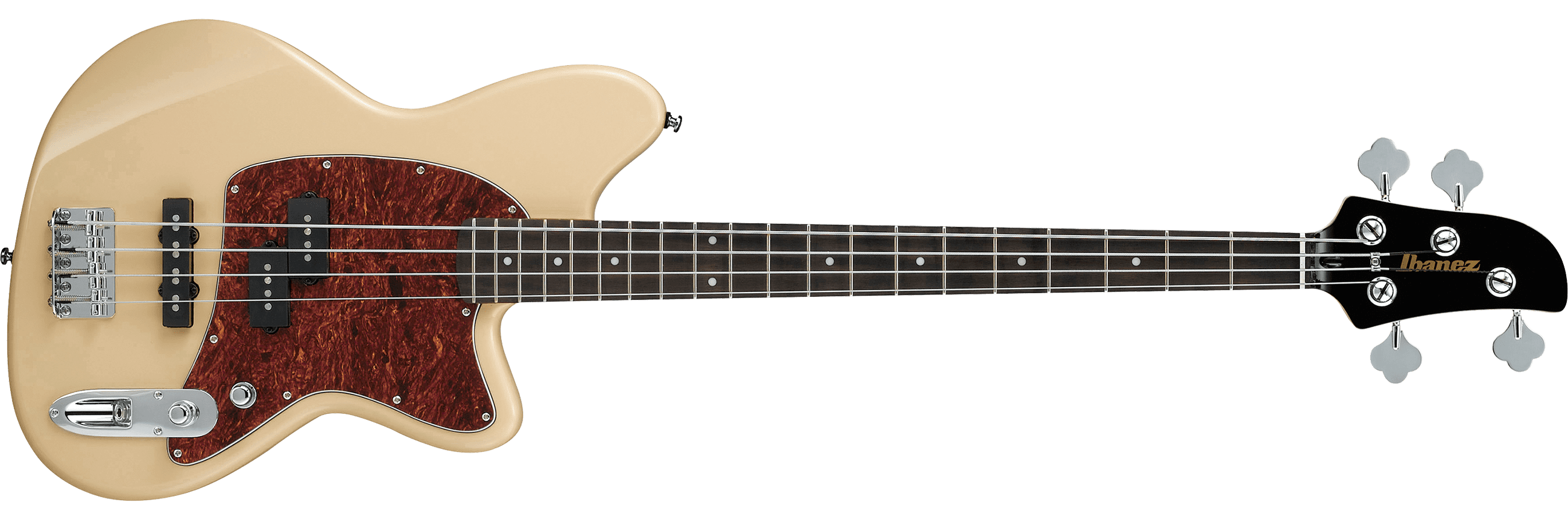

2019 TMB100 IV 1P 03
Ivory
2019 TMB100 SDL 1P 03
Soda Blue

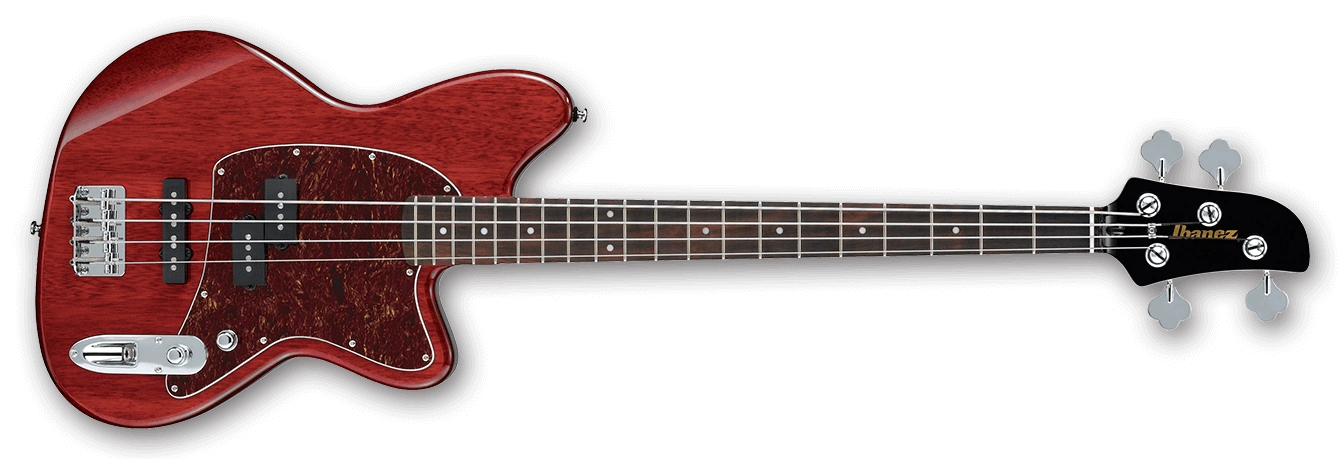

2016 TMB100 TR 1P 01
Transparent Red

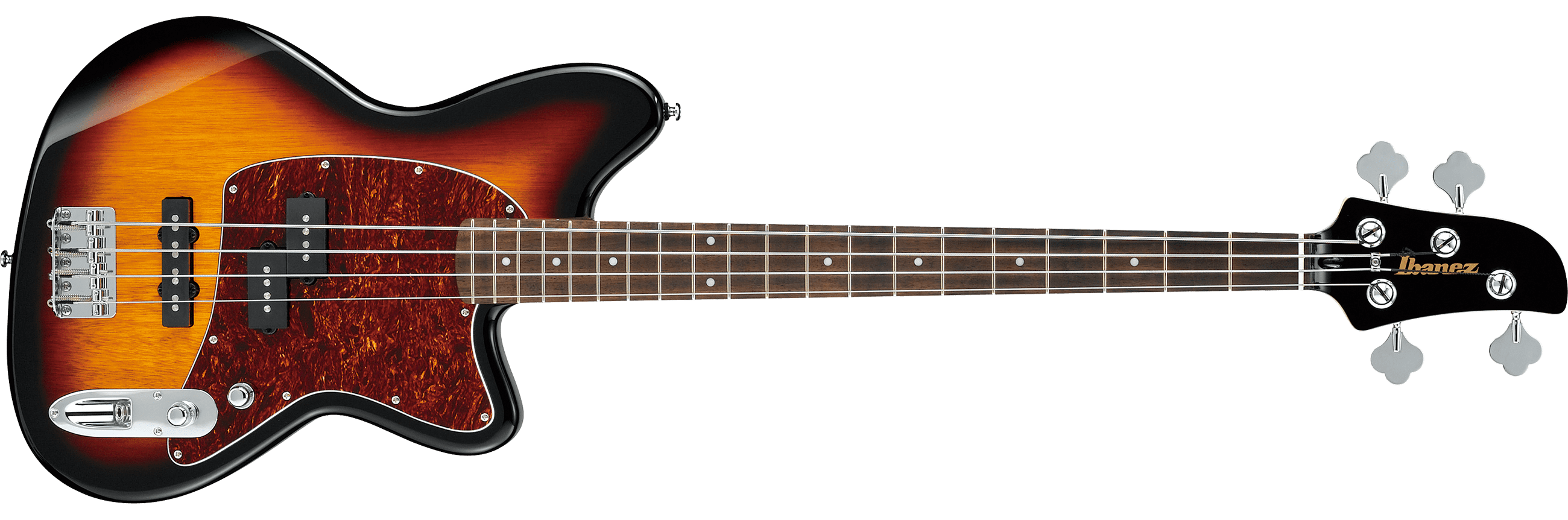

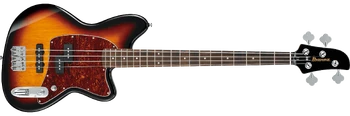

2019 TMB100 TFB 1P 03
Tri Fade Burst

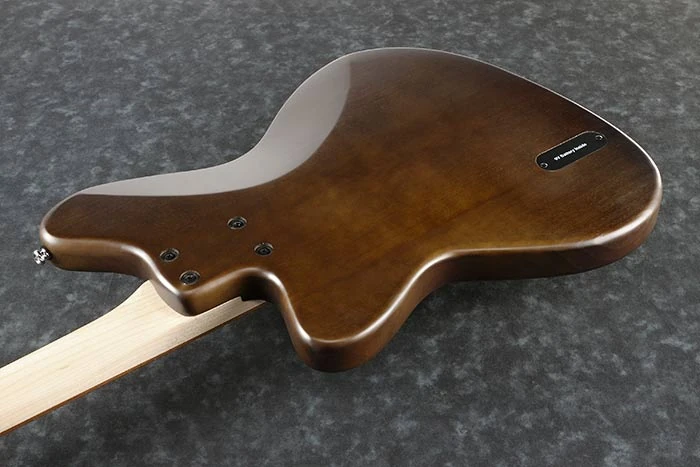

2019 TMB100 WNF 1P 03
Walnut Flat

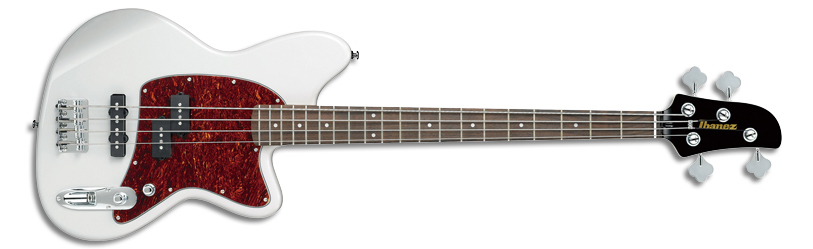

2019 TMB100 WH 1P 04
White
Controls TMB100
Controls layout
Frequency response SDB
EQ frequency charts

Video

Ibanez Talman Bass TMB100

Ibanez Talman Bass TMB100
