2003 TM81 LS 12 01

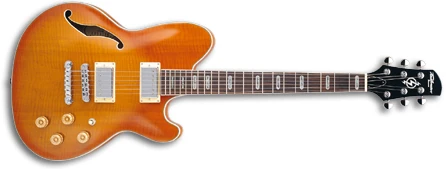

TM81 Lite Sunburst (more images) Red copyright sprite

The TM81 is an Artcore series hollow body electric guitar model introduced by Ibanez in late 2002. It was made in China.

The TM81 has a semi-hollow body with an off-set, single-cutaway shape inspired by the Talman series solid body guitars. It features an arched, laminated flamed sycamore top with a single ƒ hole and ivory multi-binding on flamed sycamore back and sides mated to a set-in mahogany neck with a 22-fret rosewood fingerboard with ivory binding and abalone bar position markers. Components include a pair of Ibanez Artcore humbucking pickups with chrome covers mounted in black plastic pickup rings, an ART-1 Tune-o-matic style bridge with a Quik Change tailpiece, a plastic nut, gold speed knobs, and Ibanez tuning machines with half moon buttons.

The TM71 is a related model with a maple body, dot fretboard inlays and black knobs.

This TM81 was discontinued after 2003.

Specifications[]

Related content: Artcore series | Models-icon
Specifications for TM81
Year(s) offered: 2002–2003
Sold in: Asia & S. America / Europe
Made in: China
Finish(es): Lite Sunburst (LS) 2003 / Vintage Sunburst [?] (VS)
Body
Body type:
Hollow body
Dimensions:
  Depth: 44mm/ 1¾" (43mm at tail)
Top:
  Material: Flamed sycamore (laminated)
  Binding: Ivory multi-ply
Back/sides:
  Material: Flamed sycamore (laminated)
Neck joint:
Set-in
Bridge:
ART-1
Tailpiece:
Quik Change III
Knob style:
Speed (gold)
Hardware color:
Chrome
Neck
Neck type:
Artcore TM
Neck material:
1-piece mahogany
Scale length:
628mm/ 24¾"
Fingerboard material:
Rosewood w/ ivory binding
Fingerboard inlays:
Abalone bar
Frets:
22 / medium
Nut:
Ivory plastic (43mm)
Machine heads:
Ibanez die-cast w/ half-moon buttons
Electronics/ Strings
Pickup configuration:
HH
Bridge pickup:
Ibanez ACH2 (H) passive/ceramic
Neck pickup:
Ibanez ACH1 (H) passive/ceramic
Controls:
Two volumes / two tones / 3-way toggle pickup selector
Output jack:
¼" mono (side mounted)
Factory tuning:
1E,2B,3G,4D,5A,6E (E Std.)

Images[]

Additional finishes/ details
Vintage Sunburst (?)
HH 3-way toggle
Pickup switching

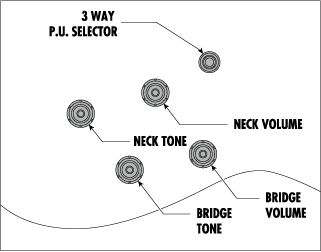

Controls 2V2T3
Control layout
Wimage An image for this article is missing!
An image of the TM81 Vintage Sunburst (VS) is wanted for this article. You can help by finding, uploading and adding it!
