2003 TM71T JBT 12 01

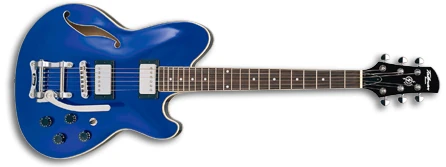

TM71T Jewel Blue Top Red copyright sprite

The TM71T is an Artcore series hollow body electric guitar model introduced by Ibanez for 2002. It was made in China.

The TM71T has a semi-hollow body with an off-set, single-cutaway shape inspired by the Talman series solid body guitars. It features an arched, laminated maple top with a single ƒ hole and ivory multi-binding on maple back and sides mated to a set-in mahogany neck with a 22-fret rosewood fingerboard with ivory binding and white dot position markers. Components include a pair of Ibanez Artcore humbucking pickups with chrome covers mounted in black plastic pickup rings, an ART-2 roller bridge with a vibrato tailpiece, a plastic nut, black speed knobs, and Ibanez tuning machines with half moon buttons.

The TM71 is a similar model without the vibrato tailpiece.

This TM71T was discontinued after 2003.

Specifications

Specifications for TM71T
Year(s) produced: 2002–2003
Sold in: Asia & S. America / Europe / Japan / USA
Made in: China
Finish(es): Jewel Blue Top (JBT) w/ black back/sides
Body
Body type:
Hollow body
Dimensions:
  Depth: 44mm/ 1¾" (43mm at tail)
Top:

  Material: Maple (laminated)
  Binding: Ivory multi-ply

Back/sides:

  Material: Maple (laminated)

Neck joint:
Set-in
Bridge:
ART-2 roller
Tailpiece:
VBX60 vibrato
Knob style:
Speed (black)
Hardware color:
Chrome
Neck
Neck type:
Artcore TM
Neck material:
1-piece mahogany
Scale length:
628mm/ 24¾"
Fingerboard material:
Rosewood w/ ivory binding
Fingerboard inlays:
White dot
Frets:
22 / medium
Nut:
Ivory plastic (43mm)
Machine heads:
Ibanez die-cast w/ half-moon buttons
Electronics/ Strings
Pickup configuration:
HH
Bridge pickup:
Ibanez ACH2 (H) passive/ceramic
Neck pickup:
Ibanez ACH1 (H) passive/ceramic
Controls:
2 volume / 2 tone / 3-way toggle
Output jack:
¼" mono (side mounted)
Factory tuning:
1E,2B,3G,4D,5A,6E (E Std.)

Images

Additional details
HH 3-way toggle
Pickup switching
Controls 2V2T3
Control layout
