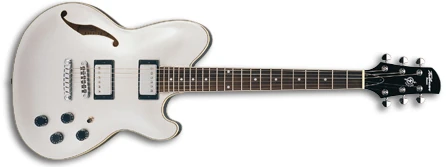

2003 TM71 SVT 12 01
TM71 Silver Top (more images) Red copyright sprite

The TM71 is an Artcore series hollow body electric guitar model introduced by Ibanez for 2002. It was made in China.

The TM71 has a semi-hollow body with an off-set, single-cutaway shape inspired by the Talman series solid body guitars. It features an arched, laminated maple top with a single ƒ hole and ivory multi-binding on maple back and sides mated to a set-in mahogany neck with a 22-fret rosewood fingerboard with ivory binding and white dot position markers. Components include a pair of Ibanez Artcore humbucking pickups with chrome covers mounted in black plastic pickup rings, an ART-1 Tune-o-matic style bridge with a Quik Change tailpiece, a plastic nut, black speed knobs, and Ibanez tuning machines with half moon buttons.

The TM71T is a similar model with a vintage vibrato. The TM81 is a related model with a flamed sycamore body, different fretboard inlays and gold knobs.

This TM71 was discontinued after 2003. The somewhat similar TXD71 was introduced in 2003.

Specifications

Specifications for TM71
Year(s) produced: 2002–2003
Sold in: Asia & S. America / Europe / Japan / USA
Made in: China
Finish(es): Black (BK) 2003 / Gold Top (GDT) w/ black back/sides / Jewel Blue Top (JBT) w/ black back/sides / Silver Top (SVT) w/ black back/sides
Body
Body type:
Hollow body
Dimensions:
  Depth: 44mm/ 1¾" (43mm at tail)
Top:

  Material: Maple (laminated)
  Binding: Ivory multi-ply

Back/sides:

  Material: Maple (laminated)

Neck joint:
Set-in
Bridge:
ART-1
Tailpiece:
Quik Change III
Knob style:
Speed (black)
Hardware color:
Chrome
Neck
Neck type:
Artcore TM
Neck material:
1-piece mahogany
Scale length:
628mm/ 24¾"
Fingerboard material:
Rosewood w/ ivory binding
Fingerboard inlays:
White dot
Frets:
22 / medium
Nut:
Ivory plastic (43mm)
Machine heads:
Ibanez die-cast w/ half-moon buttons
Electronics/ Strings
Pickup configuration:
HH
Bridge pickup:
Ibanez ACH2 (H) passive/ceramic
Neck pickup:
Ibanez ACH1 (H) passive/ceramic
Controls:
2 volume / 2 tone / 3-way toggle
Output jack:
¼" mono (side mounted)
Factory tuning:
1E,2B,3G,4D,5A,6E (E Std.)

Images

Additional finishes/ details

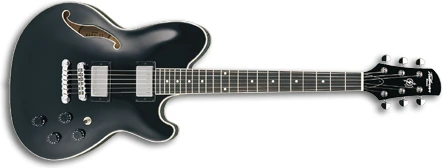

2003 TM71 BK 12 01
Black

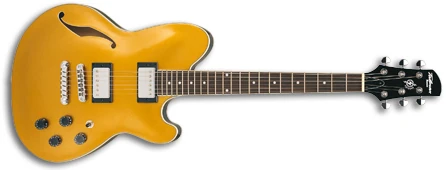

2003 TM71 GDT 12 01
Gold Top

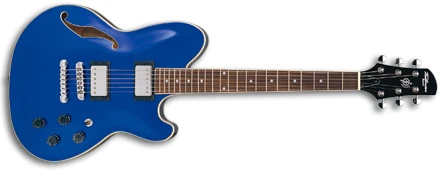

2003 TM71 JBT 12 01
Jewel Blue Top
HH 3-way toggle
Pickup switching
Controls 2V2T3
Control layout
