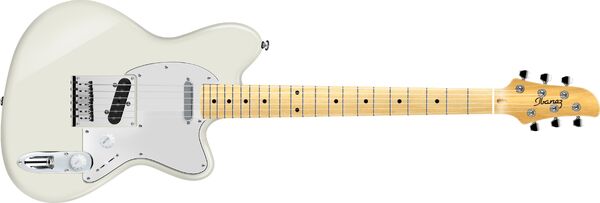

2016 TM302M IV

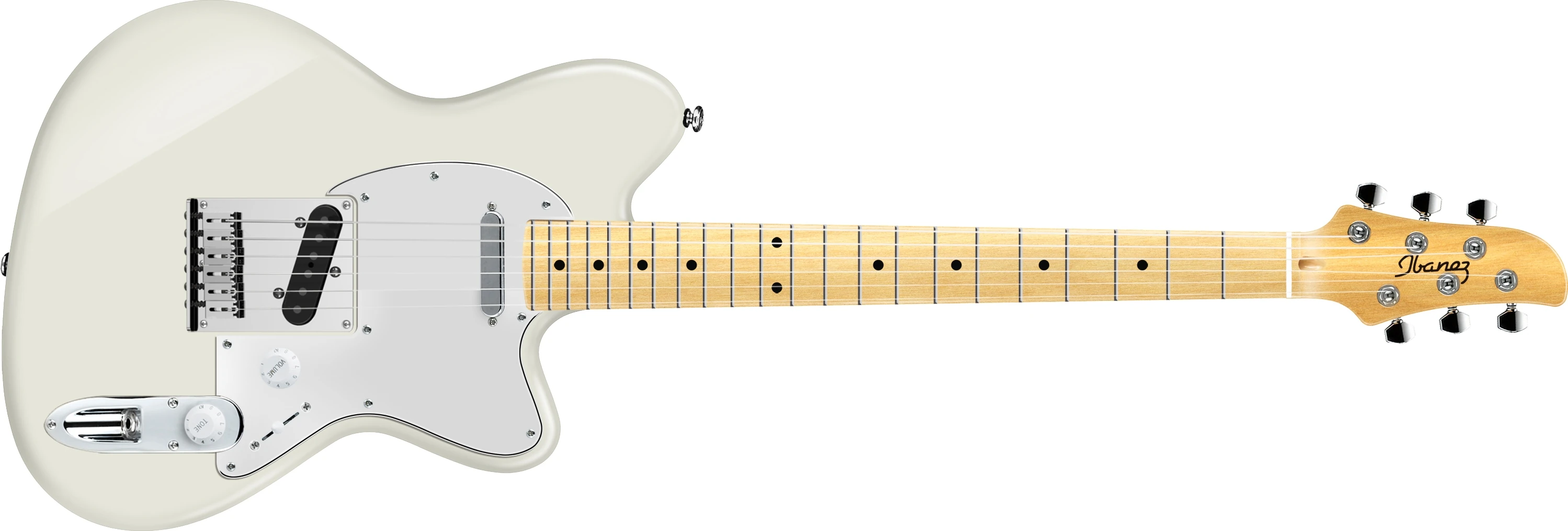

TM302M Ivory (more images) Red copyright sprite

The TM302M is a Talman series solid body electric guitar model introduced by Ibanez in mid 2015. It represents the reintroduction of the series which had been discontinued in 1998. It was produced in China.

The TM302M features an alder body bolted to a maple neck with a 22-fret maple fingerboard with black dot position markers. Components include a Telecaster style fixed bridge with six independent saddles, dual Ibanez Custom Vintage single coil pickups mounted in a white pickguard, a bone nut and locking tuners.

Design elements

The headstock of the TM302M features a straight-pull design, which allows the strings to come straight off the bone nut, eliminating the need for a string tree or a tilt-back design. The fretboard has a 12" (305mm) radius meaning it is flatter compared to traditional styled guitars from other brands which enhances the player's ability to bend notes and allows for a lower string action. The Fast Action neck joint improves access to the upper frets compared to a standard square heel joint.

Related models

The TM302BM (black pickguard) and TM302PM (pearloid pickguard) are similar except for the color of the pickguard and finish. The TM302 is another similar model with a rosewood fretboard. The TM302HM is a semi-hollow body guitar with similar specifications. The TM303M is a related model which adds a middle pickup.

The TM302M was discontinued after 2017 along with all but a couple of Talman models.

Specifications

Specifications for TM302M
Year(s) produced: 2015–2017
Sold in: USA
Made in: China
Finish(es): Antique Red (ANR) 2015–2016 / Ivory (IV) / Sea Foam Green (SFG) 2015–2016 / Tri Fade Burst (TFB)
Body
Body type:
Solid body
Body material:
Alder
Neck joint:
Fast Access
Bridge:
IFX10 fixed
Pickguard:
3-ply white/ black/ white
Hardware color:
Nickel/ white knobs
Neck
Neck type:
Talman Classic-Plus
Neck material:
1-piece maple
Scale length:
648mm/ 25½"
Fingerboard material:
Maple
Fingerboard inlays:
Black dot
Frets:
22 / medium
Nut:
Bone
Machine heads:
Locking
Electronics/ Strings
Pickup configuration:
SS
Bridge pickup:
Custom Vintage Single (S)
Neck pickup:
Custom Vintage Single (S)
Controls:
Master volume / master tone / 3-way toggle
String gauge (factory):
.010–.046

Images

Other available finishes

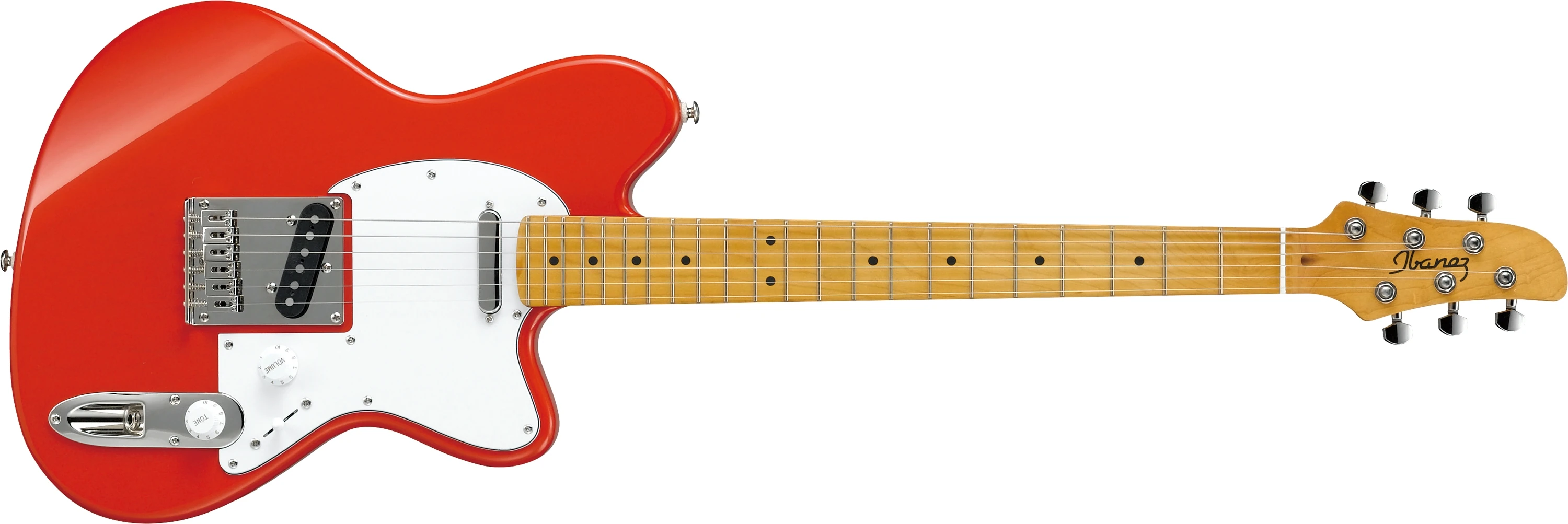

2016 TM302M ANR
Antique Red

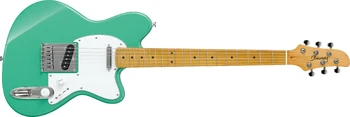

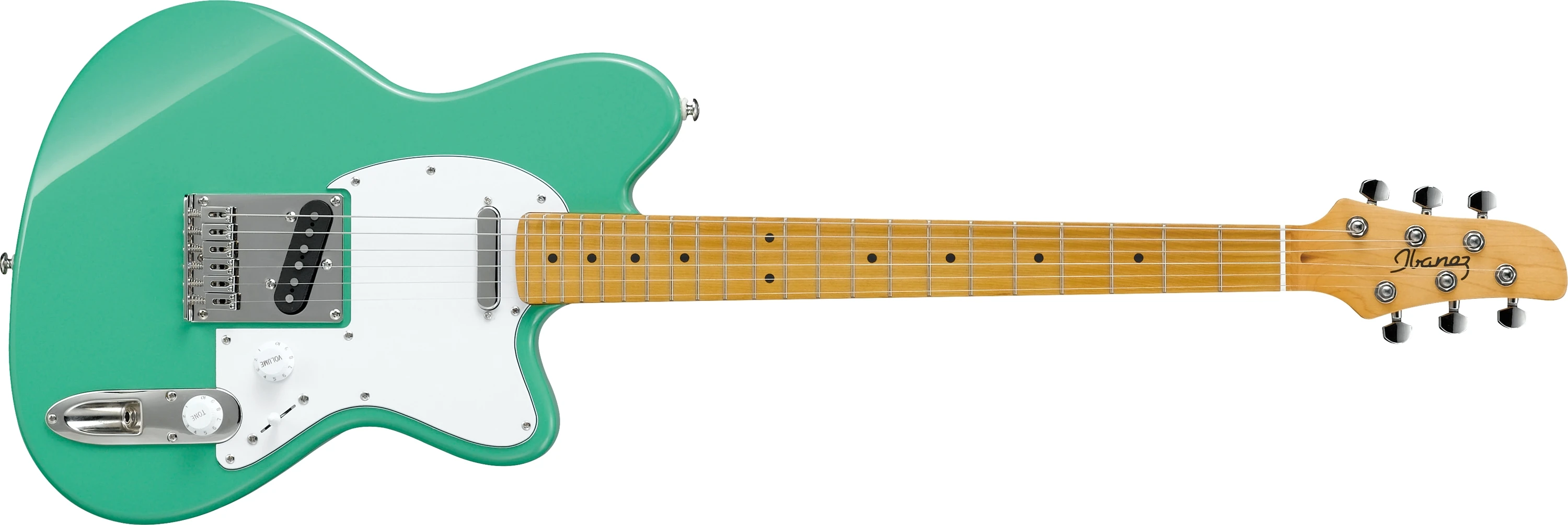

2016 TM302M SFG
Sea Foam Green

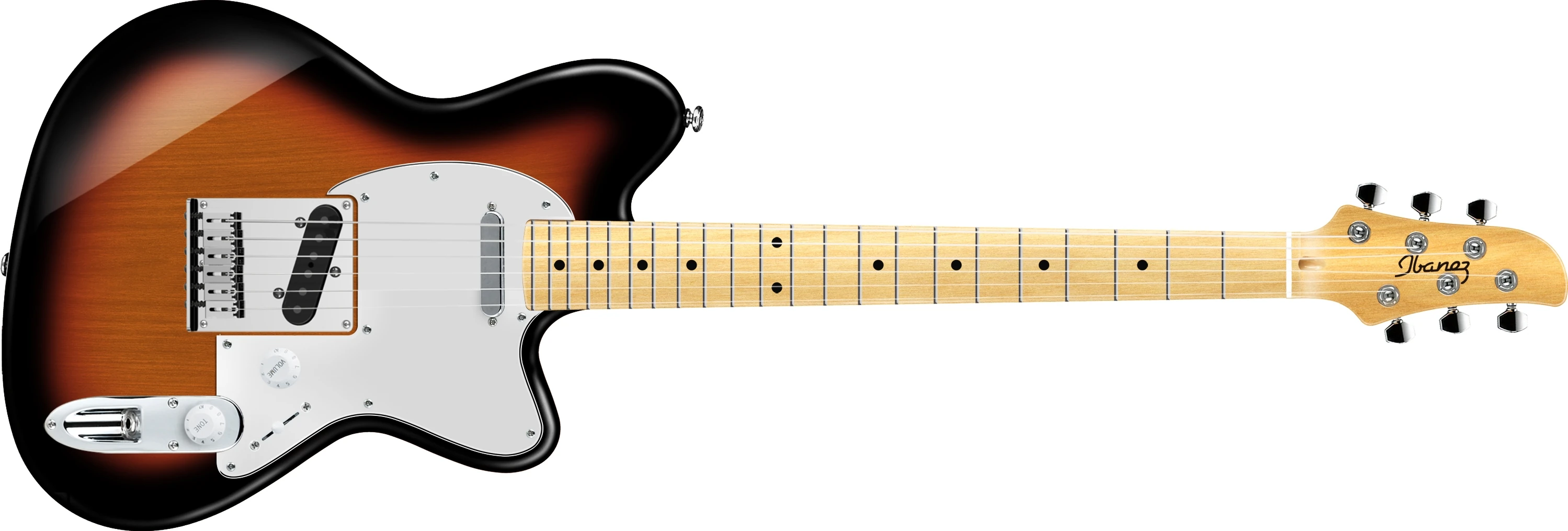

2016 TM302M TFB
Tri Fade Burst
