2019 TCY10E BK 2Y 09
TCY10E Black High Gloss (more images) Red copyright sprite

The TCY10E is a Talman acoustic series acoustic/electric guitar model introduced by Ibanez for 2008. It is made in China.

The TCY10E features a double cutaway body with a laminated spruce top with an oval soundhole on mahogany back and sides. The mahogany neck has a 20-fret rosewood fingerboard with binding and white dot position markers. Components include a compensated Ivorex II saddle in a rosewood bridge with Ibanez Advantage bridge pins, an Ivorex II nut, and chrome Ibanez tuning machines. Electronics consist of an Ibanez under saddle pickup connected to an Ibanez AEQ200T preamp with 2-band EQ and on-board tuner powered by a 9V battery and a ¼" stereo end-pin output jack.

For 2013 the Ivorex II nut and saddle were replaced with plastic and the tuners were replaced with Ibanez die-cast tuners with half moon buttons. For 2015 the preamp was replaced with the Ibanez AEQ2T. For 2018 the rosewood fretboard and bridge was replaced with purpleheart. For 2019 the mahogany neck was replaced with okoume.

The TCY10 is a similar model without the on-board tuner. The TCY10EDX is a similar model with sharktooth fretboard inlays. The TCY10G is a similar model with gold hardware. The TCY15E is a similar model with black tuner buttons and solid finishes. The TCY12E is a related model with a mahogany or sapele top.

Specifications

Specifications for TCY10E
Years: 2008–2020
Sold in: Asia & Africa / China / Europe / North & South America and Oceania / USA
Made in: China
Finishes: Antique Violin Sunburst (AVS) 2016–2019 / Black High Gloss (BK) / Metallic Silver Sunburst (MSS) 2013 / Natural High Gloss (NT) 2015–2016 / (PW) 2010 / Transparent Blue Sunburst High Gloss (TBS)
Body
Body type:
Acoustic
Body shape:
Talman double cutaway
Dimensions:
  Length: 460mm/ 18⅛"
  Width: 368mm/ 14½"
  Depth: 89mm/ 3½" (76mm at neck, 90mm at body end)
Top:

  Material: Spruce (laminated)
  Binding: White

Back/sides:

  Material: 2008–2017: Mahogany
                2018–2020: Sapele

Soundhole shape:
Oval
Neck
Neck profile:
TCY
Neck material:
2008–2018: 1-piece mahogany
2019–2020: 1-piece okoume
Scale length:
650mm/ 25.6"
Fingerboard:
2008–2017: Rosewood w/ binding
2018–2020: Purpleheart w/ binding
Inlays:
White dot
Frets:
20
Nut:
2008–2012: Ivorex II (42mm)
2013–2020: Plastic (43mm)
Machine heads:
2008–2012 Ibanez Smooth Tuner AS
2013–2020:Ibanez die-cast w/ half moon buttons
Electronics/ Components
Pickup:
Ibanez AP2 magnetic
Preamp:
2008–2014: Ibanez AEQ200T w/ 2-band EQ & on-board tuner
2015–2020: Ibanez AEQ-2T w/ 2-band EQ & on-board tuner
Output jack(s):
¼" stereo end-pin
Battery:
9V
Bridge:
2008–2017: Rosewood
2018–2020: Purpleheart (11mm string spacing)
Bridge pins:
Ibanez Advantage (white w/ black dot)
Saddle:
2008–2012: Ivorex II compensated
2013–2020 Plastic compensated
Hardware color:
Chrome
Strings (factory):
.012/.016/.024/.032/.042/.053
Factory tuning:
1E,2B,3G,4D,5A,6E (E Std.)

Images

Additional finishes/ details

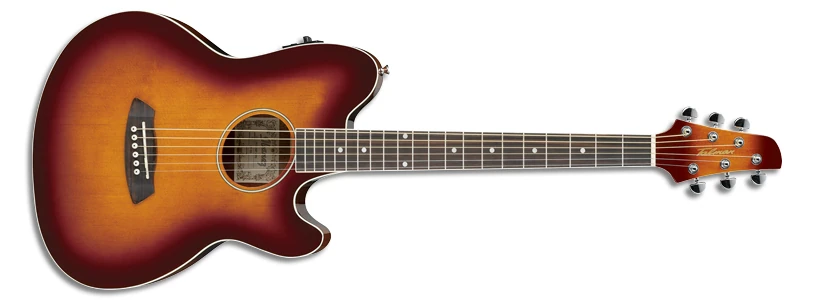

2018 TCY10E AVS 2Y 08
Antique Violin Sunburst

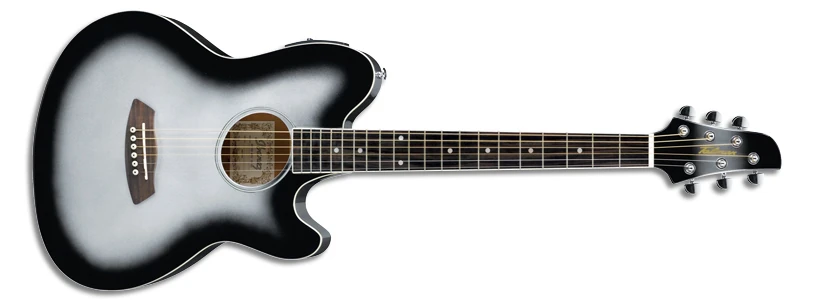

2013 TCY10E MSS 2Y 03
Metallic Silver Sunburst

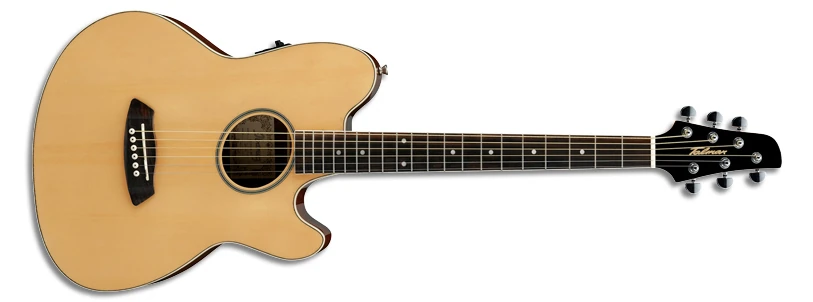

2016 TCY10E NT 2Y 04
Natural High Gloss

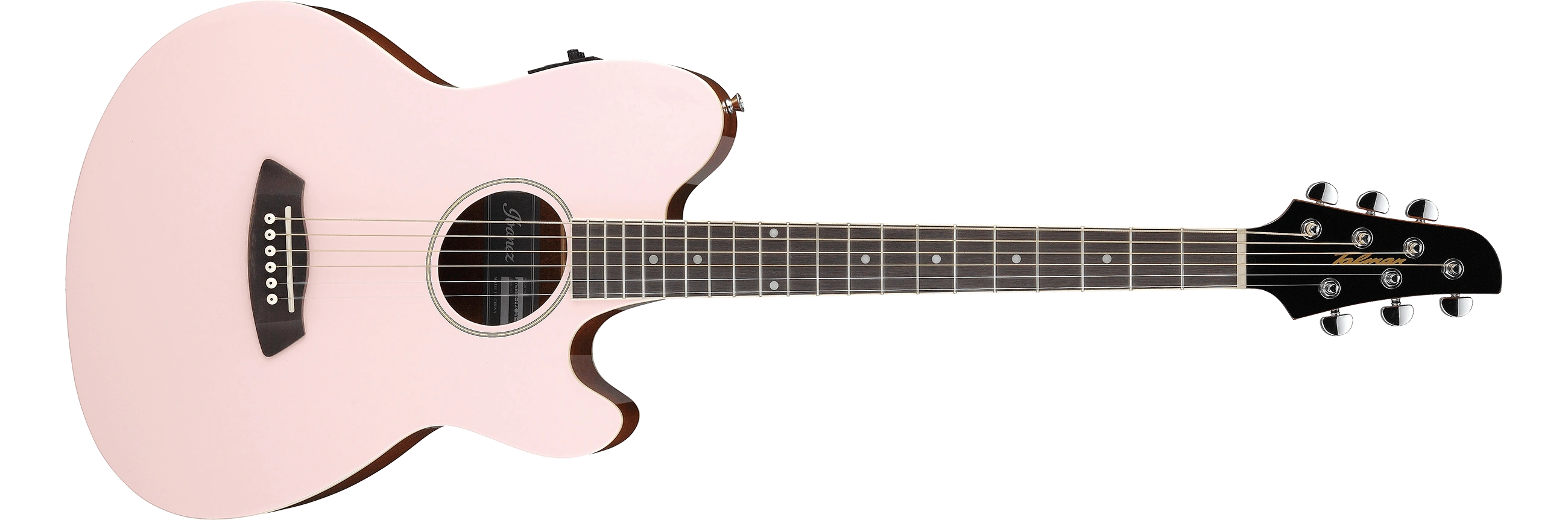

Pearl White

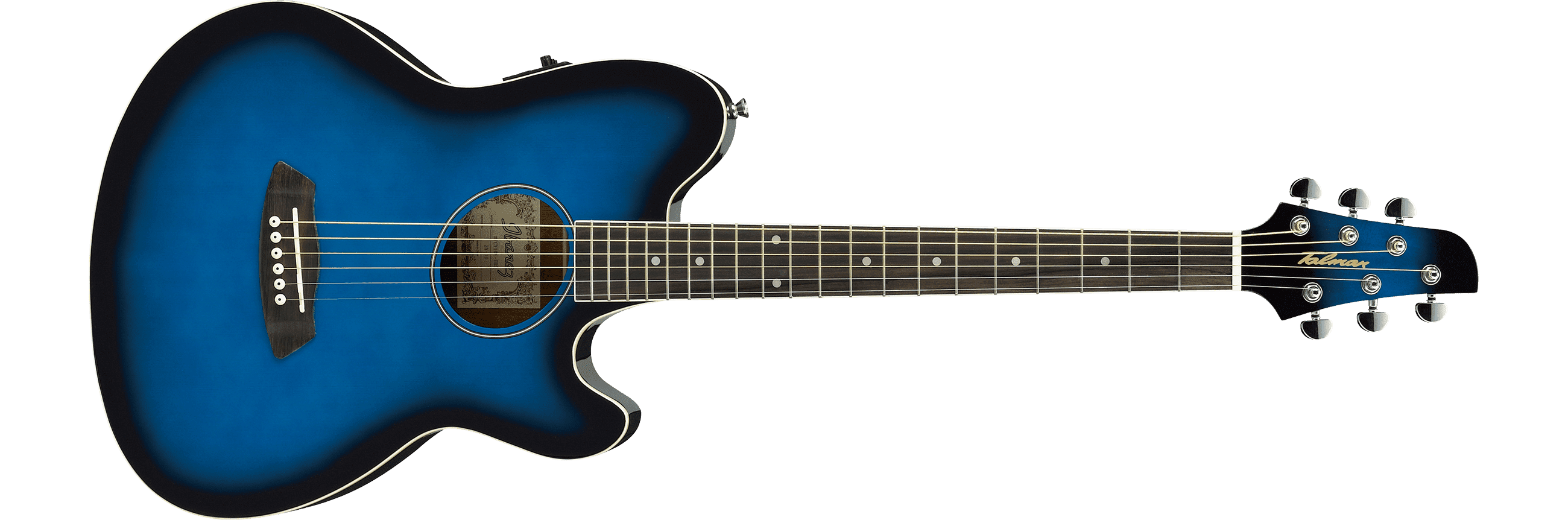

2019 TCY10E TBS 2Y 09
Transparent Blue Sunburst
AEQ200T preamp
AEQ200T preamp controls
Ibanez AEQ-2T diagram
AEQ2T preamp controls
Ivorex-II-nut
Ivorex II nut
Wimage An image for this article is missing!
An image of the Talman TCY10E Pearl White (PW) is wanted for this article. You can help by finding, uploading and adding it!
