TCM50FM

TCM50FM Open Pore Denim Blue (more images)

The TCM50FM is a Talman acoustic series acoustic/electric guitar model introduced by Ibanez in mid-2024. It is produced in China.

The TCM50FM features a double cutaway body with a flamed maple top with a tri-oval soundhole and a basswood marquetry pickguard on sapele sides and back. The okoume neck has a 20-fret purpleheart fingerboard with binding and white dot position markers. Components include a compensated plastic saddle in a purpleheart bridge with Ibanez Advantage bridge pins, a plastic nut, and chrome Ibanez tuning machines.

Electronics consist of an Ibanez AP2 magnetic pickup connected to an Ibanez AEQ-2TM preamp with with an onboard tuner and 2-band EQ powered by a 9V battery, and feeding a ¼" output jack.

The TCM50 is a similar model with a figured ash top.

Specifications

Related content: Talman acoustic series | Talman series |

Specifications for TCM50FM

Name: TCM50FM Year(s) offered: 2024–2025 Sold in: Americas & Oceania / Asia & Africa / Europe / USA Made in: China Price: SMAP: € 369 (2024) / US$329.99 (2025) Finishes: Open Pore Denim Blue (ODB)
Body Body type: Acoustic Body shape: Talman double cutaway Dimensions:   Body length: 460mm/ 18⅛"   Width: 365mm/ 14⅜"   Depth: 92mm/ 3⅝" Top:   Material: Flamed maple (laminated)   Binding: White Back/sides:   Material: Sapele (laminated) Soundhole shape: Tri-oval Soundhole rosette: Basswood marquetry	Neck Neck profile: TCM Neck material: 1-piece okoume Neck joint: Dovetail at 16th fret Scale length: 650mm/ 25.6" Fingerboard: Purpleheart Inlays: White dot Frets: 20 nickel silver Nut: Plastic (42mm) Machine heads: Ibanez die-cast	Electronics/ Components Pickup: Ibanez AP2 magnetic Preamp: Ibanez AEQ-2TM w/ 2-band EQ and onboard tuner Output jack(s): ¼" endpin stereo Battery: 9V Bridge: Purpleheart (11mm string spacing) Bridge pins: Ibanez Advantage bridge pins (white w/ black dot) Saddle: Plastic compensated Hardware color: Chrome Strings (factory): .012/.016/.024/.032/.042/.053 Factory tuning: 1E,2B,3G,4D,5A,6E (E Std.)

Images

Additional details

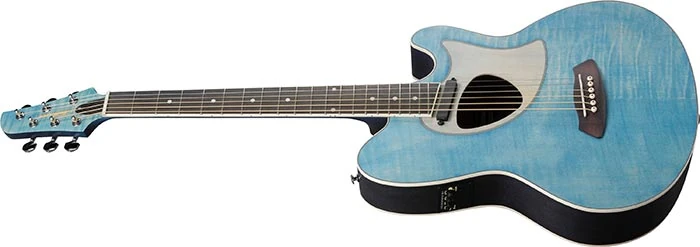

Front ¾ view

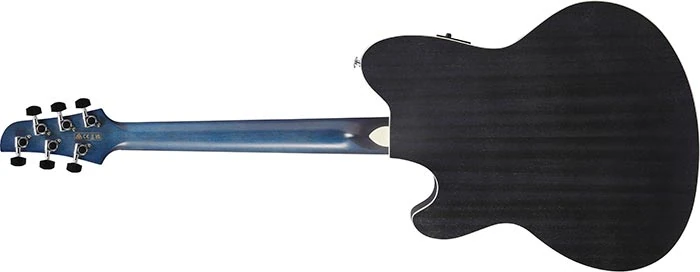

Rear of body

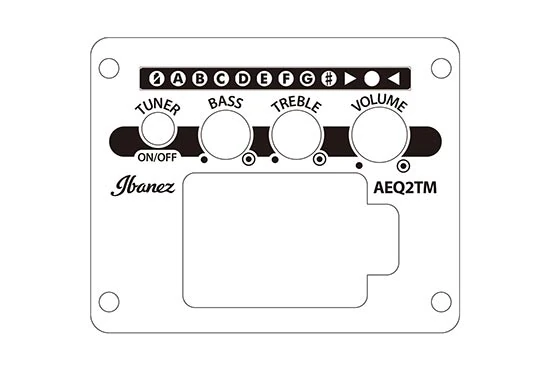

AEQ2TM preamp controls

Sources

• TCM50FM product page, Ibanez Europe, archived June 2024
• TCM50FM product page, Ibanez USA, archived January 2025
