SZR720

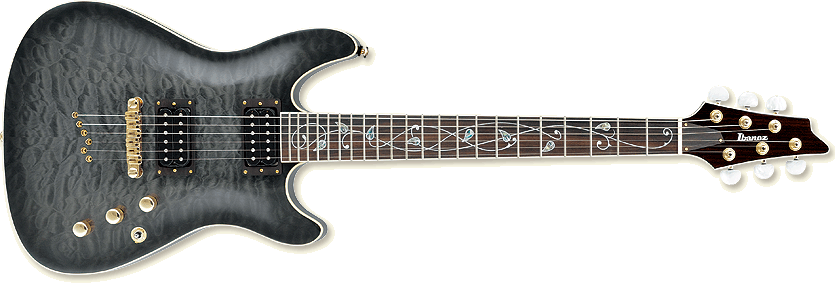

SZR720 Transparent Gray Burst (more images)

The SZR720 is an SZR series solid body electric guitar model introduced by Ibanez in 2008.

The SZR720 features a mahogany body with binding mated to a set-in mahogany neck with a 22-fret rosewood fingerboard with binding and special vine inlays. Components include a pair of Ibanez Neo-Z humbucking pickups mounted in rosewood pickup rings and a Gibraltar III fixed bridge with through-body string routing.

The SZR520 is a similar model with a flame maple top and dot fretboard inlays; it is the only other model in the SZR series.

Both SZR models were discontinued after 2009.

Specifications

Related content: SZR series |

Specifications for SZR720

Year(s) offered: 2008–2009 Sold in: North & South America and Oceania / USA Made in: China Finish(es): Blackberry (BB) / Transparent Gray Burst (TGB)
Body Body type: Solid body Body material: Mahogany w/ quilted maple top w/ binding Neck joint: Set-in Bridge: Gibraltar III fixed Hardware color: Gold	Neck Neck type: SZR Neck material: 1-piece mahogany Scale length: 628mm/ 24¾" Fingerboard material: Rosewood w/ binding Fingerboard inlays: Vine Frets: 22 / medium	Electronics Pickup configuration: HH Bridge pickup: Ibanez ND1-B (H) Neck pickup: Ibanez ND1-N (H) Controls: Two volumes / master tone / 3-way toggle pickup selector

About this table

Images

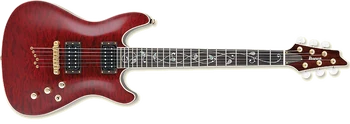

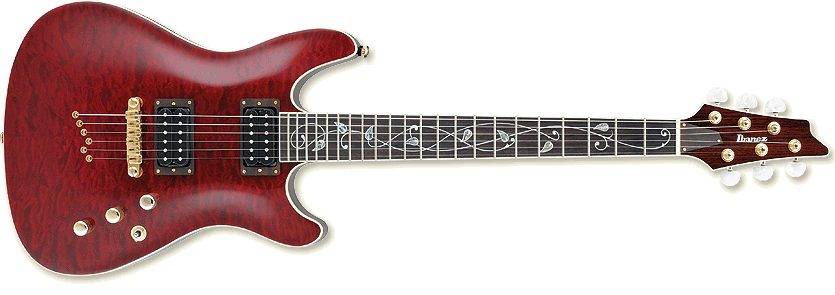

SZR720 Blackberry

Sources

• 2009 North America catalog (page 30)
