SZ4020FM CKF
SZ4020FM Charcoal Black Flat (more images) Red copyright sprite

The SZ4020FM is a SZ series solid body electric guitar model introduced by Ibanez for 2006. It was made in South Korea by World Musical Instrument Company as part of the upscale Prestige line.

The SZ4020FM features neck-through-body construction with mahogany wings topped with flamed maple mated to a maple and walnut neck with a 22-fret rosewood fingerboard with binding and a special SZ Prestige inlay only at the 12th fret. Components include a Gibraltar Custom fixed bridge, a pair of humbucking pickups specially designed and made for the SZ series by Seymour Duncan, a plastic nut and Gotoh tuning machines with height-adjustable posts.

It replaced the SZ2020FM which is a similar model with a set-in neck.

The SZ4020FM was discontinued after 2007.

Specifications[]

Related content: Prestige series | SZ series | S series | Models-icon
Specifications for SZ4020FM
Model name: SZ4020FM
Year(s) offered: 2006–2007
Sold in: Europe / Japan / USA
Made in: South Korea
Finish(es): Charcoal Black Flat (CKF) 2007 / Natural Flat (NTF) / Transparent Black Flat (TKF) 2006
Body
Body type:
Solid body
Body material:
Mahogany body w/ flamed maple top
Neck joint:
Neck-thru
Bridge:
Gibraltar Custom fixed
Tailpiece:
Quik Change III
Knob style:
Knurled metal dome
Hardware color:
Cosmo black
Neck
Neck type:
SZ
Neck material:
5-piece maple/ walnut
Scale length:
638mm/ 25.1"
Fingerboard material:
Rosewood w/ binding
Fingerboard inlays:
SZ Prestige on 12th fret
Frets:
22 / large
Nut:
Black plastic (43mm)
Machine heads:
Gotoh SG503 H.A.P.
Factory tuning:
1E,2B,3G,4D,5A,6E (E Std.)
Electronics
Pickup configuration:
HH
Bridge pickup:
Seymour Duncan IBZ (H)
Neck pickup:
Seymour Duncan IBZ (H)
Controls:
Two volumes / master tone / 3-way toggle pickup selector
Output jack:
¼" mono barrel (side mounted)

Images[]

Other available finishes

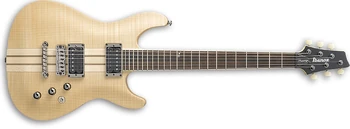

SZ4020FM NTF
Natural Flat

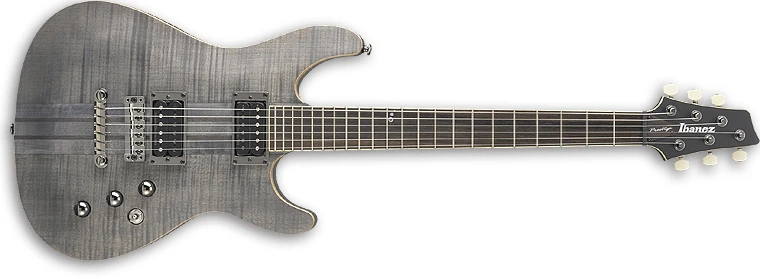

SZ4020FM TKF
Transparent Black Flat
