SZ320EX WH

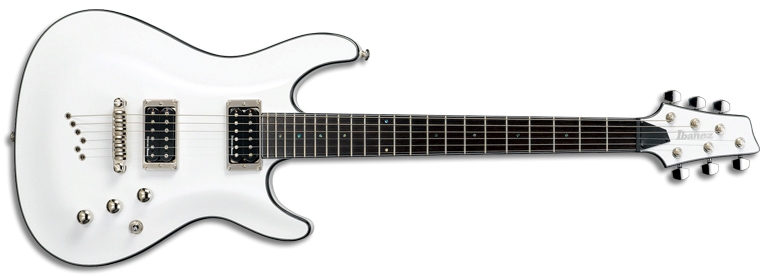

SZ320EX White (more images) Red copyright sprite

The SZ320EX is an SZ series solid body electric guitar model introduced by Ibanez in 2007. It was produced in South Korea. It replaced the similar SZ320 with some changes.

The SZ320EX features a mahogany body mated to a 3-piece set-in mahogany neck with a 22-fret rosewood fingerboard with small abalone dot position markers. Components include a pair of Duncan/Ibanez humbucking pickups mounted in chrome pickup rings and a Tune-o-matic style Gibraltar III fixed bridge with through-body string routing.

The SZ320EX was produced only in 2007.

Specifications

Specifications for SZ320EX
Year(s) produced: 2007
Sold in: Worldwide
Made in: South Korea
Finish(es): Black (BK) / White (WH)
Body
Body type:
Solid body
Body material:
Mahogany
Neck joint:
Set-in
Bridge:
Gibraltar III fixed
Knob style:
Knurled metal dome
Hardware color:
Nickel
Neck
Neck type:
SZ
Neck material:
3-piece mahogany
Scale length:
638mm/ 25.1"
Fingerboard material:
Rosewood
Fingerboard inlays:
Small abalone dot
Frets:
22 / large
Nut:
Black plastic (43mm)
Machine heads:
Ibanez die-cast
Electronics
Pickup configuration:
HH
Bridge pickup:
Duncan/Ibanez (H)
Neck pickup:
Duncan/Ibanez (H)
Controls:
2 volume / 1 tone / 3-way toggle

Images

SZ320EX BK

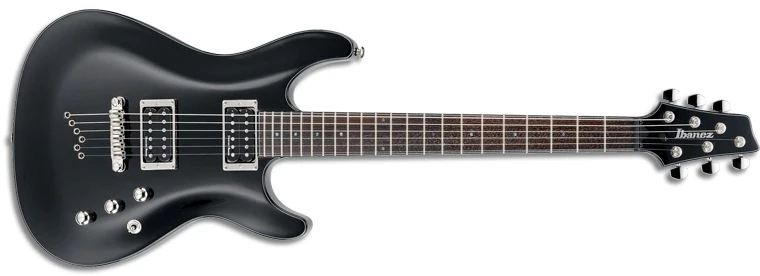

SZ320EX Black Red copyright sprite
