SV5470Q TAB

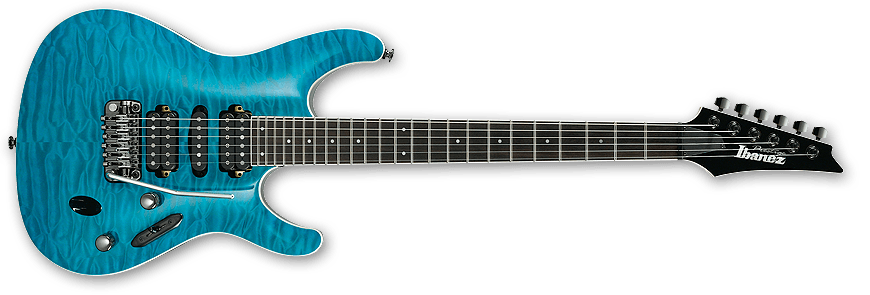

SV5470Q Transparent Aqua Blue Red copyright sprite

The SV5470Q is an SV series solid body electric guitar model introduced by Ibanez in 2014. It was made in Japan by FujiGen as part of the upscale Prestige line.

The SV5470Q features a quilted maple top with binding on a mahogany body bolted to a maple and walnut neck with a 24-fret rosewood fingerboard with binding and small pearloid dot position markers. Components include Ibanez pickups with a pair of True Duo Blast humbuckers with a True Duo coil-split system flanking a Short Tracer single-coil, a SynchroniZR ball bearing pivot synchronized tremolo bridge with a ZPS-FX tuning stabilizer and Ibanez auto-trimming locking tuners which cut excess string as the locking clamp is engaged.

Similar models include the SV5470F (flamed maple top), the SV5470A (ash top), the SV5470 (plain maple top) and the SV5470QE (quilted maple top and EMG pickups).

The SV5470Q was offered only in Japan and was discontinued after 2015.

Specifications

Specifications for SV5470Q
Model name: SV5470Q
Year(s) produced: 2014–2015
Sold in: Japan
Made in: Japan
Finish(es): Transparent Aqua Blue (TAB)
Body
Body type:
Solid body
Body material:
Mahogany w/ quilted maple top w/ binding
Neck joint:
AANJ
Bridge:
SynchroniZR tremolo w/ ZPS-FX stabilizer
Knob style:
Collet
Hardware color:
Cosmo black
Neck
Neck type:
Wizard HP Prestige
Neck material:
5-piece maple/ walnut
Scale length:
648mm/ 25½"
Fingerboard material:
Rosewood w/ binding
Fingerboard inlays:
Small pearl dots
Frets:
24 / jumbo
Nut:
Graph Tech Black TUSQ XL (43mm)
Machine heads:
Ibanez locking (auto-trimming)
Electronics
Pickup configuration:
HSH
Bridge pickup:
Ibanez True Duo Blast 2 (H)
Middle pickup:
Ibanez Short Tracer 2 (S)
Neck pickup:
Ibanez True Duo Blast 1 (H)
Controls:
Master volume / master tone / 5-way lever / push-pull True Duo switch on volume

Images

Additional details
HSH 5-way push-pull stacked-single
Pickup switching diagram
VT-5-way push-pull-coil-split-volume
Control layout
