SV5470F NBL.gif

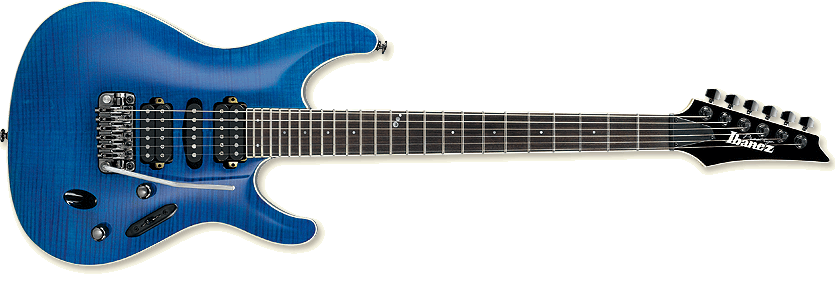

SV5470F Natural Blue (more images) Red copyright sprite.png

The SV5470F is an SV series solid body electric guitar model introduced by Ibanez in 2008. It was made in Japan by FujiGen as part of the upscale Prestige line.

The SV guitar models are based on the S series models, but have a synchronized tremolo bridge rather than the double locking systems found on the regular S models.

The SV5470F features a flamed maple top with binding on a mahogany body bolted to a maple and walnut neck with a 24-fret rosewood fingerboard with binding and small pearloid dot position markers. Components include Ibanez pickups with a pair of True Duo Blast humbuckers with a True Duo coil-split system flanking a Short Tracer single-coil, a SynchroniZR ball bearing pivot synchronized tremolo bridge with a ZPS-FX tuning stabilizer, a Graph Tech TUSQ teflon impregnated nut, and Ibanez auto-trimming locking tuners which cut excess string as the locking clamp is engaged.

In 2009, a new middle position pickup was introduced. New in 2010 was the Wizard HP neck.

Several related models which differ only by body top material and finish have been offered: SV5470 (plain maple top), SV5470A (ash top) and SV5470Q (quilted maple top). The SV5470QE was a limited edition model with a quilted maple top and EMG pickups, but otherwise similar.

Since 2012 the SV5470F has been offered only in Japan. It was discontinued in 2016.


Related content: Prestige series | SV series | Models-icon.png
Specifications for SV5470F
Model name: SV5470F
Year(s) offered: 2008–2016
Sold in: Worldwide / Japan exclusive 2012–2016
Made in: Japan
Finish(es): Dark Sunset Burst (DSB) 2008–2013 / Natural Blue (NBL) 2008–2013 / Sapphire Blue (SPB) 2013–2016 / Transparent Black (TBK) 2013–2016
Body type:
Solid body
Body material:
Mahogany w/ flamed maple top w/ binding
Neck joint:
SynchroniZR tremolo w/ ZPS-FX stabilizer
Knob style:
Hardware color:
Cosmo black
Neck type:
2008–2009: Wizard Prestige
2010–2016: Wizard HP Prestige
Neck material:
5-piece maple/ walnut
Scale length:
648mm/ 25½"
Fingerboard material:
Rosewood w/ binding
Fingerboard inlays:
Small pearl dot / SV Prestige on 12th
24 / jumbo
Graph Tech Black TUSQ XL (43mm)
Machine heads:
Ibanez locking (auto-trimming)
Electronics/ Strings
Pickup configuration:
Bridge pickup:
Ibanez True Duo Blast 2 (H), F-Spacing
Middle pickup:
2008: Ibanez Short Tracer 1(S), F-Spacing
2009–2012: Ibanez Short Tracer 2 (S)
Neck pickup:
Ibanez True Duo Blast 1 (H), F-Spacing
Master volume / master tone / 5-way lever pickup selector / push/pull True Duo switch on volume
Output jack:
¼" stereo barrel (angled face mount)
String gauge (factory):
Factory tuning:
1E,2B,3G,4D,5A,6E (E Std.)


Additional finishes/ details
SV5470F DSB.gif
Dark Sunset Burst
SV5470F SPB.png
Sapphire Blue

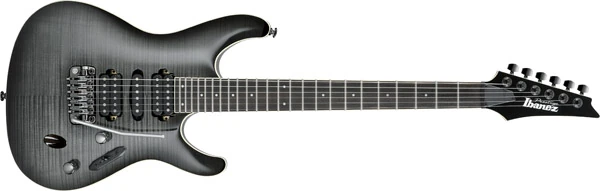

SV5470F TBK.jpg
Transparent Black
HSH 5-way push-pull stacked-single.png
Pickup switching
VT-5-way push-pull-coil-split-volume.png
Controls layout
