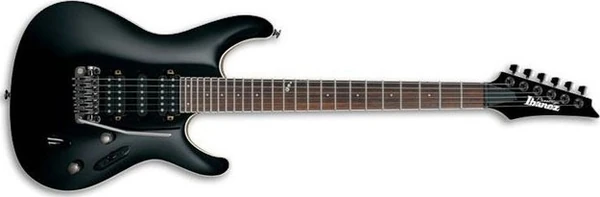

SV5470 BK
SV5470 Black Red copyright sprite

The SV5470 is an SV series solid body electric guitar model introduced by Ibanez in late 2010. It was made in Japan by FujiGen as part of the upscale Prestige line.

The SV5470 features a maple top with binding on a mahogany body bolted to a maple and walnut Wizard HP neck with a 24-fret rosewood fingerboard with binding and white dot position markers with special inlay at the twelfth fret. Components include Ibanez pickups with a pair of True Duo Blast humbuckers with a True Duo coil-split system flanking a Short Tracer single-coil, a SynchroniZR ball bearing pivot synchronized tremolo bridge with a ZPS-FX tuning stabilizer and Ibanez auto-trimming locking tuners which cut excess string as the locking clamp is engaged.

The SV5470 is similar to the SV5470A and SV5470F, but is sold at a slightly lower price point with a solid finish and no decorative top.

The SV5470 was discontinued in 2016.

Specifications

Specifications for SV5470
Year(s) produced: 2010–2016
Sold in: Europe 2010–2011/ Japan / North & South America and Oceania 2010–2011
Made in: Japan
Finish(es): Black (BK)
Body
Body type:
Solid body
Body material:
Mahogany w/ maple top with binding
Neck joint:
AANJ
Bridge:
SynchroniZR tremolo w/ ZPS-FX stabilizer
Knob style:
Collet
Hardware color:
Cosmo black
Neck
Neck type:
Wizard HP Prestige
Neck material:
5-piece maple/ walnut
Scale length:
648mm/ 25½"
Fingerboard material:
Rosewood w/ binding
Fingerboard inlays:
Small white dot w/ special at 12th fret
Frets:
24 / jumbo
Nut:
Graph Tech Black TUSQ XL (43mm)
Machine heads:
Ibanez locking (auto-trimming)
Electronics/ Strings
Pickup configuration:
HSH
Bridge pickup:
True Duo Blast 2 (H)
Middle pickup:
Short Tracer 2 (S)
Neck pickup:
True Duo Blast 1 (H)
Controls:
Master volume / master tone / 5-way lever / push/pull True Duo switch on volume
String gauge (factory):
.009–.042

Images

Additional details
HSH 5-way push-pull stacked-single
Pickup switching diagram
VT-5-way push-pull-coil-split-volume
Control layout
