SRX705-NT

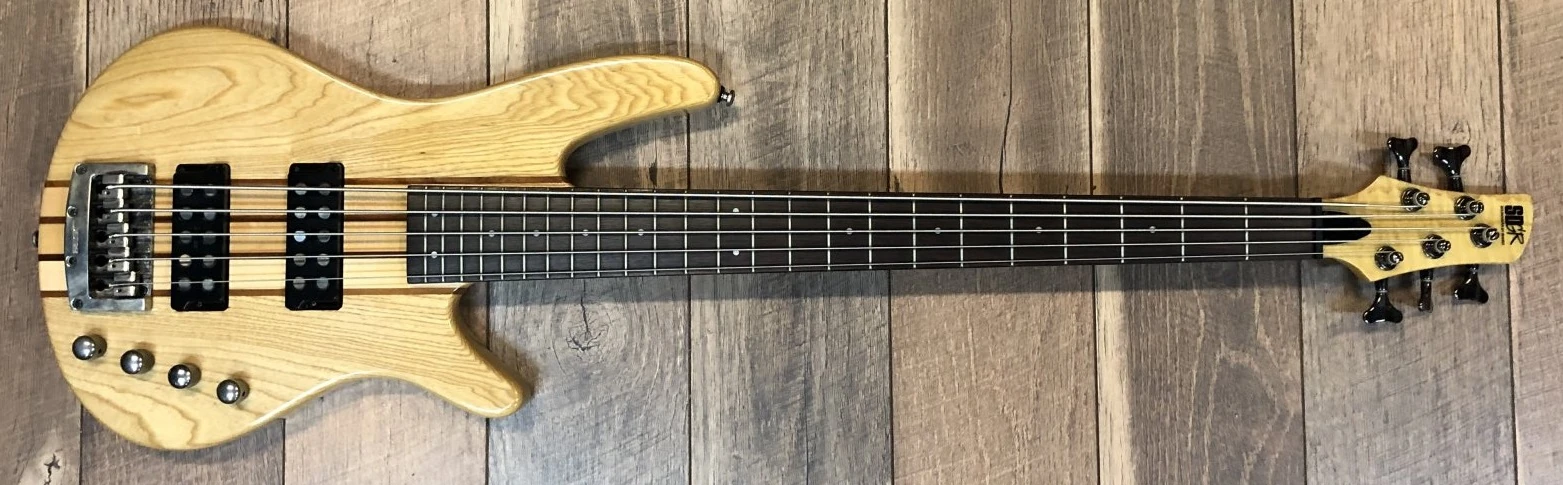

SRX705 Natural (more images) Red copyright sprite

The SRX705 is a five string SRX series solid body electric bass model introduced by Ibanez for 2003. It was produced in South Korea as part of the Standard line.

The SRX705 features neck-through-body construction on light ash wings attached to a maple and walnut neck with a 24-fret rosewood fingerboard with pearl dot position markers. Components include a B205 fixed bridge with 16.5mm string spacing, and a pair of Ibanez PFR-AL5 (Passive Full Range) pickup's with alnico magnets channeled through a 2-band EQ (EQB-IIDX), a plastic nut and Ibanez die-cast tuning machines.

The SRX700 is a related four string model.

The SRX705 was discontinued after 2006.

Specifications[]

Related content: SRX series | Soundgear series | Models-icon
Specifications for SRX705
Model name: SRX705
Year(s) offered: 2003-2006
Sold in: USA 2003-2006 / Japan 2003 / Europe 2003-2004 / Asia & South America 2004 / North America 2006
Made in: South Korea
Price: MSRP: JP¥ 85,000 (2003)
Finish(es): Natural (NT)
Body
Body type:
Solid body
Body material:
Ash wings
Neck joint:
Neck-thru
Bridge:
Accu-cast B205 (16.5mm string spacing)
Knob style:
Knurled metal dome
Hardware color:
Cosmo black
Neck
Neck type:
SRX5
Neck material:
3-piece maple
Scale length:
864mm / 34"
Fingerboard material:
Rosewood
Fingerboard inlays:
Pearl dot
Frets:
24 / medium
Nut:
Black plastic (45mm)
Machine heads:
Ibanez die-cast
Electronics/ Strings
Pickup configuration:
HH
Bridge pickup:
Ibanez PFR-ALB5 (H) passive / alnico
Neck pickup:
Ibanez PFR-ALN5 (H) passive / alnico
Electronics:
EQB-IIDX 2-band EQ
Controls:
Single volume / balance / two-band EQ (bass & treble boost-cut)
Battery:
9V
Output jack:
¼" stereo (side mounted)
String gauge (factory):
.045/.065/.085/.105/.130
Factory tuning:
1G,2D,3A,4E,5B (E Standard)

Images[]

Additional details
V B 2-band EG EQBIIDX SRX
Controls layout
Freq-resp EQBII DX
Frequency response
