SRX505-TK

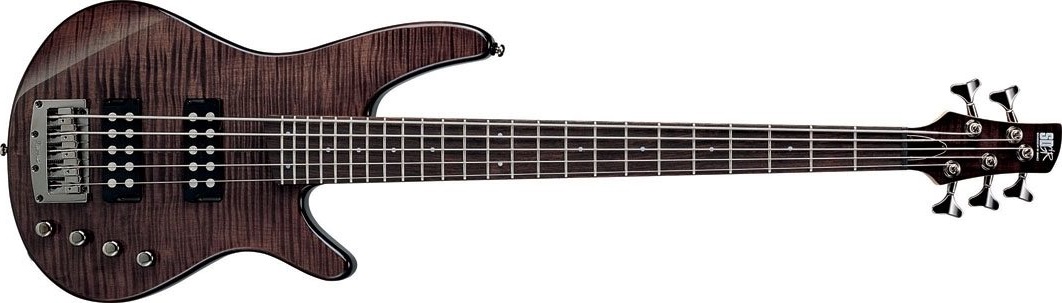

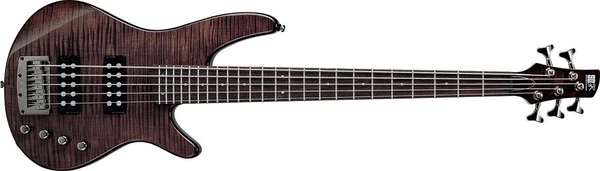

SRX505 Transparent Black (more images) Red copyright sprite

The SRX505 is a five string SRX series solid body electric bass model introduced by Ibanez for 2002. It was produced in South Korea as apart of the Standard line.

The SRX505 features a double-cutaway basswood body with flamed maple top bolted to a laminated SRX5 maple neck with a 24-fret rosewood fingerboard with pearl dot position markers and a matching headstock. Components include a 205 fixed bridge with 16.5mm string spacing, and two PFR-5 (Passive Full Range) pickups channeled through a 2-band EQ (EQB-IIDX), a plastic nut and Ibanez Die-cast tuning machines.

The SRX500 is a four string version model.

The SRX505 was discontinued after 2006.

Specifications[]

Related content: SRX series | Soundgear series | Models-icon
Specifications for SRX505
Model name: SRX505
Year(s) offered: 2002–2006
Sold in: Europe / USA 2002–2003, 2005–2006 / Japan 2002–2003 / Asia & South America 2003–2004, 2006 / North America 2006
Made in: South Korea
Finish(es): Transparent Black (TK)
Body
Body type:
Solid body
Body material:
Basswood w/ flamed maple top
Neck joint:
AANJ
Bridge:
Accu-cast B205 (16.5mm string spacing)
Knob style:
Knurled metal dome
Hardware color:
Cosmo black
Neck
Neck type:
SRX5
Neck material:
3-piece maple
Scale length:
864mm / 34"
Fingerboard material:
Rosewood
Fingerboard inlays:
Pearl dot
Frets:
24 / medium
Nut:
Black plastic (45mm)
Machine heads:
Ibanez die-cast
Electronics/ Strings
Pickup configuration:
HH
Bridge pickup:
Ibanez PFR-B5 (H)
Neck pickup:
Ibanez PFR-N5 (H)
Electronics:
EQB-IIDX 2-band EQ
Controls:
Single volume / balance / two-band EQ (bass & treble boost-cut)
Battery:
9V
Output jack:
¼" stereo (side mounted)
String gauge (factory):
.045/.065/.085/.105/.130
Factory tuning:
1G,2D,3A,4E,5B (E Standard)

Images[]

Additional details

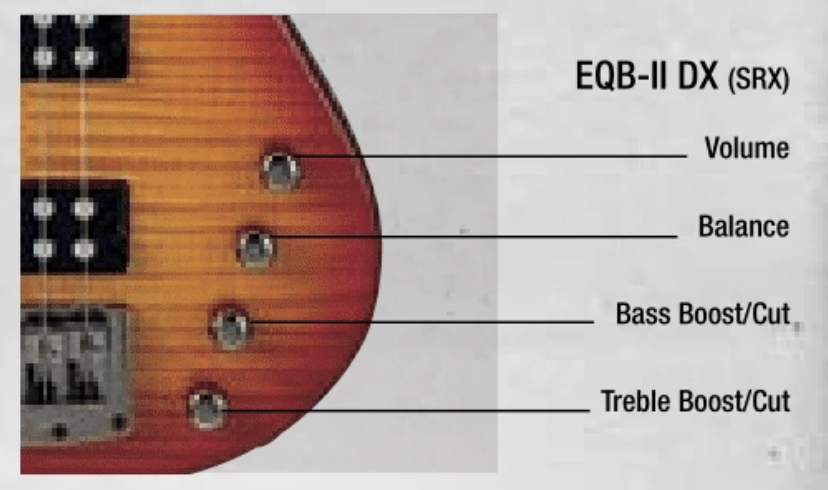

V B 2-band EG EQBIIDX SRX
Controls layout

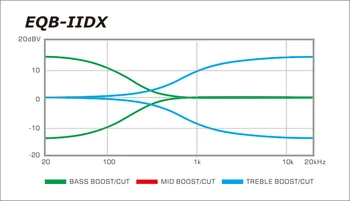

Freq-resp EQBII DX
Frequency response
