SRX300-BBL

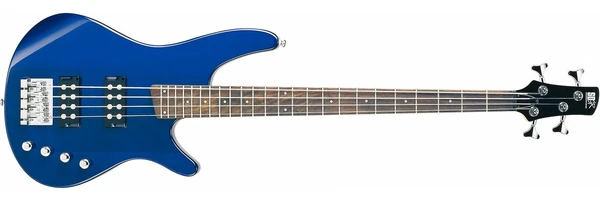

SRX300 Bright Blue (more images) Red copyright sprite

The SRX300 is a SRX series solid body electric bass model introduced by Ibanez for 2002 as part of the initial offering of the new series. It was produced in South Korea as part of the Standard line.

The SRX300 features a double-cutaway lightweight agathis body bolted to a laminated maple neck with a 24-fret rosewood fingerboard with white dot position markers. Components include a die-cast bridge with 19mm string spacing, a pair of Ibanez PFR-4 (Passive Full Range) pickups channeled through a 2-band EQ (EQB-IIDX), a plastic nut and Ibanez die-cast tuning machines.

The wood species used for the body was changed several times during the production run, from Agathis to Basswood and back. For 2003 the bridge was changed to the Accu-Cast B100.

The SRX305 is a five string version.

The SRX300 was discontinued after 2007.

Specifications[]

Related content: SRX series | Soundgear series | Models-icon
Specifications for SRX300
Model name: SRX300
Year(s) offered: 2002–2007
Sold in: USA / Europe 2004–2007
Made in: South Korea
Finish(es): Bright Blue (BBL) 2004–2006 Europe , 2006 USA / Iron Pewter (IPT) USA / Moon Shadow (MW) 2005–2007 Europe , 2005 USA / Starlight Blue (SLB) 2007 USA , 2007 Europe / Transparent Red (TR) 2002–2003 USA
Body
Body type:
Solid body
Body material:
2002: Agathis
2003: Basswood
2005–2007: Agathis
2006: Basswood
- 2007: Agathis
Neck joint:
AANJ
Bridge:
2002: Die-cast
2003–2007: Accu-Cast B100 (19mm string spacing)
Knob style:
Knurled metal dome
Hardware color:
Chrome
Neck
Neck type:
SRX4
Neck material:
3-piece maple
Scale length:
864mm / 34"
Fingerboard material:
Rosewood
Fingerboard inlays:
White dot
Frets:
24 / medium
Nut:
Black plastic (38mm)
Machine heads:
Ibanez die-cast
Electronics/ Strings
Pickup configuration:
HH
Bridge pickup:
Ibanez PFR-4B (H)
Neck pickup:
Ibanez PFR-4N (H)
Electronics:
EQB-IIDX 2-band EQ
Controls:
Single volume / balance / two-band EQ (bass & treble boost-cut)
Battery:
9V
Output jack:
¼" stereo (side mounted)
String gauge (factory):
.045/.065/.085/.105
Factory tuning:
1G,2D,3A,4E (E standard)

Images[]

Additional finishes & details

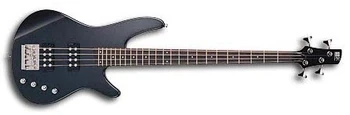

SRX300 IPT
Iron Pewter

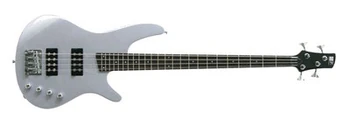

Ibanez srx300 MW
Moon Shadow

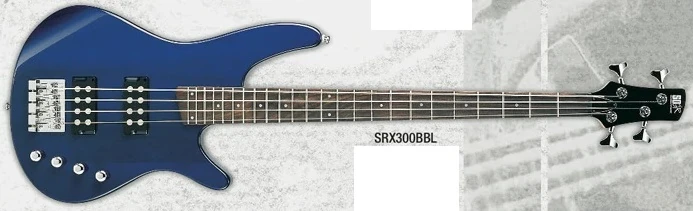

2007 SRX300-BBL
Starlight Blue

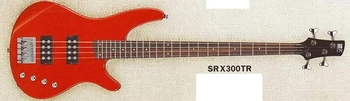

2003 SRX300-TR
Transparent Red
V B 2-band EG EQBIIDX SRX
Controls layout
Freq-resp EQBII DX
Frequency response
