SRT705DX-BBF (2012)

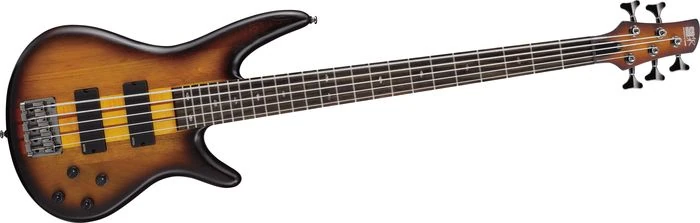

SRT705DX Brown Burst Flat (more images) Red copyright sprite

The SRT705DX is a five string SRT series solid body electric bass model introduced by Ibanez for 2012. It was produced in Indonesia as part of the Standard line.

The SRT705DX features neck-through-body construction on mahogany wings attached to a maple and bubinga neck with a 24-fret rosewood fingerboard with abalone oval position markers. Components include an Accu-cast B305 fixed bridge with 16.5mm string spacing, and a pair of EMG 40D passive-alnico humbucker pickup's channeled through a Vari-Mid III preamp with 3-band EQ, a plastic nut and Ibanez die-cast tuning machines.

The SRT700DX is a similar four-string model.

The SRT705DX was discontinued after 2012 along with the SRT series.

Specifications[]

Related content: SRT series | Soundgear series | Models-icon
Specifications for SRT705DX
Model name: SRT705DX
Year(s) offered: 2012
Sold in: Japan / USA
Made in: Indonesia
Price: MSRP: JP¥ 131.250 / US$ 1,308.88
Finish(es): Brown Burst Flat (BBF)
Body
Body type:
Solid body
Body material:
Mahogany wings
Neck joint:
Neck-thru
Bridge:
Accu-cast B305 (16.5mm string spacing)
Knob style:
B20 (volume & balancer) & B15 (3-way EQ) plastic knobs
Hardware color:
Cosmo black
Neck
Neck type:
SRT5
Neck material:
5-piece maple/ bubinga
Scale length:
864mm / 34"
Fingerboard material:
Rosewood
Fingerboard inlays:
Abalone oval
Frets:
24 / medium
Nut:
Black plastic (45mm)
Machine heads:
Ibanez die-cast
Electronics/ Strings
Pickup configuration:
HH
Bridge pickup:
EMG 40DC (H) active / alnico
Neck pickup:
EMG 40DC (H) active / alnico
Electronics:
Vari-Mid III preamp w/ 3-band EQ
Controls:
Master volume / Stacked bass & treble / Stacked mid boost-cut & mid frequency control / Balancer
Battery:
9V
Output jack:
¼" stereo (side mounted)
String gauge (factory):
.045/.065/.085/.105/.130
Factory tuning:
1G,2D,3A,4E,5B (E Standard)

Images[]

Additional details
Vari-Mid III (SRT)

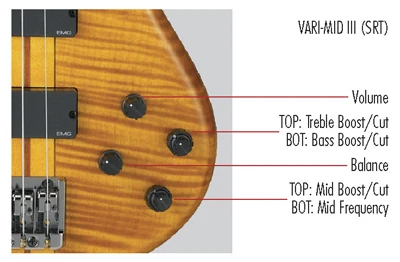

Controls layout
Vari-Mid III EQ frequency chart
Frequency response
