2021 SRMS625EX

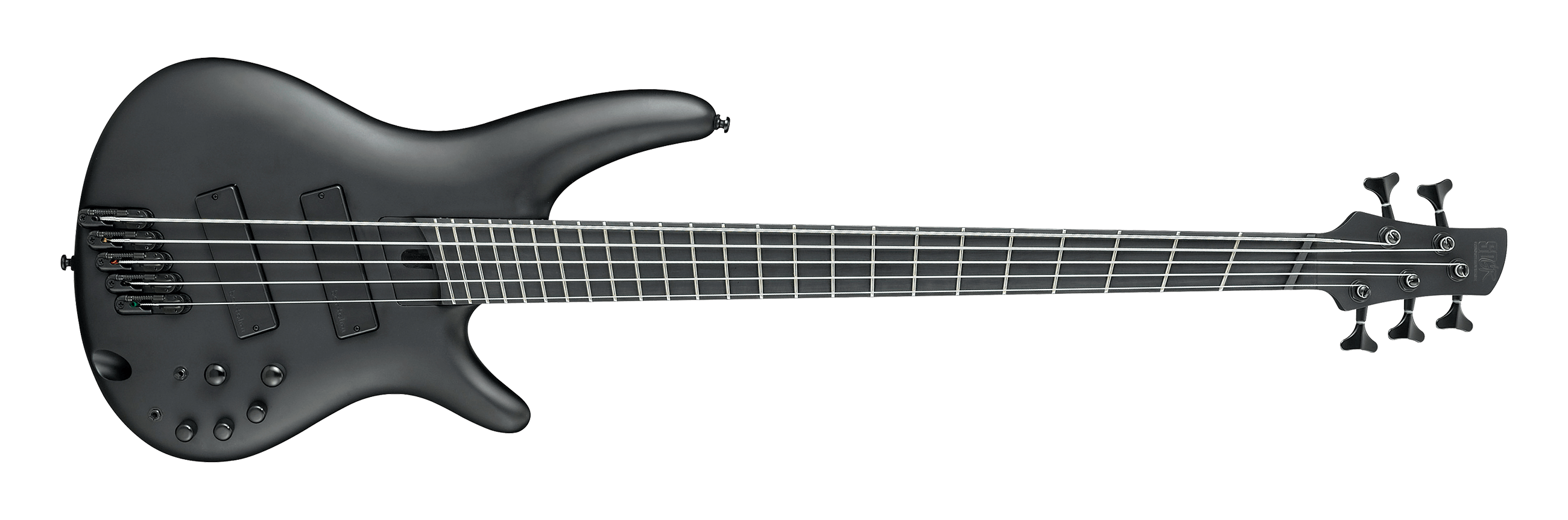

SRMS625EX Black flat (more images) Red copyright sprite

The SRMS625EX is a multi-scale, five string Soundgear series solid body electric bass model introduced by Ibanez for 2021. It is made in Indonesia as part of the Iron Label line.

The SRMS625EX features a double-cutaway okume body bolted to a maple and walnut multi-scale neck with a 24-fret ebonol fingerboard with no position markers. Components include a pair of Bartolini BH2 passive pickups channeled through an Ibanez custom preamp with a three-band EQ, individually mounted Mono-rail V bridges with 16.5mm string spacing, a plastic nut, and Ibanez tuning machines.

The SRMS805 is a related model in the Ibanez Bass Workshop line with a poplar burl top, a jatoba and walnut neck, and a panga panga fretboard with offset stadium inlays.

Specifications[]

Related content: Iron Label series | Soundgear series | Models-icon
Specifications for SRMS625EX
Model name: SRMS625EX
Year(s) offered: 2021–2024
Sold in: Americas & Oceania / Asia & Africa / China / Europe / Japan 2021; 2023–2024 / USA
Made in: Indonesia
Price: MSRP: JP¥ 130,000 (2021)[1] / JP¥ 145,000 (2024)[2] / US$1,266.65 (2024)[3] • SMAP: US$949.99 (2024)[3]
Finish(es): Black Flat (BKF)
Body
Body type:
Solid body
Body material:
Okoume
Neck joint:
AANJ
Bridge:
Mono-rail V (16.5mm string spacing)
Knob style:
B20 (volume & balancer) & B15 (3-way EQ) plastic knobs
Hardware color:
Black
Neck
Neck type:
SRMS5 Multi-scale
Neck material:
5-piece maple/ walnut
Scale length:
901.7mm/ 35.5" – 864mm / 34"
Fingerboard material:
Ebonol
Frets:
24 / medium nickel silver
Nut:
Black plastic (45mm)
Machine heads:
Ibanez die-cast
Electronics/ Strings
Bridge pickup:
Bartolini BH2 bridge passive
Neck pickup:
Bartolini BH2 neck passive
Electronics:
Ibanez Custom Electronics 3-band EQ w/EQ bypass switch
Controls:
Master volume / pickup balancer / 3-band EQ (bass/mid/treble) / EQ bypass toggle / 3-way mid-frequency toggle
Battery:
9V
Output jack:
¼" stereo barrel (angled face mount)
String gauge (factory):
.045/.065/.080/.100/.130 (D'Addario EXL170-5SL)
Factory tuning:
1G,2D,3A,4E,5B (E Standard)
Additional details

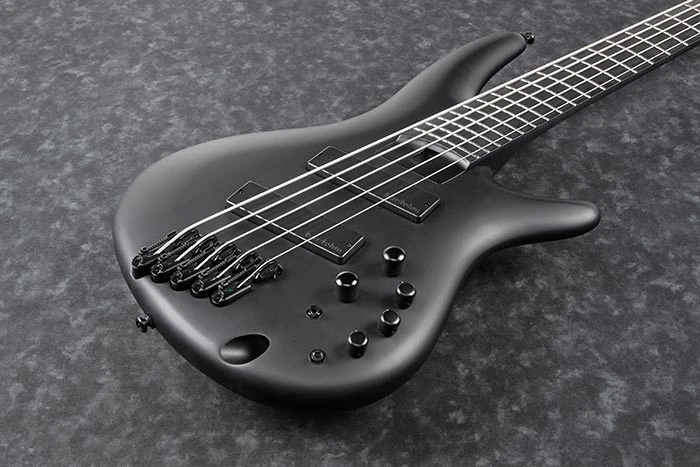

SRMS625EX front
Front of body

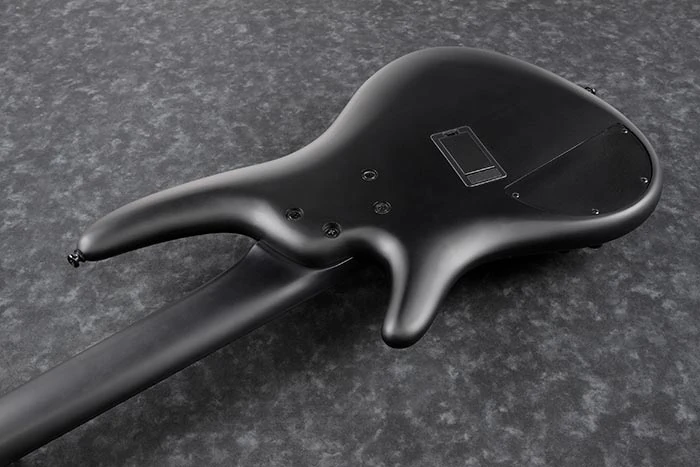

SRMS625EX raer
Rear of body

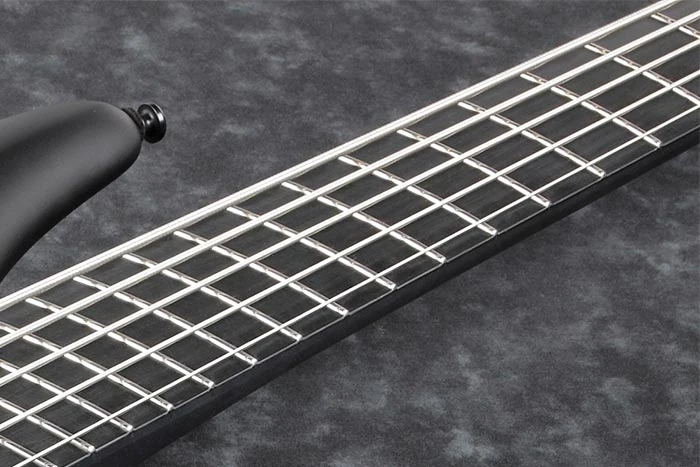

SRMS625EX fretboard
Ebonol fretboard

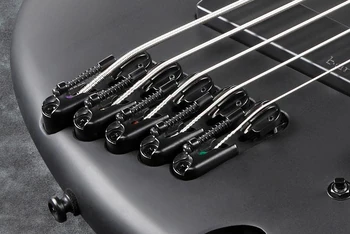

SRMS625EX bridge
MR5 bridge

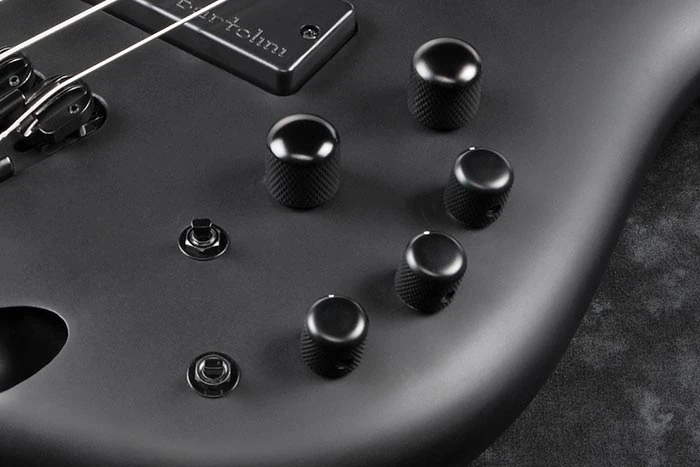

SRMS625EX controls
Controls

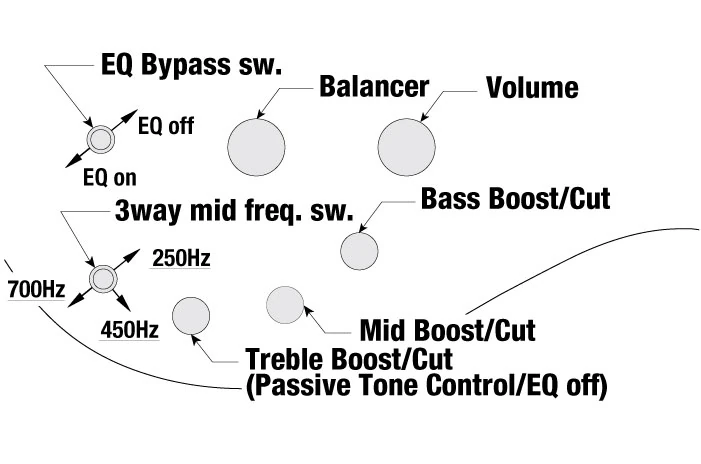

SRMS625EX control d
Controls layout
SRMS625EX eq
Frequency response

Sources[]

  1. SRMS625EX product page, Ibanez Japan, archived June 2021
  2. SRMS625EX product page, Ibanez Japan, archived March 2024
  3. 3.0 3.1 SRMS625EX product listing, Sam Ash (US retailer), archived March 2024
  • SRMS625EX product page, Ibanez Europe, archived June 2022
  • SRMS625EX product page, Ibanez USA, archived January 2023
  • SRMS625EX product page, Ibanez Asia & Africa, archived March 2024
