2022 SRG8570Z RLE

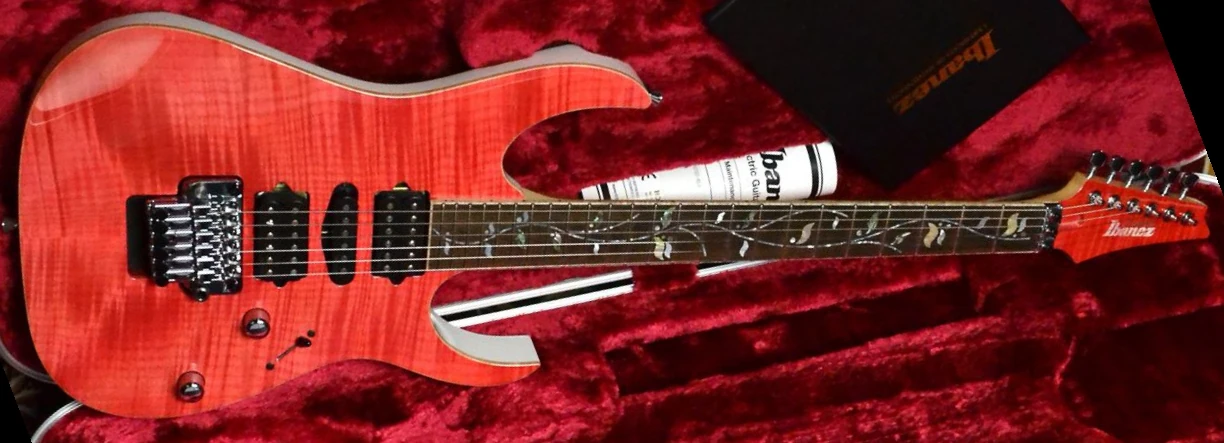

SRG8570Z Rubelite (more images) Red copyright sprite

The SRG8570Z is an RG series solid body electric guitar model introduced by Ibanez in 2022. It was made in Japan by FujiGen as a spot model in the high-end J Custom line which is available exclusively from Japanese retailer Shimamura Gakki.

The SRG8570Z features a 4mm thick AAA flamed maple top with flamed maple binding on an African mahogany body bolted to a titanium-reinforced maple and wenge neck with Velvetouch finish and a 24-fret rosewood fingerboard with flamed maple binding and a Tree of Life vine inlay. The headstock is finished to match the top. Components include an Edge Zero double locking tremolo bridge with a removable ZPS tuning stabilizer, DiMarzio pickups with Air Norton and Tone Zone humbuckers flanking a True Velvet single-coil, recessed Easy Access control knobs and Gotoh tuning machines.

The back is finished with white paint while the top features two different stain colors: a reddish-pink dubbed Rubelite and a blue called Hauynite.

The RG8570Z is a similar regular production model with a stained rather than painted back.

Only six examples of each finish of the SRG8570Z were produced.

Specifications[]

Related content: J Custom series | RG series | Models-icon
Specifications for SRG8570Z
Model name: SRG8570Z
Year(s) offered: 2022
Sold in: Japan
Made in: Japan
Price: SMAP: ¥378,000
Finish(es): Hauynite (HYE) / Rubelite (RLE)
Body
Body type:
Solid body
Body material:
African mahogany w/ 4mm AAA flamed maple top w/ binding
Neck joint:
AANJ
Bridge:
Edge Zero tremolo w/ ZPS3 stabilizer (10.8mm string spacing)
Strap buttons:
Gotoh Free Lock-II
Knob style:
Gotoh VK1-19 knurled metal dome
Hardware color:
Cosmo black
Neck
Neck type:
RG J Custom Super Wizard
Neck material:
5-piece maple/ wenge
Scale length:
648mm/ 25½"
Fingerboard material:
Selected rosewood w/ flamed maple binding
Fingerboard inlays:
Abalone & mother of pearl tree of life
Frets:
24 / jumbo nickel silver (j.custom edge treatment)
Nut:
Barless Top-Lok
Machine heads:
Gotoh SG381
String gauge (factory):
.009/.011/.016/.024/.032/.042 (D'Addario EXL120)
Factory tuning:
1E,2B,3G,4D,5A,6E (E Std.)
Electronics
Pickup configuration:
HSH
Bridge pickup:
DiMarzio The Tone Zone (H) passive/ alnico
Middle pickup:
DiMarzio True Velvet (S) passive/ alnico
Neck pickup:
DiMarzio Air Norton (H) passive/ alnico
Switch:
VLX91
Controls:
Master volume / master tone / 5-way lever pickup selector
Output jack:
¼" stereo barrel (angled side mount)

Images[]

Other finish

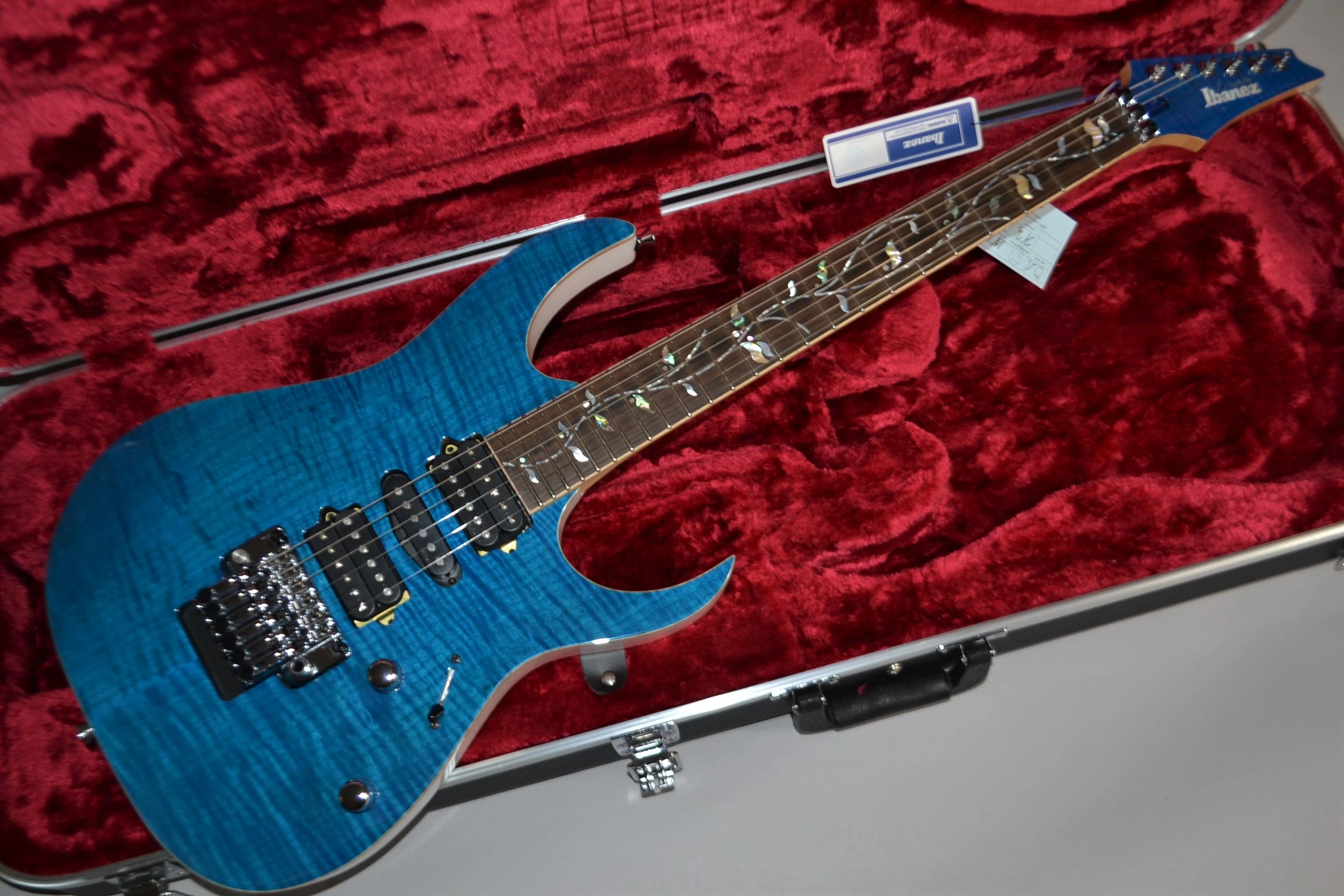

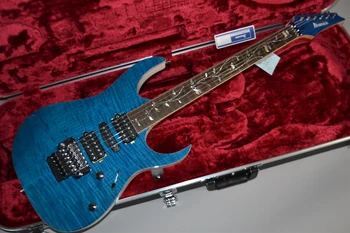

2022 SRG8570Z HYE
Hauynite
Additional details

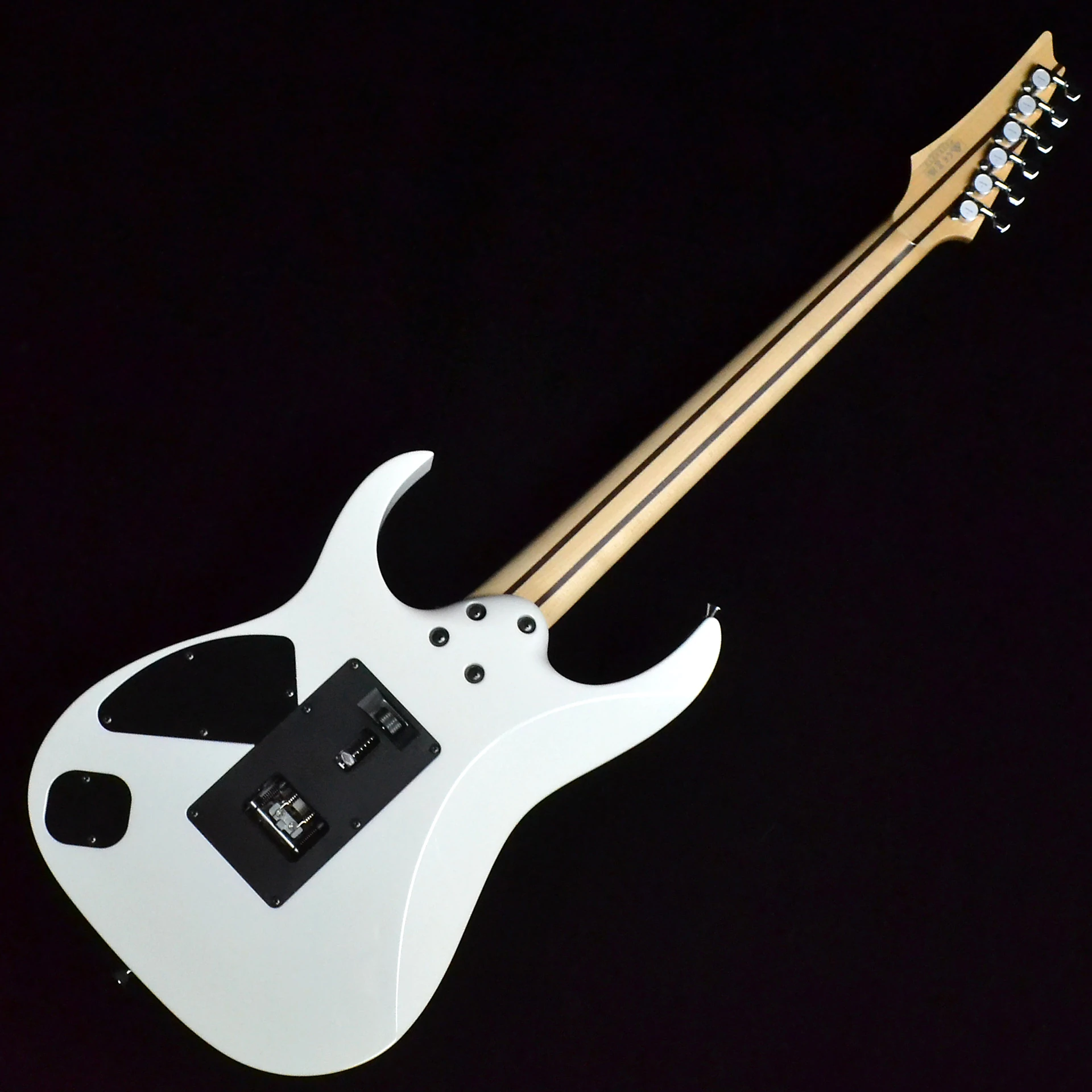

2022 SRG8570Z rear
Rear

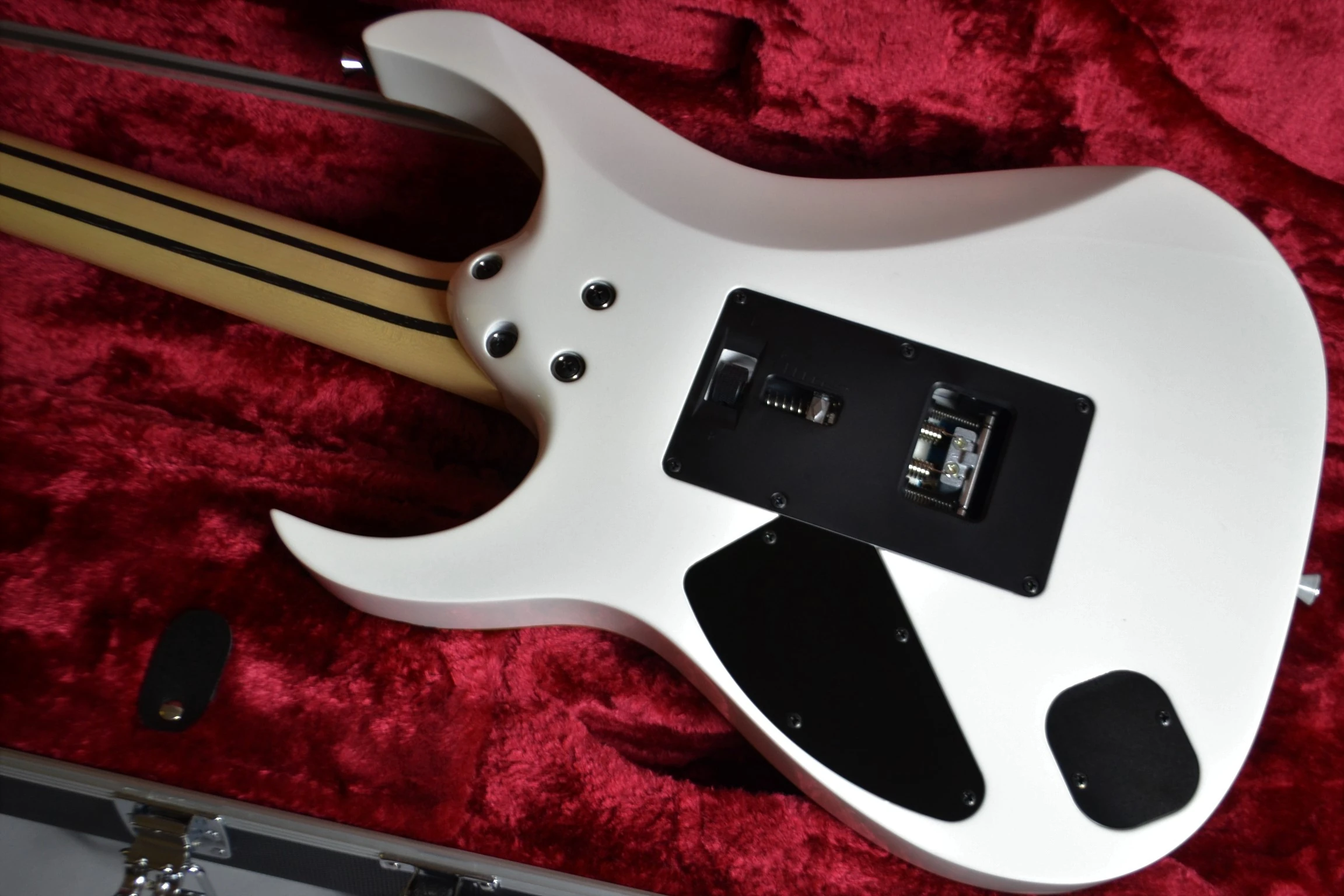

2022 SRG8570Z HYE body-rear
body rear

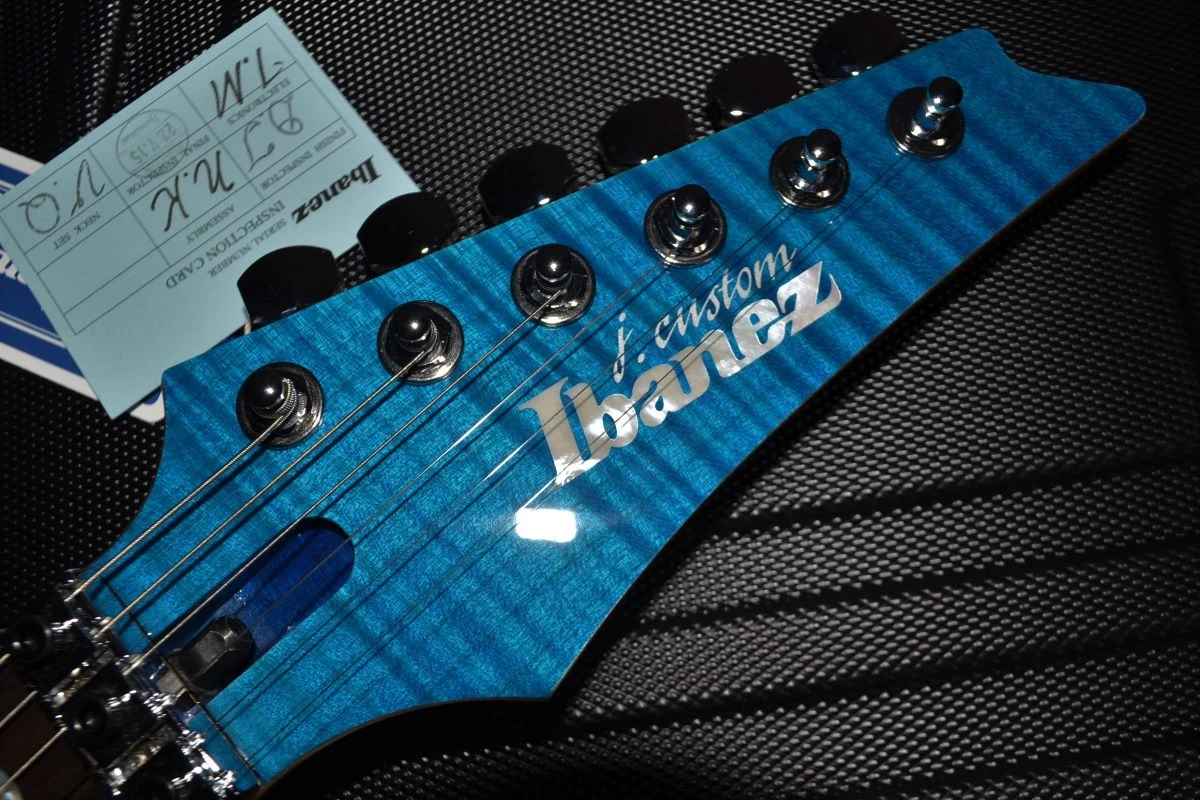

2022 SRG8570Z HYE headstock
Headstock (HYE)

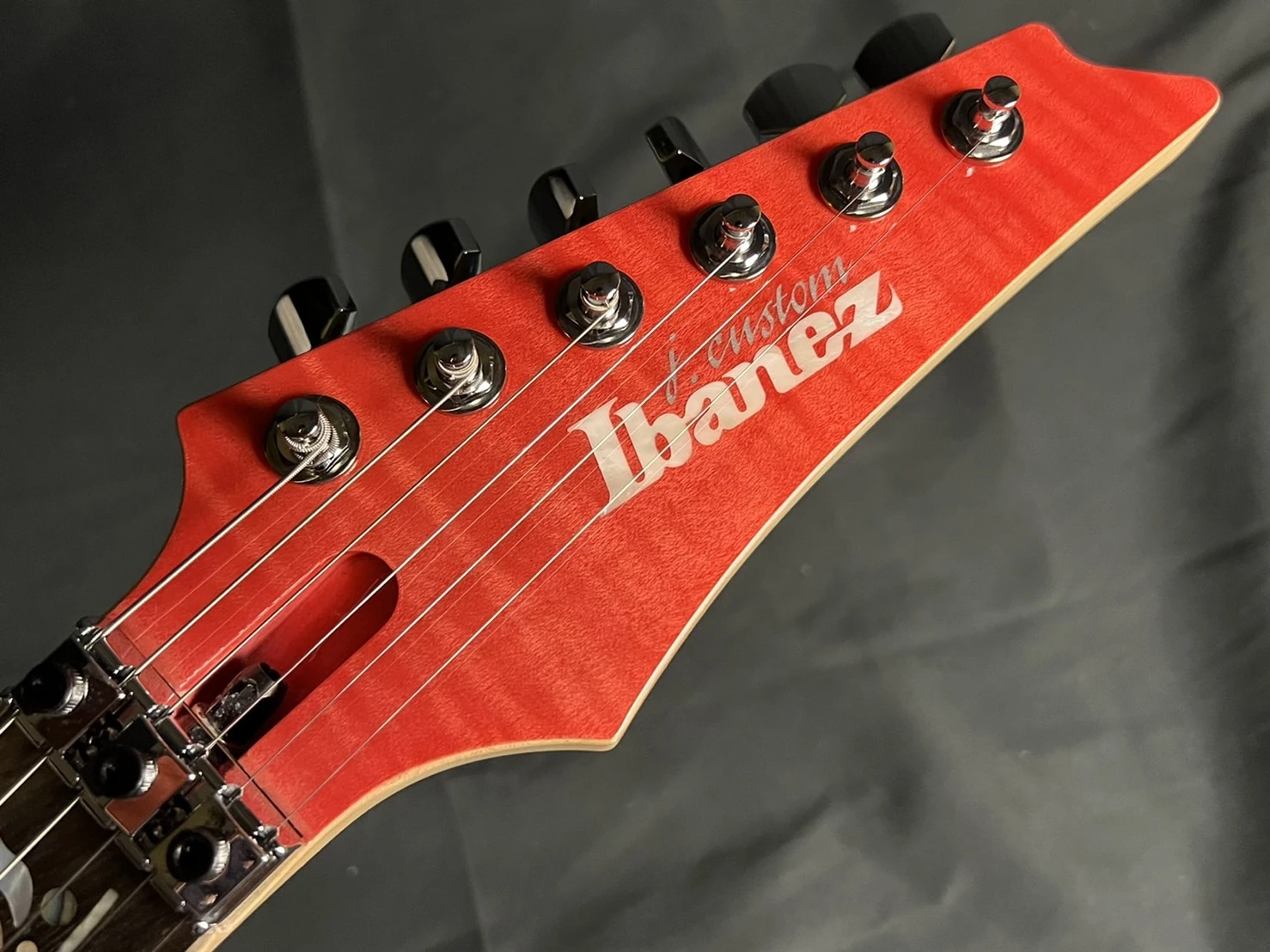

2022 SRG8570Z RLE headstock
Headstock (RLE)
HSH 5-way both-splits
Pickup switching
Controls VT5
Controls layout
