SRFF805

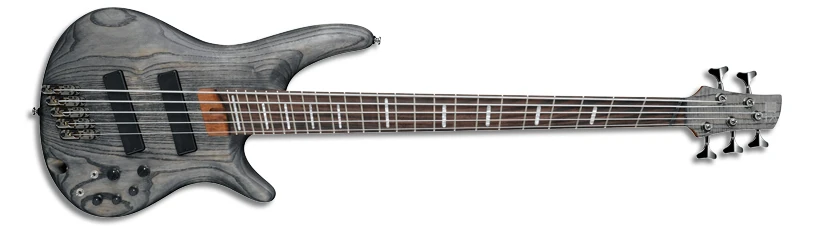

SRFF805 Black Stained (more images)

The SRFF805 is a five string multi-scale Soundgear series solid body electric bass model introduced by Ibanez for 2015. It was made in Indonesia as part of the Ibanez Bass Workshop line.

The SRFF805 features a double-cutaway ash body bolted to a jatoba and bubinga neck with a rosewood fingerboard with 24 fanned frets and block position markers. Features include a pair of Bartolini BH1 soapbar pickups, separate Monorail V bridges with 16.5mm string spacing, an Ibanez Custom Electronics 3-band EQ with bypass, and die-cast tuners.

The SRFF800 and SRFF806 are four and six string versions.

The SRFF805 was discontinued after 2017.

Specifications

Related content: Soundgear series | Ibanez Bass Workshop |

Specifications for SRFF805

Model name: SRFF805 Year(s) offered: 2015–2017 Sold in: Americas & Oceania / Asia & Africa / China / Europe / Japan / USA Made in: Indonesia Finish(es): Black Stained (BKS) / Walnut Flat (WNF)
Body Body type: Solid body Body material: Ash Neck joint: Bolt-on Bridge: Mono-rail V (16.5mm string spacing) Knob style: B20 (volume & balancer) & B15 (3-way EQ) plastic knobs Hardware color: Cosmo black	Neck Neck type: SRFF5 Neck material: 5-piece jatoba/ bubinga Scale length: 901.7mm/ 35.5" – 864mm / 34" Fingerboard material: Rosewood Fingerboard inlays: Block Frets: 24 / medium Machine heads: Ibanez GB7 die-cast	Electronics/ Strings Pickup configuration: SS Bridge pickup: Bartolini BH1 passive Neck pickup: Bartolini BH1 passive Electronics: Ibanez BEQ3 EQ w/ bypass switch Controls: Master volume / balancer / 3-way EQ on-bypass-off toggle / 3-way mid-frequency toggle / treble / mid / bass Battery: 9V Output jack: ¼" stereo barrel (angled face mount) String gauge (factory): .045/.065/.085/.105/.130 Factory tuning: 1G,2D,3A,4E,5B (E Standard)

About this table

Images

Additional finishes/ details

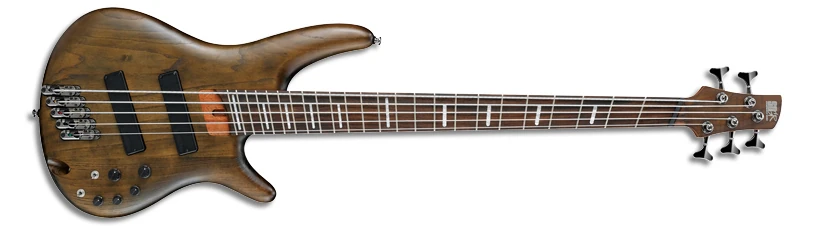

Walnut flat

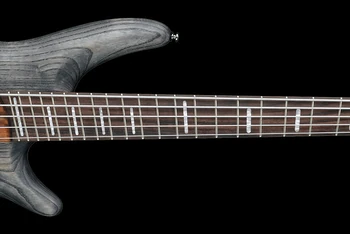

Multi scale fretboard

Controls layout

Controls layout

EQ frequency response

Video

Ibanez SR Multi Scale - SRFF805/806

Sources

• 2015 Europe catalog (p. 47)
• 2017 USA catalog (p. 77)
• SRFF805 product page, Ibanez USA, archived June 2017
