The SRF705 is a five string Soundgear series solid body electric bass model introduced by Ibanez for 2014. It is made in Indonesia as part of the Ibanez Bass Workshop line.

The SRF705 features neck through body construction with double-cutaway mahogany body wings attached to a maple and bubinga neck with a fretless rosewood fingerboard with no inlays. Components include a pair of Bartolini MK-1 split coil passive pickups with independent volume controls, an Ibanez custom preamp with a two-band EQ, a custom bridge with AeroSilk piezo pickups and 16.5mm string spacing, a plastic nut and Ibanez tuning machines. In addition to the controls on the front of the bass, there are a set of five trimpots on the rear cavity cover which allow you to dial in the piezo volume for each string individually.

For 2018 the rosewood fingerboard was replaced with panga panga and the maple and bubinga neck was replaced with maple and walnut. For 2019 the mahogany body wings were replaced with okoume.

The SRF700 and SRF706 are similar four and six string models.


Specifications for SRF705
Model name: SRF705
Year(s) produced: 2014–2021
Sold in: Asia & Africa / China / Europe / Japan / North & South America and Oceania / USA
Made in: Indonesia
Finish(es): Brown Burst Flat (BBF)
Body type:
Solid body
Body material:
2014–2018: Mahogany wings
2019–2021: Okoume wings
Neck joint:
Custom w/ AeroSilk piezos (16.5mm string spacing)
Knob style:
Knurled metal dome
Hardware color:
Cosmo black
Neck type:
Neck material:
2014–2017: 5-piece maple/ bubinga
2018–2021: 5-piece maple/ walnut
Fingerboard material:
2014–2017: Rosewood
2018–2021: Panga panga w/ binding
Black plastic (45mm)
Machine heads:
Ibanez GB7 die-cast
Electronics/ Strings
Bridge pickup:
Bartolini MK-1 bridge passive
Neck pickup:
Bartolini MK-1 neck passive
2-band EQ w/ piezo active tone control
Bridge pickup volume / neck pickup volume / piezo volume / piezo active tone / magnetic pickup treble / magnetic pickup bass / individual piezo trimpots on rear
Output jack:
¼" stereo barrel (angled face mount)
String gauge (factory):
.045/.065/.080/.100/.132 (D'Addario ECB81-5 flatwound)
Factory tuning:
1G,2D,3A,4E,5B (E Standard)
Portal: Ibanez Bass Workshop series | SR series | Bass models Models-icon.png


Additional details
Controls SRF.jpg

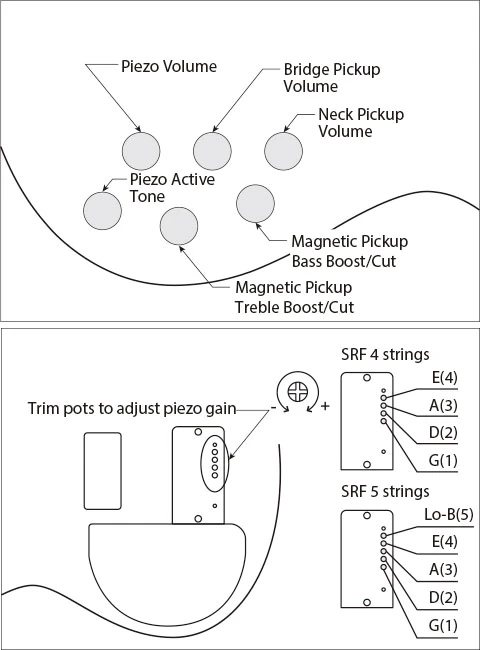

Controls layout
2019 SRF705 BBF 1P 04 front.jpg

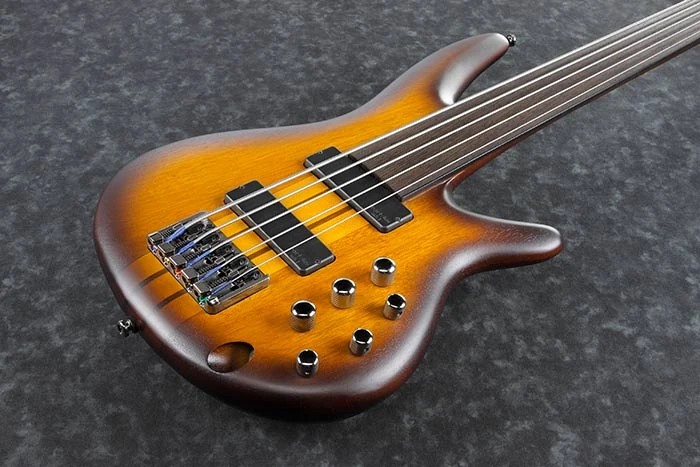

Front of body
2019 SRF705 BBF 1P 04 back.jpg

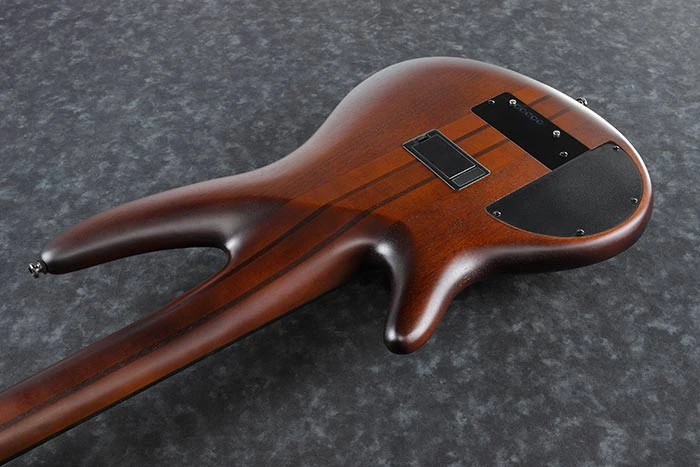

Rear of body
