SR924PD (1989)
SR924PD Natural (more images) Red copyright sprite

The SR924PD is a Soundgear series solid body electric bass model introduced by Ibanez for 1989. It was produced in Japan by FujiGen as part of the Standard line.

The SR924PD features a neck-through-body construction on padduk wings body with arched top attached to a maple and walnut neck with a 24-fret ebony fingerboard with an off-set oval mother of pearl position marker at 12 fret and a ebony headstock. Components include a HB-4 fixed bridge with 19mm string spacing, and a pair of DiMarzio IBZ/USA C1 P/J passive pickup's, a plastic nut, gold hardware and gotoh tuning machines.

The SR924 is a related model with hard maple body. The SR924QM is a related model with quilted maple body. The SR924S is a related model with diferent pickup's.

The SR924PD was discontinued after 1990.

Specifications[]

Related content: Soundgear series | Models-icon
Specifications for SR924PD
Model name: SR924PD
Year(s) offered: 1989-1990
Sold in: Europe 1989-1990 / Asia 1989 / USA & North America 1989
Made in: Japan
Finish(es): Natural
Body
Body type:
Solid body
Body material:
Padduk wings w/ arched top & ebony headstock
Neck joint:
Neck-thru
Bridge:
1989-1990: HB-4 (fixed) (19mm string spacing)
Knob style:
Plastic (black)
Hardware color:
Gold
Neck
Neck type:
SR4
Neck material:
5-piece maple/ walnut
Scale length:
864mm / 34"
Fingerboard material:
Ebony
Fingerboard inlays:
Off-set Oval mother of pearl at 12 fret
Frets:
24 / medium
Nut:
Black plastic (42mm)
Machine heads:
Gotoh
Electronics/ Strings
Pickup configuration:
PJ
Bridge pickup:
DiMarzio IBZ/USA C1 P passive
Neck pickup:
DiMarzio IBZ/USA C1 J passive
Controls:
Volume / Tone /Balancer
Battery:
9V
Output jack:
¼" stereo (side mounted)
String gauge (factory):
.045/.065/.085/.105
Factory tuning:
1G,2D,3A,4E (E standard)

Images[]

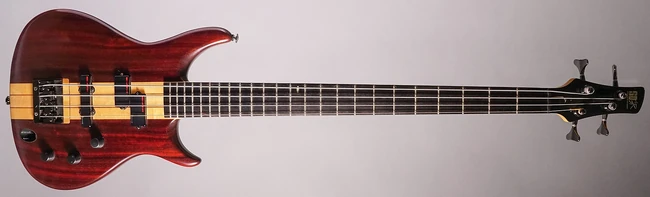

SR924PD
1989 Ibanez SR924PD ( Featuring: Cosmo black hardware & a pair of Ibanez "Regulated" LO-Z PJ passive pickups ) Red copyright sprite

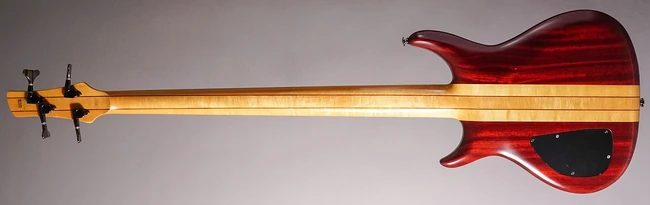

Ibanez-SR924PD rear
1989 Ibanez SR924QPD ( Rear: Neck-through-body construction on paduk wings body attached to a 5-piece maple/ walnut SR4 neck and Gotoh machine heads ) Red copyright sprite
