SR885LE-SR

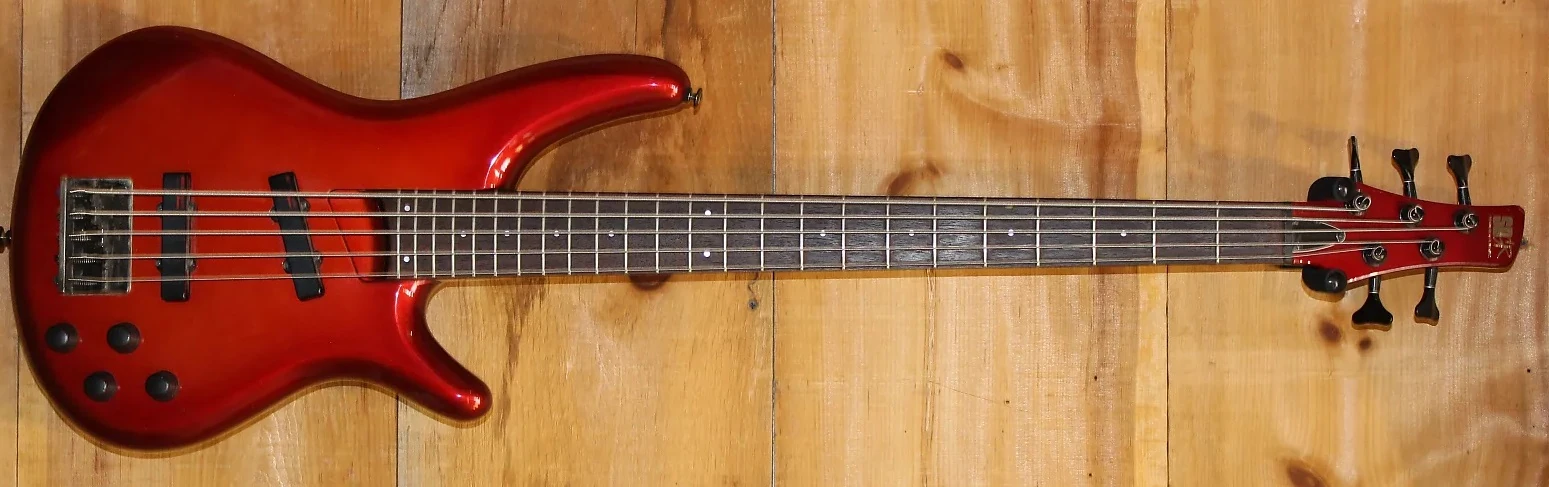

SR885LE Sunset Red (more images) Red copyright sprite

The SR885LE is a five string Soundgear series solid body electric bass model introduced by Ibanez for 1989. It was produced in Japan by FujiGen as part of the Standard line.

The SR885LE features a double-cutaway basswood body with arched top bolted to a laminated SR5 maple neck with a 24-fret rosewood fingerboard with pearl dot position markers and a matching headstock. Components include a special 5-strings fixed bridge with 16.5mm string spacing, and two Ibanez LO-Z (regulated) active pickup's channeled through a EQ BⅡ 2-band, a plastic nut and Gotoh tuning machines.

The SR885LEL is a left-handed version. The SR885SM is a related model with mahogany body and saman top. The SR800LE is a related four-string model.

The SR885LE was discontinued after 1990 and replaced by the very similar SR885.

Specifications[]

Related content: Soundgear series | Models-icon
Specifications for SR885LE
Model name: SR885LE
Year(s) offered: 1989–1990
Sold in: USA 1989 / Europe 1990 / Japan 1990
Made in: Japan
Price: MSRP: JP¥80,000 (1990)
Finish(es): Black (BK) 1990 Japan / Sunset Red (SR)
Body
Body type:
Solid
Body material:
Basswood
Neck joint:
AANJ
Bridge:
Special 5-string (16.5mm string spacing)
Knob style:
Rubber Tek Grip
Hardware color:
Black
Neck
Neck type:
SR5
Neck material:
3-piece maple
Scale length:
864mm / 34"
Fingerboard material:
Rosewood
Fingerboard inlays:
Pearl dot
Frets:
24 / medium
Nut:
Black plastic (45mm)
Machine heads:
Gotoh
Electronics/ Strings
Pickup configuration:
JJ
Bridge pickup:
1989: Ibanez Lo-Z active
1990: Ibanez Lo-J5 active
Neck pickup:
1989: Ibanez Lo-Z active
1990: Ibanez Lo-J5 active
Electronics:
EQ BⅡ 2-Band
Controls:
Single volume / balance / two-band EQ (bass & treble boost-cut)
Battery:
9V
Output jack:
¼" stereo (side mounted)
String gauge (factory):
.045/.065/.085/.105/.130
Factory tuning:
1G,2D,3A,4E,5B (E Standard)

Images[]

Additional finishes & details

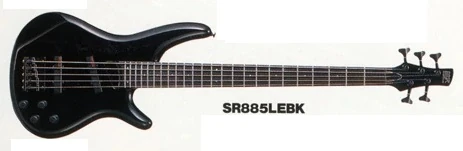

SR885LE-BK
Black
EQ BⅡ System
EQ BⅡ System / Frequency response chart
