For the more recent model with the same name, see SR800 (2013–2017).
1993 SR800-EG
SR800 Emerald Green (more images) Red copyright sprite

The SR800 is a Soundgear series solid body electric bass model introduced by Ibanez for 1990. It was made in Japan by FujiGen and replaced the very similar SR800LE.

The SR800 features a double cutaway light basswood body bolted to a maple neck with a 24-fret rosewood fingerboard with pearl dot position markers and a matching headstock. Components include Ibanez low-impedance pickups with a Lo-Z-P at the front and a Lo-Z-J at the bridge, an Accu-Cast B IV bridge, an EQ BⅡ equalizer, black hardware and Gotoh machine heads. Controls consist of a balancer, a volume, treble boost/cut, and bass boost/cut.

The SR800L is a left-handed version. The SR800F is a fretless version. The SR800A is a similar model with an ash body. The SR990QS is a related model with a quilted sapele top.

The SR800 was discontinued after 2003.

Specifications[]

Related content: Soundgear series | Models-icon
Specifications for SR800 (1990–2003)
Model name: SR800 (1990–2003)
Year(s) offered: 1990–2003
Sold in: Americas & Oceania / Asia & Africa / China / Europe / Japan / USA
Made in: Japan
Finish(es): Arctic Blue (AB) 1998–1999 / Black (BK) 1990–1999 / Candy Apple (CA) 1992 / Cayman Green (CG) 1994 / Cherry Fudge (CF) 1998–1999 / Dark Blue (DB) 1996–1997 / Dark Gray (DG) 1990 / Emerald Green (EG) 1993 / Grape Ice (GI) 1991 / Gray Nickel (GN) 1999–2003 / Iron Purple (IPP) 1998–1999 / Jade Metallic (JM) 1996–1997 / Jewel Blue (JB) 1990–1993 / Laser Blue (LB) 1992 / Metallic Blue (MB) 1997 / Royal Blue (RB) 1994 / Ruby Red (RR) 1990–1991, 1996 / Transparent Blue (TB) 1995 / Transparent Red (TR) 1995 / Transparent Turquoise (TT) 1995
Body
Body type:
Solid body
Body material:
1990: Basswood
1991: Basswood or ash
1992–1993: Basswood
1994: Basswood or resoncast
1995: Light American maple or basswood
1996–2003: Basswood
Neck joint:
AANJ
Bridge:
1990–1997 : AccuCast-B IV
1998-2003: Accu-cast B20 fixed (19mm string spacing)
Knob style:
1990–1992: Beehive
1993–2003: 2 Rubber knobs, 2 Plastic concentric (Black)
Hardware color:
Black
Neck
Neck type:
SR4
Neck material:
1990 : 3-piece maple painted
1991–1992: 3-piece maple or 5-piece maple
1993–1999: 3-piece maple
2000–2003 : 5-piece maple/ bubinga painted
Scale length:
864mm / 34"
Fingerboard material:
Rosewood
Radius: 305mm
Fingerboard inlays:
Pearl dot
Frets:
24 / medium
Nut:
Plastic (38mm)
Machine heads:
Gotoh
Electronics/ Strings
Bridge pickup:
1990–1991 : Ibanez Lo-Z-P passive
1992–2003 : Ibanez AFR-P
Neck pickup:
1990–1991 : Ibanez Lo-Z-J passive
1992–2003 : Ibanez AFR-J
Electronics:
1990–1992: EQ BⅡ
1993–2003: Vari-Mid 3-band
Controls:
1990–1992 : Single volume / balance / two-band EQ (bass & treble boost-cut)
1993–2003: Master volume / pickup balancer / 3-band EQ (bass/mid/treble) / mid frequency control
Output jack:
¼" mono (side mounted)
Factory tuning:
1G,2D,3A,4E (E standard)

Images[]

1993 SR800-EG rear
1993 Ibanez SR800 Emerald Green ( Rear: Basswood body bolted to a 3-piece maple SR4 painted neck and Gotoh tuning machines ) Red copyright sprite
Other finishes

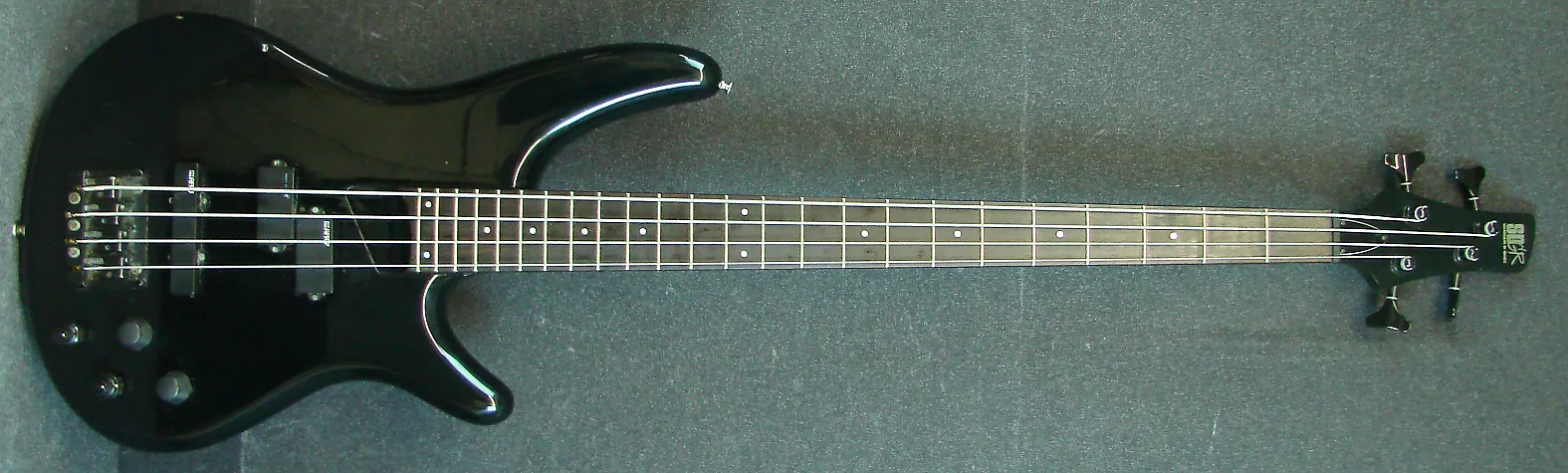

SR800 (1998)
Black "1998"

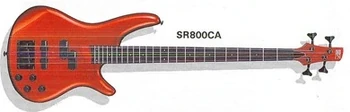

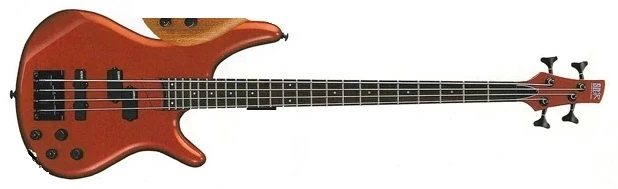

1992 SR800-CA
Candy Apple

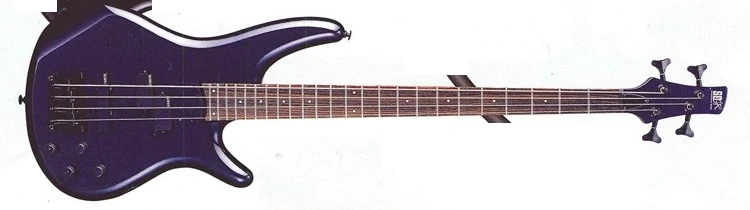

1997 SR800-DB
Dark Blue

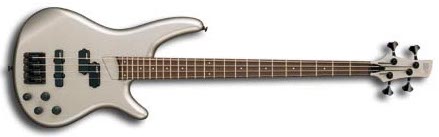

2003 SR800 GN 00 02
Gray Nickel

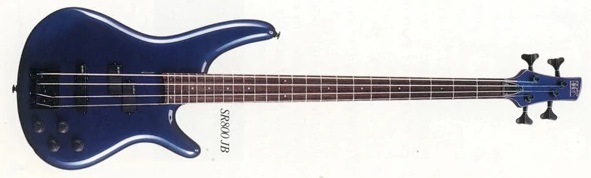

1992 SR800-JB
Jewel Blue

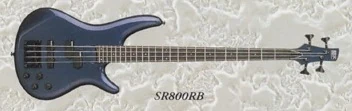

1994 SR800-RB
Royal Blue
1996 SR800-RR
Ruby Red
Additional details
EQ BⅡ System
EQ BⅡ System (1990–1992)
SR800 top

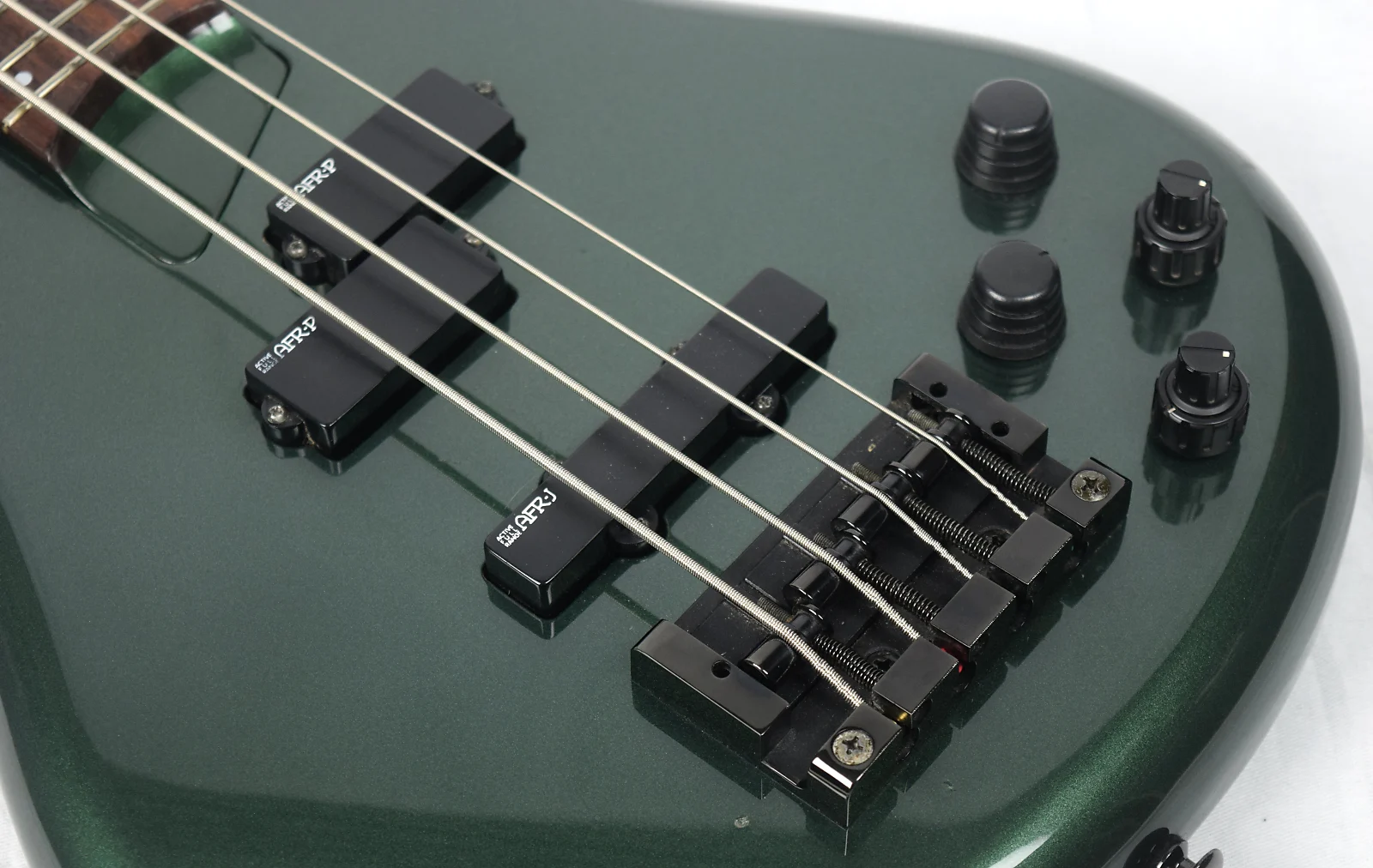

Ibanez AFR pickups (1992–2003)
