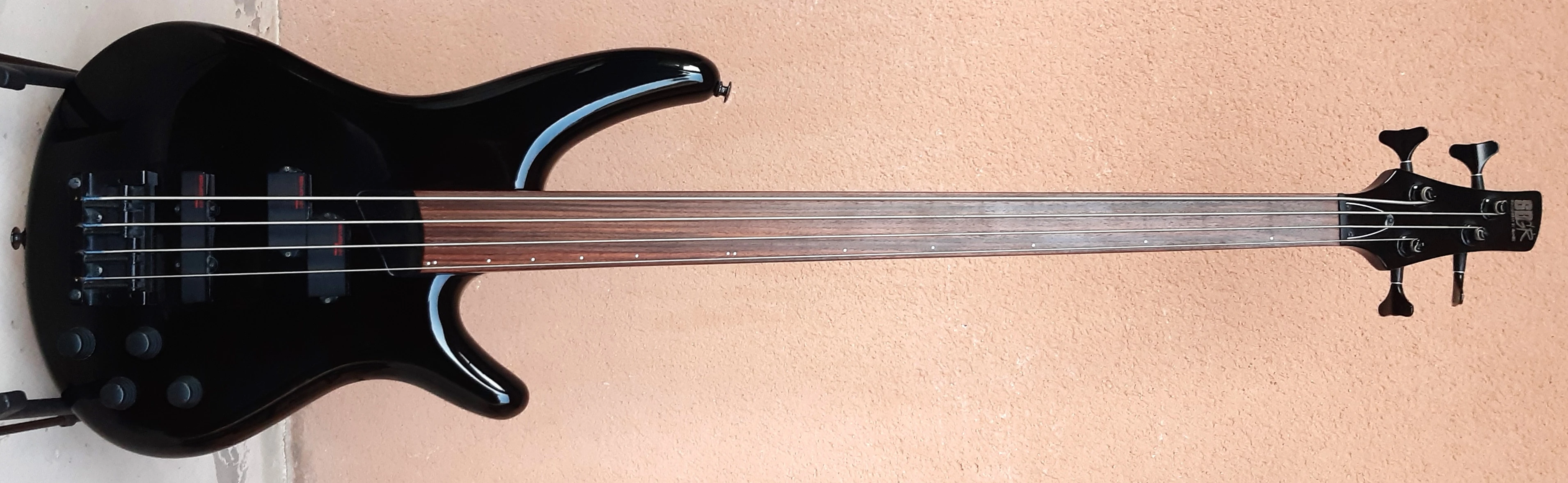

1991 SR800F-BK
SR800F Black (more images) Red copyright sprite

The SR800F is a fretless Soundgear series solid body electric bass model introduced by Ibanez for 1990. It was produced in Japan by FujiGen as part of the Standard line.

The SR800F features a double-cutaway basswood body bolted to a maple neck with a 24-fret rosewood fretless fingerboard and a matching headstock. Components include a Omni Adjust fixed bridge with 19mm string spacing, and a pair of Ibanez Lo-Z-P/J pickup's chanelled to a EQ BⅡ 2 band equalizer, a plastic nut, black hardware and gotoh tuning machines.

The SR800LEF is a similar model. The SR800LEL is a left-handed version. The SR885LE is a related five-string model.

The SR800F was discontinued after 1992.

Specifications[]

Related content: Soundgear series | Models-icon
Specifications for SR800F
Model name: SR800F
Year(s) offered: 1990–1992
Sold in: Japan 1990 / Europe 1991 / USA 1992
Made in: Japan
Price: MSRP: JP¥ 78,000 (1990)
Finish(es): Black (BK) / Ruby Red (RR) 1991; Europe only
Body
Body type:
Solid body
Body material:
Basswood
Neck joint:
AANJ
Bridge:
1990: Omni Adjust (fixed)
1991–1992: Accu-cast BIV (fixed) (19mm string spacing)
Knob style:
Beehive (black)
Hardware color:
Black
Neck
Neck type:
SR4
Neck material:
1990–1991: 3-piece maple painted
1992: 5-piece maple USA
Scale length:
864mm / 34"
Fingerboard material:
Rosewood
Fingerboard inlays:
none
Frets:
24 / medium
Nut:
Black plastic (43mm)
Machine heads:
Gotoh
Electronics/ Strings
Pickup configuration:
PJ
Bridge pickup:
1990: Ibanez Lo-Z-J
1991: Ibanez Lo-J active
1992: Ibanez AFR-J
Neck pickup:
1990: Ibanez Lo-Z-P
1991': Ibanez Lo-P active
1992: Ibanez AFR-P
Electronics:
EQ BⅡ
Controls:
Single volume / balance / two-band EQ (bass & treble boost-cut)
Output jack:
¼" mono (side mounted)
String gauge (factory):
.045/.065/.085/.105
Factory tuning:
1G,2D,3A,4E (E standard)

Images[]

Additional details
EQ BⅡ System
EQ BⅡ / Frequency response chart
Wimage An image for this article is missing!
An image of the SR800F Ruby Red (RR) is wanted for this article. You can help by finding, uploading and adding it!
