SR800A

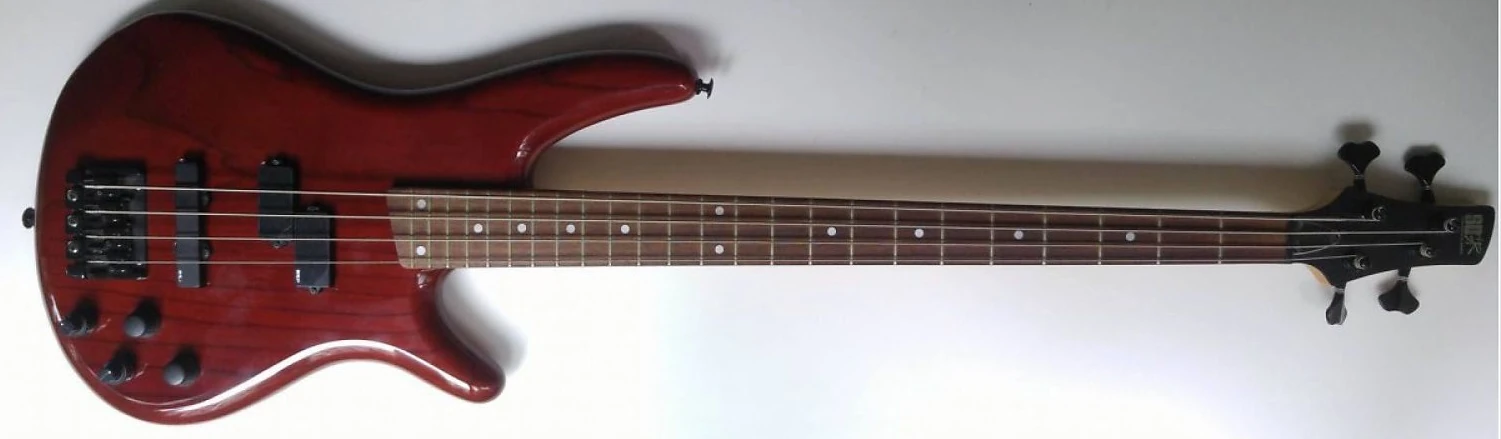

SR800A Transparent Cherry

The SR800A is a Soundgear series solid body electric bass model introduced by Ibanez for 1998. It was made in Japan.

The SR800A features a double cutaway light ash body bolted to a maple neck with a matching headstock and a 24-fret rosewood fingerboard with pearl dot position markers. Components included a pair of IBZ AFR J/P pickups, an Accu-cast B20 fixed bridge, and black hardware. Controls consist of a volume, balance, treble boost/cut, bass boost/cut, mid range boost/cut, mid range frequency control and a Vari-Mid 3-Band equalizer.

For 1999 the body was changed to ash.

The SR800 is a similar model with (mostly) a basswood body.

The SR800A was discontinued after 1999.

Specifications

Related content: Soundgear series |

Specifications for SR800A

Model name: SR800A Year(s) offered: 1998–1999 Sold in: USA Made in: Japan Finish(es): Amber (AM) / Transparent Black (TK) 1998 / Transparent Cherry (TC) 1999 / Transparent Light Blue (TLB) 1999
Body Body type: Solid body Body material: 1998: Light ash 1999: Ash Neck joint: AANJ Bridge: Accu-cast B20 fixed (19mm string spacing) Knob style: 2 rubber knobs, 2 plastic concentric: Hardware color: Cosmo black	Neck Neck type: SR4 Neck material: 3-piece maple Scale length: 864mm / 34" Fingerboard material: Rosewood Fingerboard inlays: Pearl dot Frets: 24 / medium	Electronics/ Strings Bridge pickup: Ibanez AFR-P Neck pickup: Ibanez AFR-J Electronics: Vari-Mid 3-band Controls: Volume, balance, treble boost/cut, bass boost/cut, mid range boost/cut, mid range frequency Output jack: ¼" stereo barrel (angled top mount) Factory tuning: 1G,2D,3A,4E (E standard)

About this table

Sources

• 1998 World catalog (pp. 28–29)
• SR800A specs, Ibanez USA, archived May 1999
• 1999 USA catalog (p. 35)
