For the earlier model with the same name, see SR756 (2012–2014).

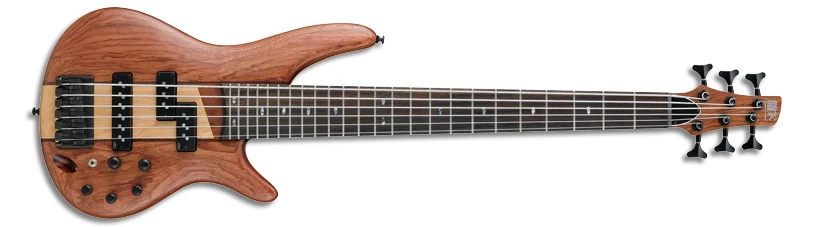

2017 SR756 NTF 1P 03
SR756 Natural Flat Red copyright sprite

The SR756 is a six string Soundgear series solid body electric bass model introduced by Ibanez for 2008. It was produced in Indonesia as part of the Standard line and replaced another model with the same name.

This SR756 features a bubinga top on a double-cutaway maple body bolted to a jatoba and bubinga neck with a 24-fret rosewood fingerboard with abalone oval position markers and a matching headstock. Components include a pair of Nordstrand Carey Nordstrand Design (CND) pickups with a P-style split-coil at the neck and a J-style single-coil at the bridge, an Accu-cast B306 solid bridge with 16.5mm string spacing, an EQB-IIIS 3-band EQ with bypass, and Ibanez die-cast tuning machines. Controls consist of a volume; balancer; treble, bass, and mid boost/cut; and an EQ bypass toggle.

The SR750 and SR755 are four string and five string versions.

The SR756 was discontinued after 2017.

Specifications[]

Related content: Soundgear series | Models-icon
Specifications for SR756 (2015–2017)
Model name: SR756 (2015–2017)
Year(s) offered: 2015–2017
Sold in: Americas & Oceania 2015–2016 / Asia & Africa 2015 / Europe 2015–2016 / Japan 2015–2016 / USA
Made in: Indonesia
Price: MSRP: ¥145,000 (2015–2016) / US$1,266.65 (2015)
Finish(es): Natural Flat (NTF)
Body
Body type:
Solid body
Body material:
Maple w/ bubinga top
Neck joint:
AANJ
Bridge:
Accu-cast B306 (16.5mm string spacing)
Knob style:
Knurled metal dome
Hardware color:
Black matte
Neck
Neck type:
SR6
Neck material:
5-piece jatoba/ bubinga
Scale length:
864mm / 34"
Fingerboard material:
Rosewood
Fingerboard inlays:
Abalone oval
Frets:
24 / medium
Nut:
Plastic (black) (54mm)
Machine heads:
Ibanez die-cast
Electronics/ Strings
Pickup configuration:
JP
Bridge pickup:
Nordstrand CND J-6
Neck pickup:
Nordstrand CND P-6
Electronics:
Ibanez Custom Electronics 3-band EQ w/ bypass
Controls:
Volume, balance, treble boost/cut, bass boost/cut, mid boost/cut, EQ bypass toggle
Battery:
9V
Output jack:
¼" stereo barrel (angled face mount)
String gauge (factory):
.032/.045/.065/.080/.100/.130
Factory tuning:
1C,2G,3D,4A,5E,6B (B Std.)

Images[]

Additional finishes/ details

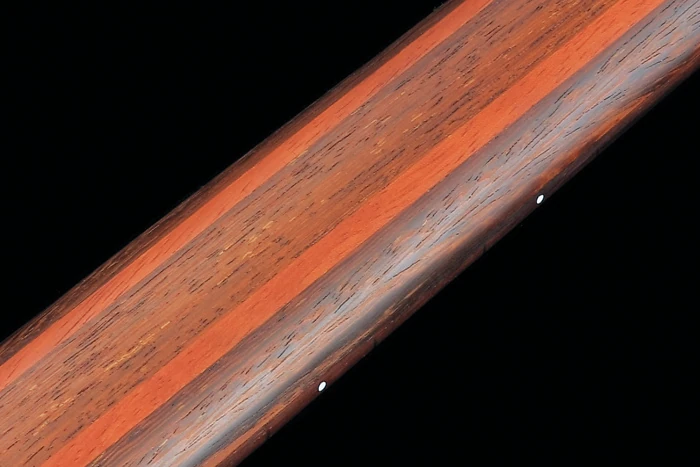

SR800 jatoba-bubinga-neck
Jatoba & bubinga neck
Controls-layout 3-band-passive-tone
Controls layout
SR-Prestige frequency response charts
EQ frequency response
