SR755 (2008–2014)

For other models with the same name, see SR755 (disambiguation).

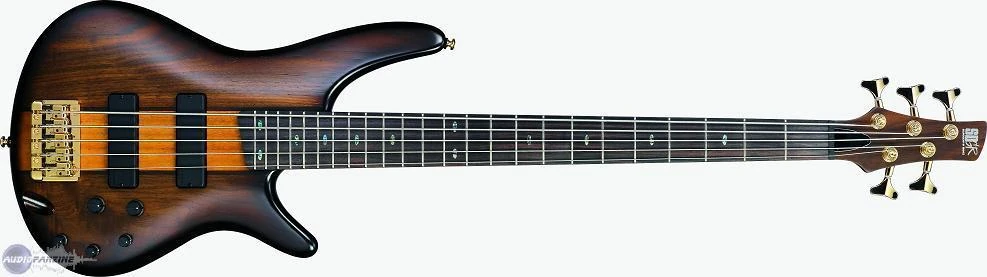

SR755 Brown Sunburst Flat (more images)

The SR755 is a five string Soundgear series solid body electric bass model introduced by Ibanez for 2008. It was produced in Indonesia as part of the Standard line.

The SR755 features a double-cutaway mahogany wings body with walnut top bolted to a SR5 jatoba and bubinga neck with a 24-fret rosewood fingerboard with abalone oval position markers and a matching headstock. Components include a pair of Bartolini MK1-5 passive pickups with a Bartolini MK1 preamp with a 3-band EQ, an Accu-cast B25 fixed bridge with 16.5mm string spacing, a plastic nut, gold hardware and Ibanez die-cast tuning machine

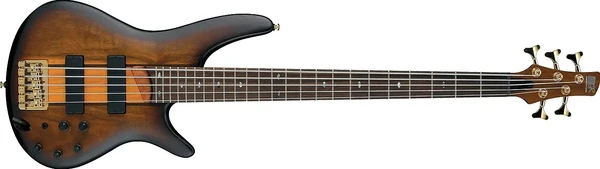

For 2010 the preamp was changed to an Ibanez EQB-IIIS with 3-band EQ and 2-way mid-frequency selector and the bridge was changed to an Accu-cast B305.

The SR750 and SR756 are similar four and six string models.

The SR755 was discontinued after 2014.

Specifications[]

Related content: Soundgear series |

Specifications for SR755

Model name: SR755

Year(s) offered: 2008–2014

Sold in: USA

Made in: Indonesia

Price: MSRP: US$1,066.65 (2008)^[1] / US$1,133.32 (2013)^[2]

Finish(es): Brown Sunburst Flat (BSF)

Body

Body type:
Solid body

Body material:
Mahogany w/ walnut top

Neck joint:
AANJ

Bridge:
2008–2011: Accu-cast B25
2012–2014: Accu-cast B305 (16.5mm string spacing)

Knob style:
Plastic black

Hardware color:
Gold

Neck

Neck type:
SR5

Neck material:
5-piece jatoba/ bubinga

Scale length:
864mm / 34"

Fingerboard material:
Rosewood

Fingerboard inlays:
Abalone ovals

Frets:
24 / medium

Nut:
Black plastic (45mm)

Machine heads:
Die-cast

String gauge (factory):
.045/.065/.085/.105/.130

Factory tuning:
1G,2D,3A,4E,5B (E Standard)

Electronics

Pickup configuration:
HH

Bridge pickup:
Bartolini MK1-5 bridge passive

Neck pickup:
Bartolini MK1-5 neck passive

Electronics:
2008–2009: Bartolini MK1 3-band EQ
2010–2014: Ibanez EQB IIIS 3-band EQ w/ 2-way mid-frequency toggle

Controls:
2008–2009: Master volume, balance, 3-band EQ (treble, mid, and bass, boost/cut)
2010–2014: Master volume / balancer / 3-band EQ (treble, mid, and bass, boost/cut) / 2-way mid-frequency selector

Battery:
9V

Output jack:
¼" stereo (side mounted)
