For other models with the same name, see SR750 (disambiguation).

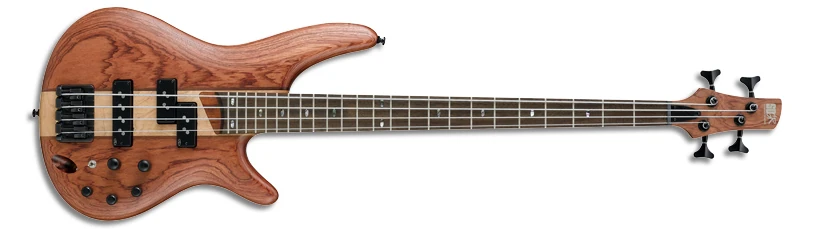

2017 SR750 NTF 1P 07
SR750 Natural Flat Red copyright sprite

The SR750 is a Soundgear series solid body electric bass model introduced by Ibanez for 2008. It was produced in Indonesia as part of the Standard line and replaced another model with the same name.

This SR750 features a bubinga top on a double-cutaway maple body bolted to a jatoba and bubinga neck with a 24-fret rosewood fingerboard with abalone oval position markers and a matching headstock. Components include a pair Nordstrand pickups with a P-style split-coil at the neck and a J-style single-coil at the bridge, an Accu-cast B300 solid bridge with 19mm string spacing, an EQB-IIIS 3-band EQ with bypass, and Ibanez die-cast tuning machines. Controls consist of a volume; balancer; treble, bass, and mid boost/cut; and an EQ bypass toggle.

The SR755 and SR756 are five string and six string versions.

The SR750 was discontinued after 2017.

Specifications[]

Related content: Soundgear series | Models-icon
Specifications for SR750 (2015–2017)
Model name: SR750 (2015–2017)
Year(s) offered: 2015–2017
Sold in: Americas & Oceania 2015–2016 / Asia & Africa 2015 / Europe 2015–2016 / Japan 2015–2016 / USA
Made in: Indonesia
Price: MSRP: ¥125,000 (2016)
Finish(es): Natural Flat (NTF)
Body
Body type:
Solid body
Body material:
Maple w/ bubinga top
Neck joint:
AANJ
Bridge:
Accu-cast B300 (19mm string spacing)
Knob style:
Knurled metal dome
Hardware color:
Black matte
Neck
Neck type:
SR4
Neck material:
5-piece jatoba/ bubinga
Scale length:
864mm / 34"
Fingerboard material:
Rosewood
Fingerboard inlays:
Abalone oval
Frets:
24 / medium
Nut:
Plastic (black) (38mm)
Machine heads:
Ibanez die-cast
Electronics/ Strings
Pickup configuration:
JP
Bridge pickup:
Nordstrand CND J
Neck pickup:
Nordstrand CND P
Electronics:
Ibanez Custom Electronics 3-band EQ w/ bypass
Controls:
Volume, balance, treble boost/cut, bass boost/cut, mid boost/cut, EQ bypass toggle
Battery:
9V
Output jack:
¼" stereo barrel (angled face mount)
String gauge (factory):
.045/.065/.085/.105
Factory tuning:
1G,2D,3A,4E (E standard)

Images[]

Additional finishes/ details

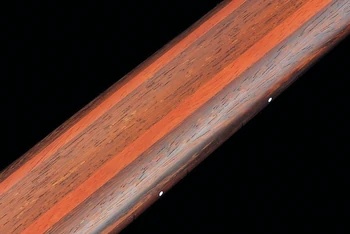

SR800 jatoba-bubinga-neck
Jatoba & bubinga neck

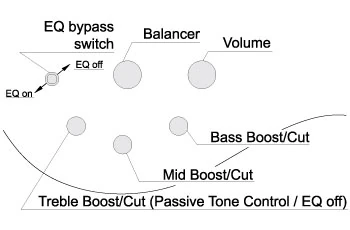

Controls-layout 3-band-passive-tone
Controls layout
SR-Prestige frequency response charts
EQ frequency response
